System Description
>>
Structure And Operation
>>
Cross-Sectional View
>>
AWD Models
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
AWD Models

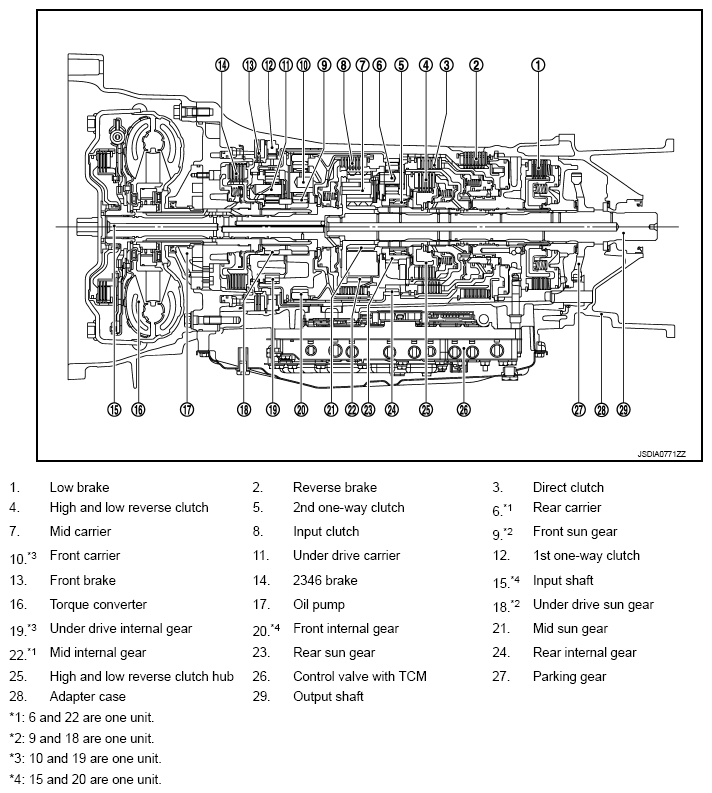

Fig 1: Cross-Sectional View Of Transmission Assembly (AWD Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
