Exploded View

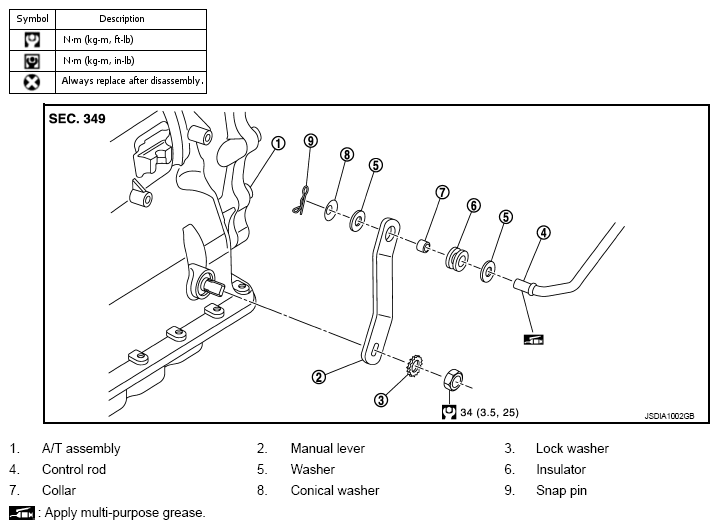

Fig 1: Exploded View Of Control Rod With Torque Specifications
G07018795Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
