2WD : Exploded View

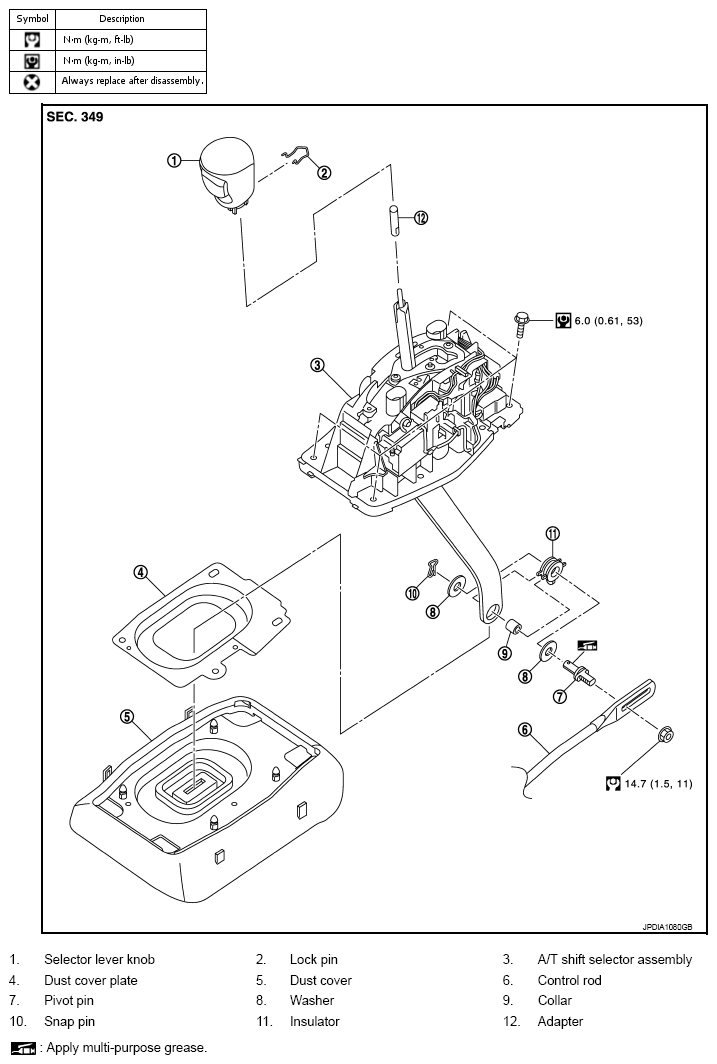

Fig 1: Exploded View Of A/T Shift Selector With Torque Specifications (2WD)
G07018790Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
