Operation And Display

WARNING: This page is about a different car, the 2011 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Plasmacluster™ ion display

Plasmacluster™ control state is indicated on the front display.
Plasmacluster ™ ion display is switched as shown in the figure depending on air flow.
NOTE:
- Plasmacluster™ ion technology developed by Sharp Corporation is installed in this item.
- Plasmacluster™ is a trademark of Sharp Corporation.
- When air flow is small

  Fig 1: Screen Display - Clean
  Courtesy of NISSAN MOTOR CO., U.S.A.
- When air flow is large

  Fig 2: Screen Display - Quick Clean
  Courtesy of NISSAN MOTOR CO., U.S.A.

Controller (Preset Switch)

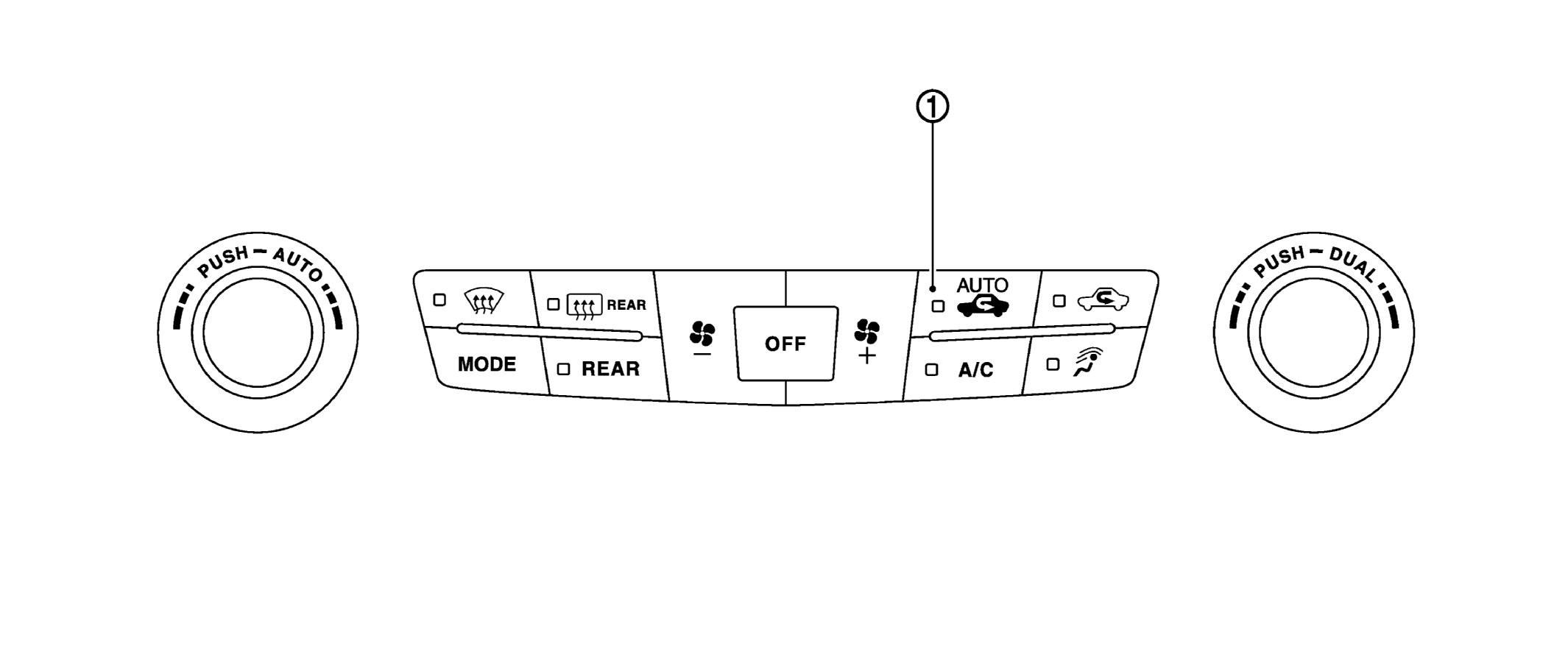

Fig 3: Identifying Control Switches

Courtesy of NISSAN MOTOR CO., U.S.A.

Auto intake switch

SWITCH OPERATION

Switch name	Function
Auto intake switch	Automatic intake control (exhaust gas / outside odor detecting mechanism) mode (switch indicator) changes between ON <=> OFF each time when auto intake switch is pressed while front blower motor is activated. When auto intake switch turns ON, front air conditioning system becomes the following status. A/C switch: ON Air inlet: Recirculation [After approximately 5 minutes, air inlet is switched to automatic intake control (exhaust gas / outside odor detecting mechanism).] When auto intake switch turns ON <=> OFF, air inlet becomes the fresh air intake. NOTE: Interlocking condition of A/C switch can be changed. Refer to "ACCS (ADVANCED CLIMATE CONTROL SYSTEM) : AUTO INTAKE SWITCH INTERLOCKING MOVEMENT CHANGE FUNCTION ". Auto intake switch does not turn ON during the following status. Air outlet: DEF Ambient temperature: -2°C (28°F) or less

Switch name

Function

Auto intake switch

Automatic intake control (exhaust gas / outside odor detecting mechanism) mode (switch indicator) changes between ON <=> OFF each time when auto intake switch is pressed while front blower motor is activated.
When auto intake switch turns ON, front air conditioning system becomes the following status.
- A/C switch: ON
- Air inlet: Recirculation [After approximately 5 minutes, air inlet is switched to automatic intake control (exhaust gas / outside odor detecting mechanism).]
When auto intake switch turns ON <=> OFF, air inlet becomes the fresh air intake.

NOTE:

Interlocking condition of A/C switch can be changed. Refer to "ACCS (ADVANCED CLIMATE CONTROL SYSTEM) : AUTO INTAKE SWITCH INTERLOCKING MOVEMENT CHANGE FUNCTION ".
Auto intake switch does not turn ON during the following status.
- Air outlet: DEF
- Ambient temperature: -2°C (28°F) or less
