Front Blower Motor

WARNING: This page is about a different car, the 2011 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

The front blower motor utilizes a brush-less motor with a rotating magnet. Quietness is improved comparing to a conventional motor (brush motor) that rotates coil while brush functions as contact points.

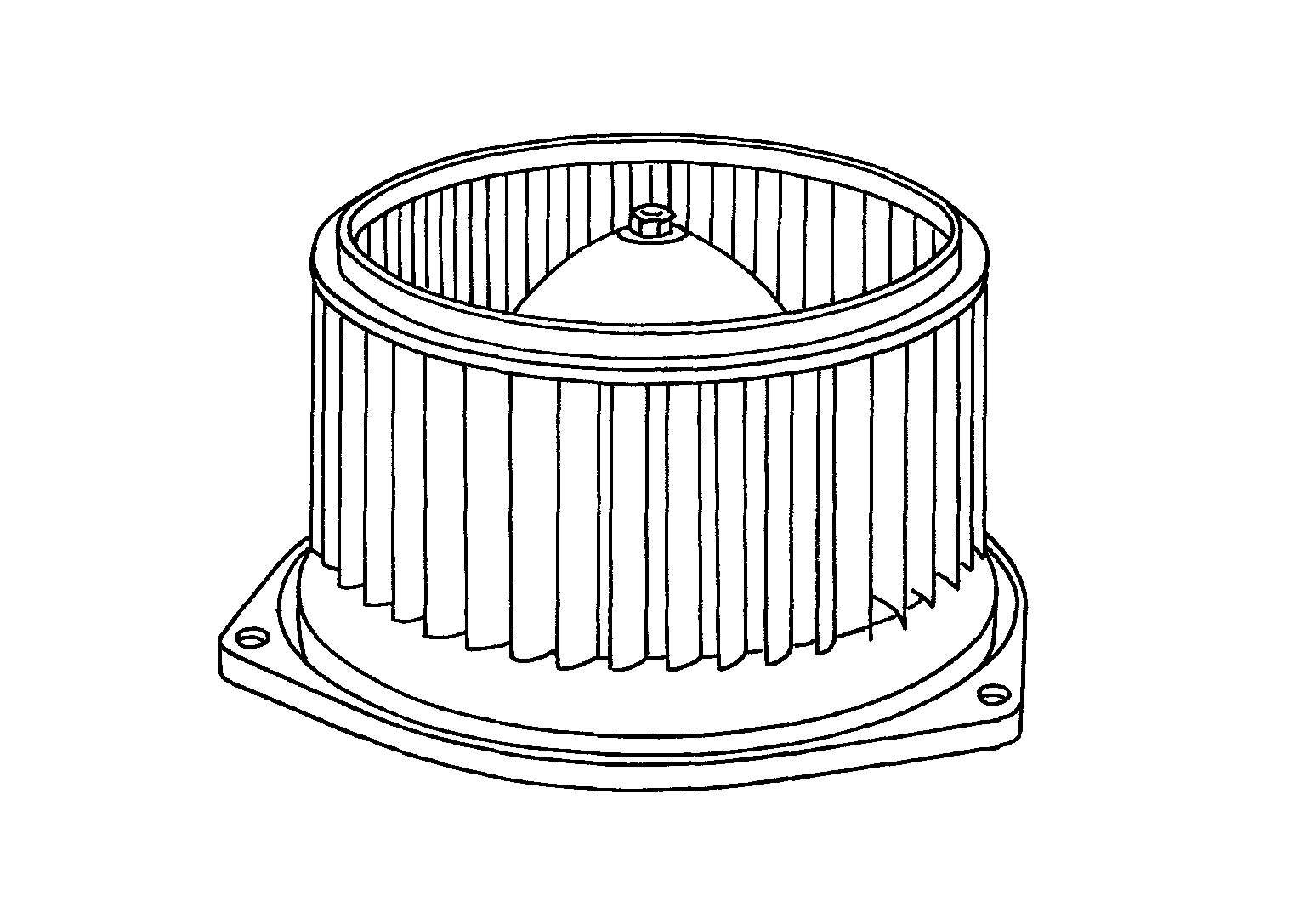

Fig 1: Identifying Front Blower Motor

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Brush-Less Motor Function Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
