Glass & Window System -- M37/M56
>>
Removal And Installation
>>
Rear Regulator
>>
Exploded View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Exploded View

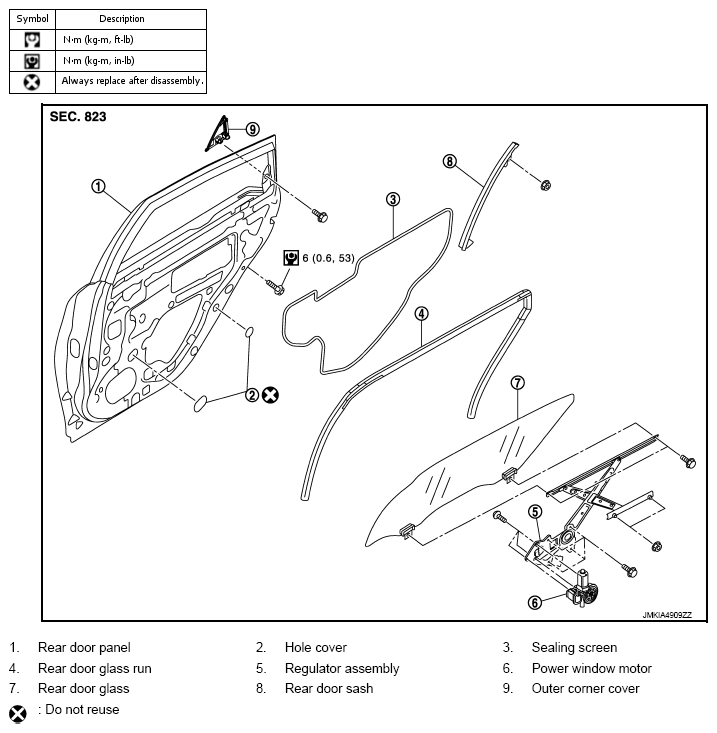

Fig 1: Exploded View Of Rear Regulator With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
