Combination Switch Matrix
WARNING: This page is about a different variant/trim than selected.
NOTE:
- *1: TAIL LAMP switch links lighting switch 1ST position.
- *2: "FR WIP INT/AT" is FR WIPER INT/AUTO.

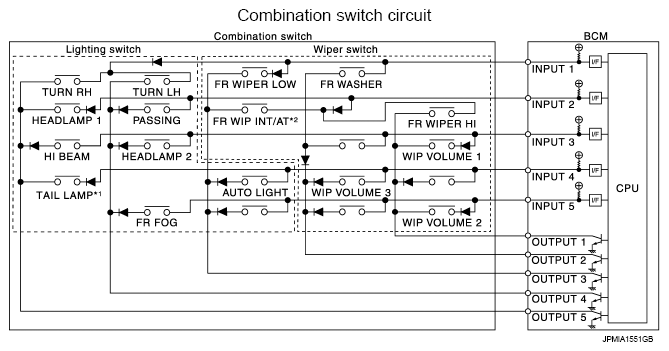

Combination switch INPUT-OUTPUT system list
COMBINATION SWITCH INPUT-OUTPUT SYSTEM CHART
| System | OUTPUT 1 | OUTPUT 2 | OUTPUT 3 | OUTPUT 4 | OUTPUT 5 |
|---|---|---|---|---|---|
| INPUT 1 | - | FR WASHER | FR WIPER LOW | TURN LH | TURN RH |
| INPUT 2 | FR WIPER HI | - | FR WIPER INT/AUTO | PASSING | HEADLAMP 1 |
| INPUT 3 | WIP VOLUME 1 | - | - | HEADLAMP 2 | HI BEAM |
| INPUT 4 | - | WIP VOLUME 3 | AUTO LIGHT | - | TAIL LAMP |
| INPUT 5 | WIP VOLUME 2 | - | - | FR FOG | - |
NOTE:
Headlamp has a dual system switch.
