Engine Control System (VK50VE) - FX50 - Diagnostic Introduction & DTC Index
>>
System Description
>>
Engine Control System
>>
Component Parts Location
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Component Parts Location

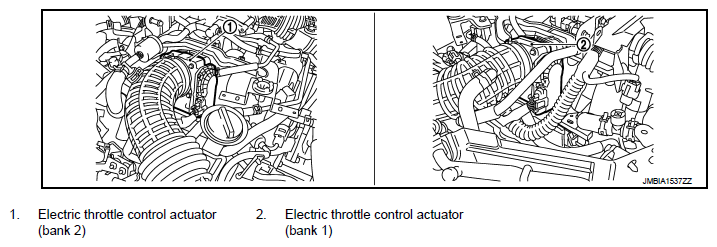

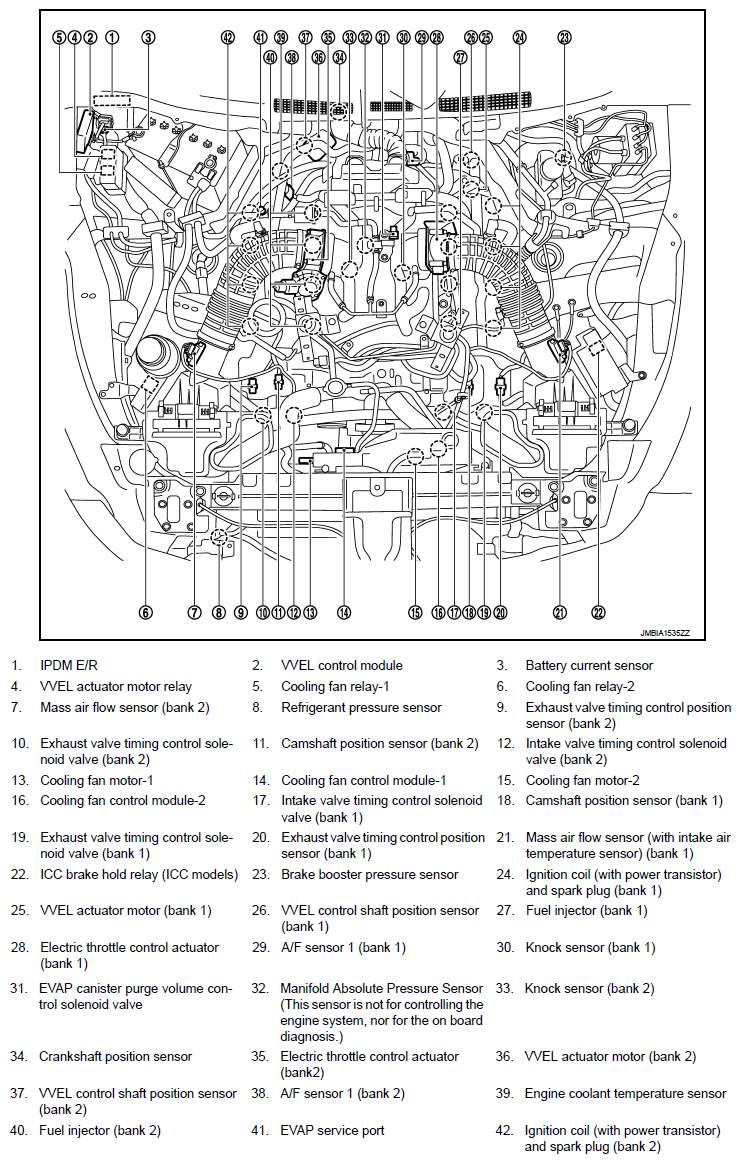

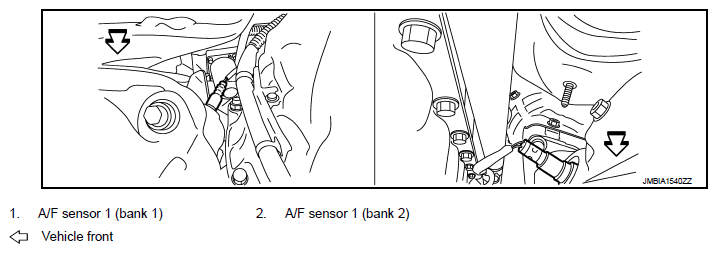

Fig 1: Identifying Engine Control System Parts Location (1 Of 25)
Courtesy of NISSAN MOTOR CO., U.S.A.

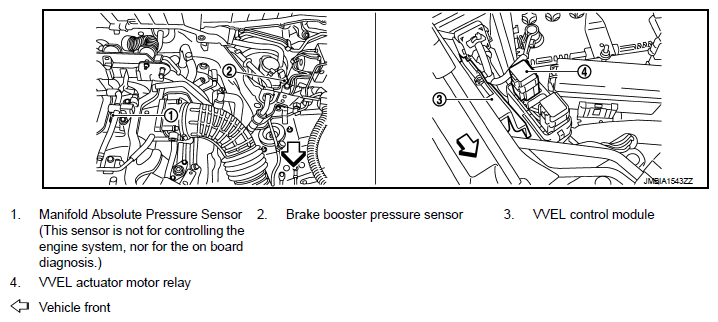

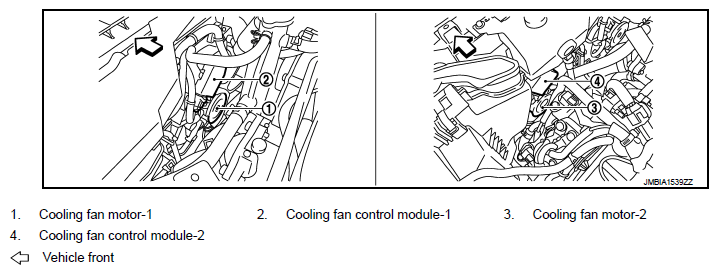

Fig 2: Identifying Engine Control System Parts Location (2 Of 25)
Courtesy of NISSAN MOTOR CO., U.S.A.

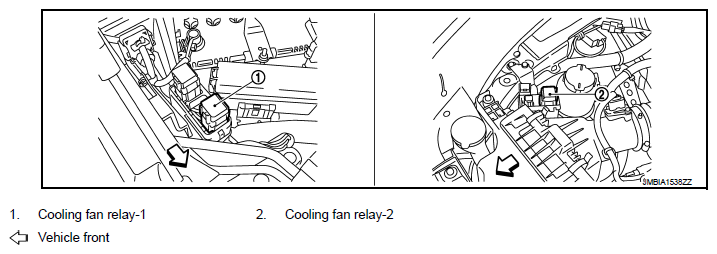

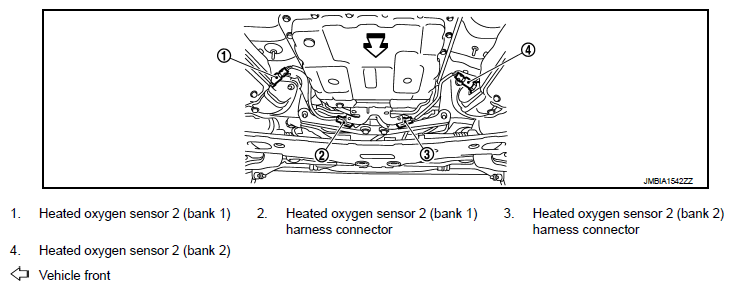

Fig 3: Identifying Engine Control System Parts Location (3 Of 25)
Courtesy of NISSAN MOTOR CO., U.S.A.

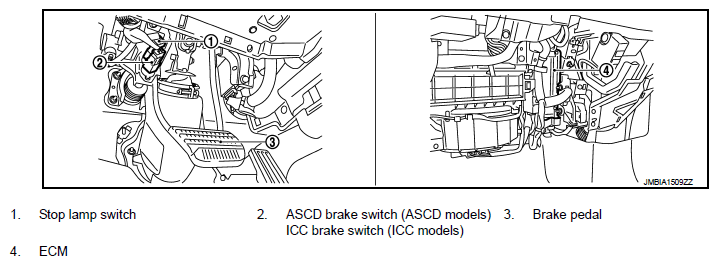

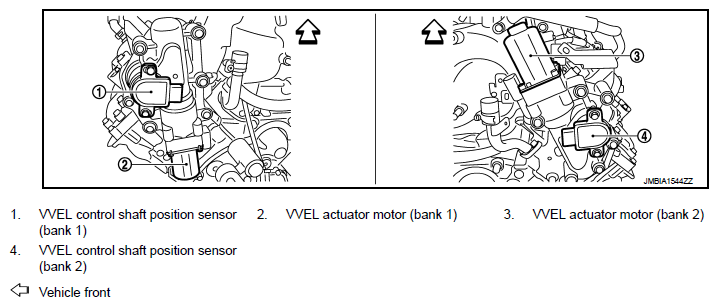

Fig 4: Identifying Engine Control System Parts Location (4 Of 25)
Courtesy of NISSAN MOTOR CO., U.S.A.

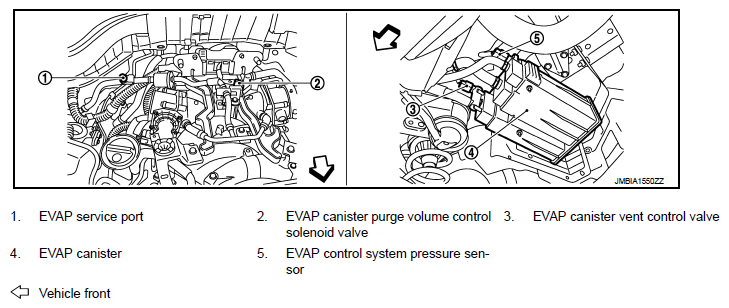

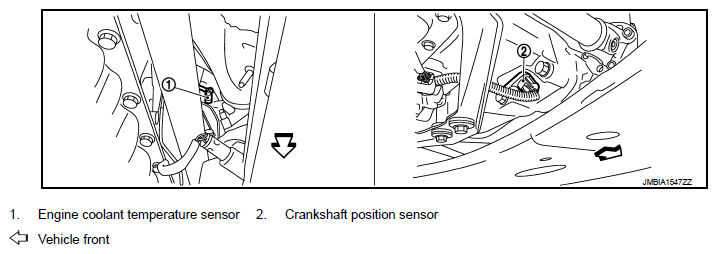

Fig 5: Identifying Engine Control System Parts Location (5 Of 25)
Courtesy of NISSAN MOTOR CO., U.S.A.

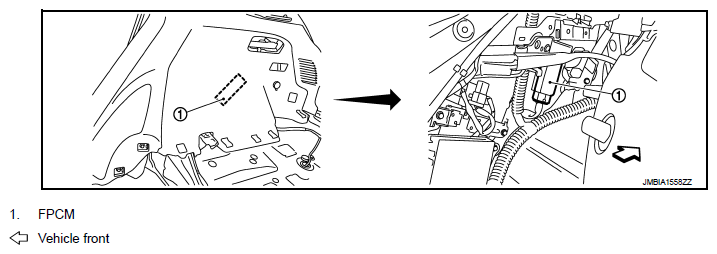

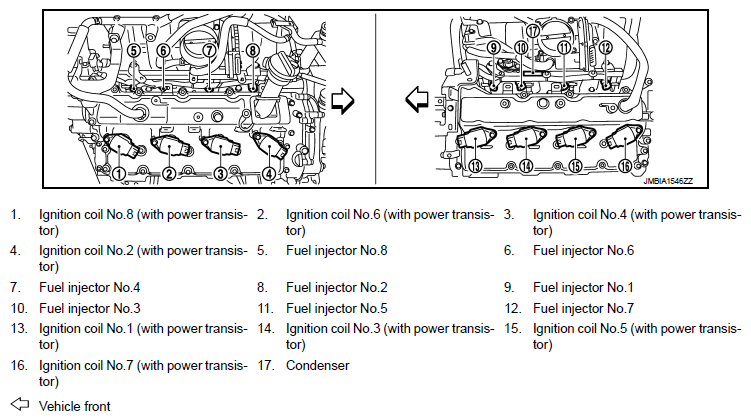

Fig 6: Identifying Engine Control System Parts Location (6 Of 25)
Courtesy of NISSAN MOTOR CO., U.S.A.

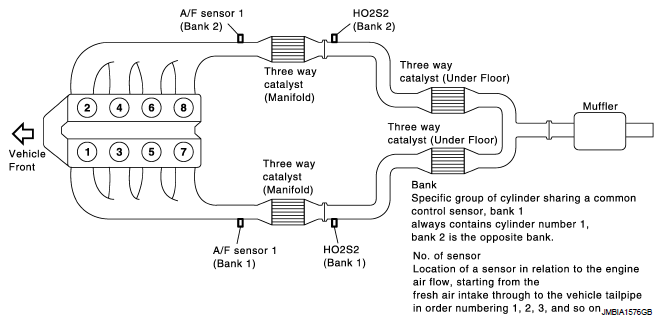

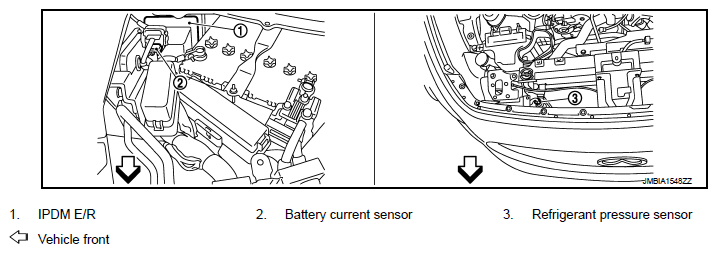

Fig 7: Identifying Engine Control System Parts Location (7 Of 25)
Courtesy of NISSAN MOTOR CO., U.S.A.

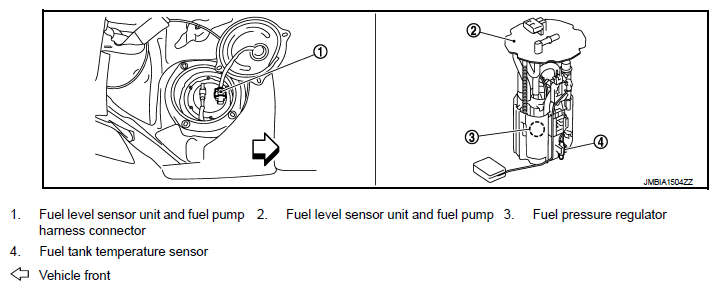

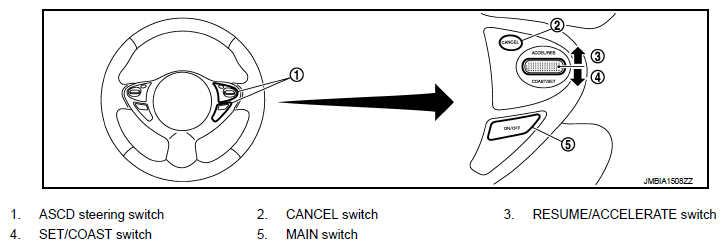

Fig 8: Identifying Engine Control System Parts Location (8 Of 25)
Courtesy of NISSAN MOTOR CO., U.S.A.

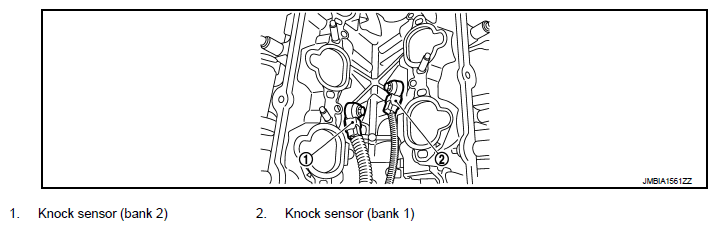

Fig 9: Identifying Engine Control System Parts Location (9 Of 25)
Courtesy of NISSAN MOTOR CO., U.S.A.

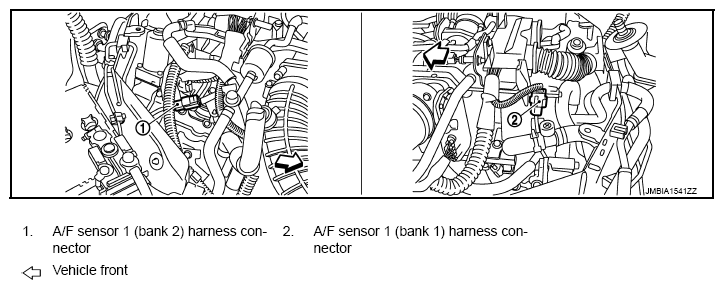

Fig 10: Identifying Engine Control System Parts Location (10 Of 25)
Courtesy of NISSAN MOTOR CO., U.S.A.

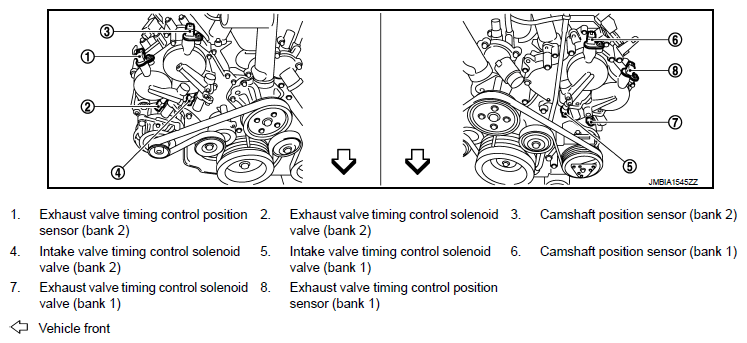

Fig 11: Identifying Engine Control System Parts Location (11 Of 25)
Courtesy of NISSAN MOTOR CO., U.S.A.

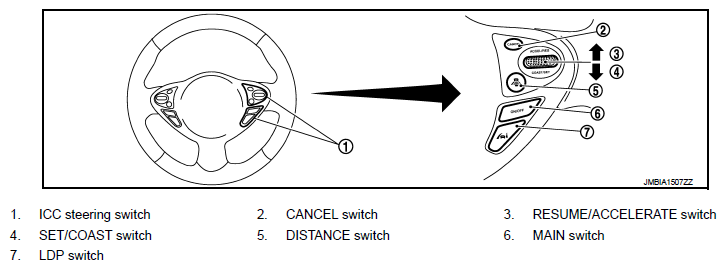

Fig 12: Identifying Engine Control System Parts Location (12 Of 25)
Courtesy of NISSAN MOTOR CO., U.S.A.

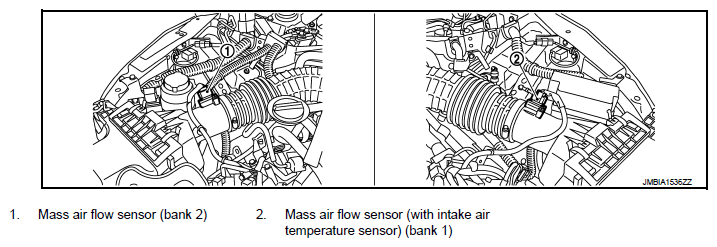

Fig 13: Identifying Engine Control System Parts Location (13 Of 25)
Courtesy of NISSAN MOTOR CO., U.S.A.

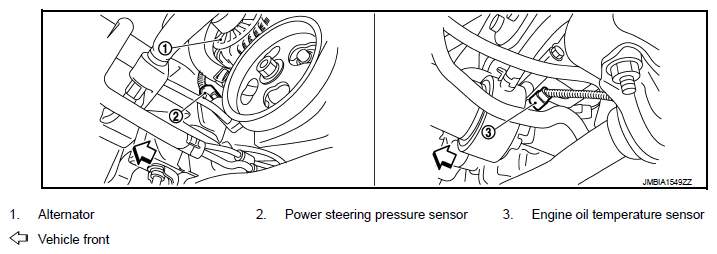

Fig 14: Identifying Engine Control System Parts Location (14 Of 25)
Courtesy of NISSAN MOTOR CO., U.S.A.

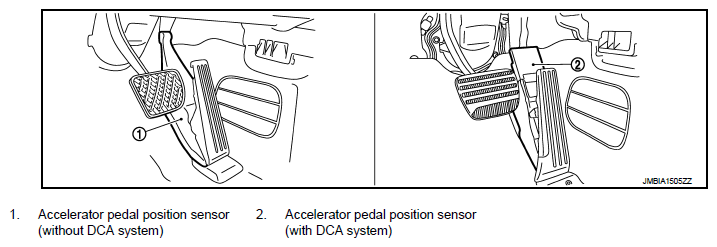

Fig 15: Identifying Engine Control System Parts Location (15 Of 25)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 16: Identifying Engine Control System Parts Location (16 Of 25)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 17: Identifying Engine Control System Parts Location (17 Of 25)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 18: Identifying Engine Control System Parts Location (18 Of 25)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 19: Identifying Engine Control System Parts Location (19 Of 25)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 20: Identifying Engine Control System Parts Location (20 Of 25)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 21: Identifying Engine Control System Parts Location (21 Of 25)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 22: Identifying Engine Control System Parts Location (22 Of 25)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 23: Identifying Engine Control System Parts Location (23 Of 25)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 24: Identifying Engine Control System Parts Location (24 Of 25)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 25: Identifying Engine Control System Parts Location (25 Of 25)
Courtesy of NISSAN MOTOR CO., U.S.A.
