Intake Sensor Connector End View (M77)

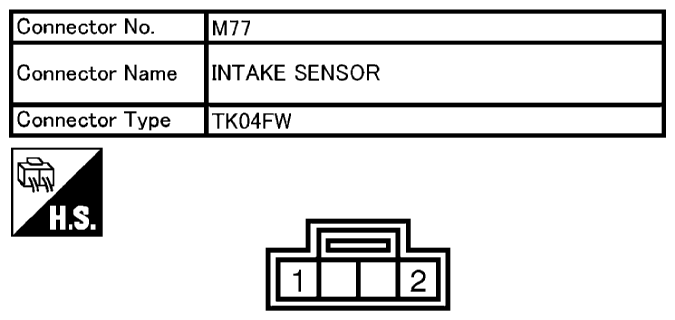

Fig 1: Intake Sensor Connector End View (M77)
G10702572Courtesy of NISSAN NORTH AMERICA, INC.
