Soft Top Open/Close Control

WARNING: This page is about a different car, the 2011 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Open Operation

When roof open/close switch is operated to OPEN, soft top system checks that operation conditions are satisfied and performs an open operation. Parts state (CONSULT display) is shown in the following table.

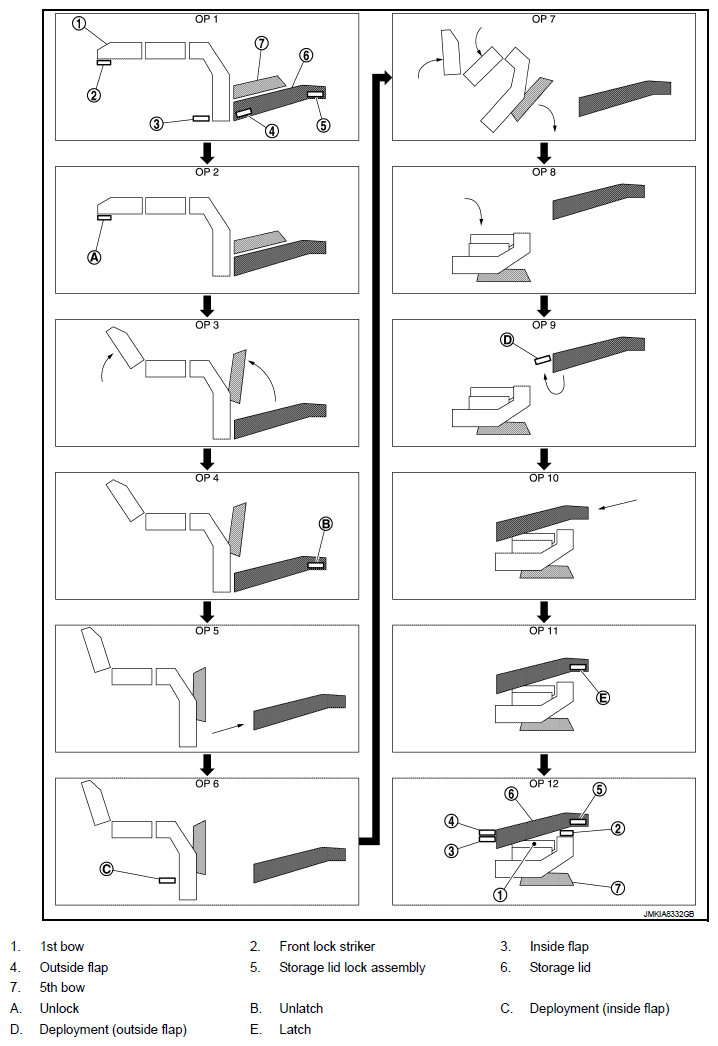

Fig 1: Display Soft Top System Parts State (Open)

G07133869

Courtesy of NISSAN MOTOR CO., U.S.A.

Open state: OP1→OP6

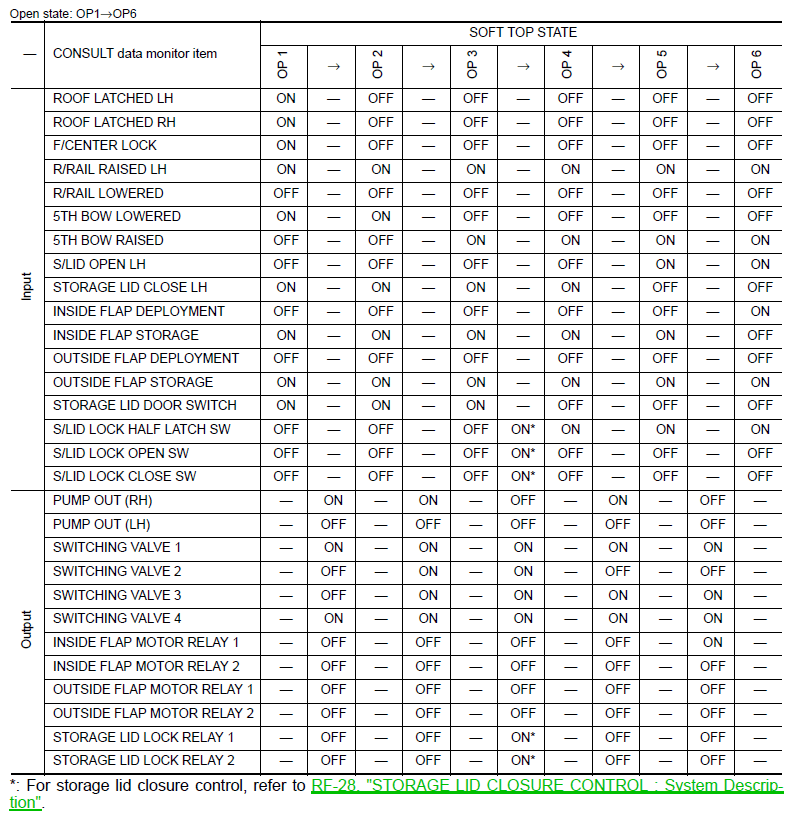

Fig 2: Soft Top State Control Chart - Open State (OP1→OP6)

G07133870

Courtesy of NISSAN MOTOR CO., U.S.A.

Open state: OP6→OP12

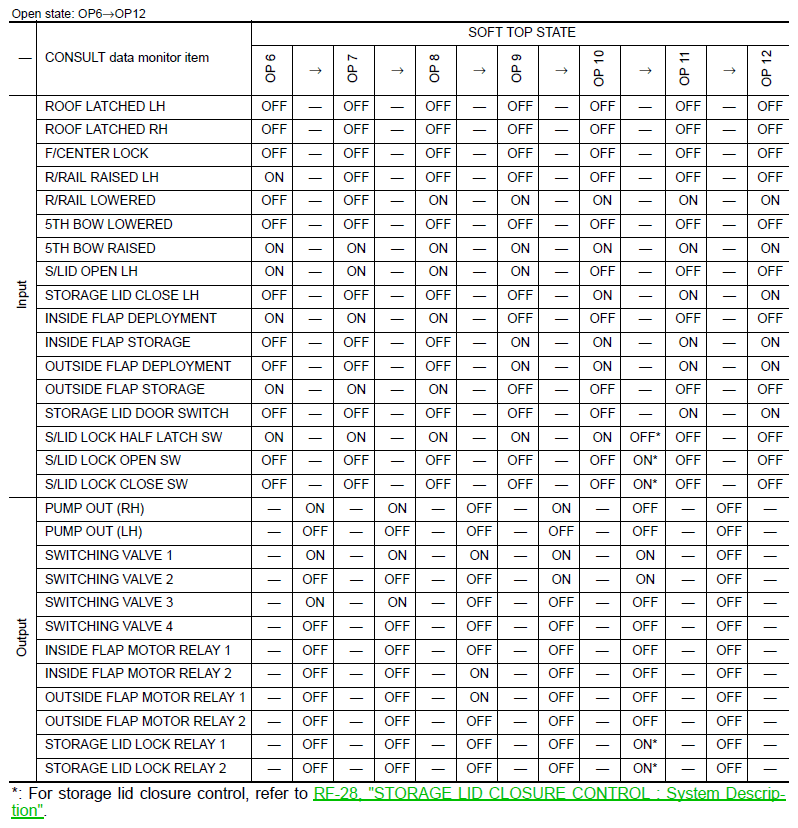

Fig 3: Soft Top State Control Chart - Open State (OP6→OP12)

G07133871

Courtesy of NISSAN MOTOR CO., U.S.A.

When roof open/close switch is operated to CLOSE, soft top system checks that operation conditions are satisfied and performs an closed operation. Parts state (CONSULT display) is shown in the following table.

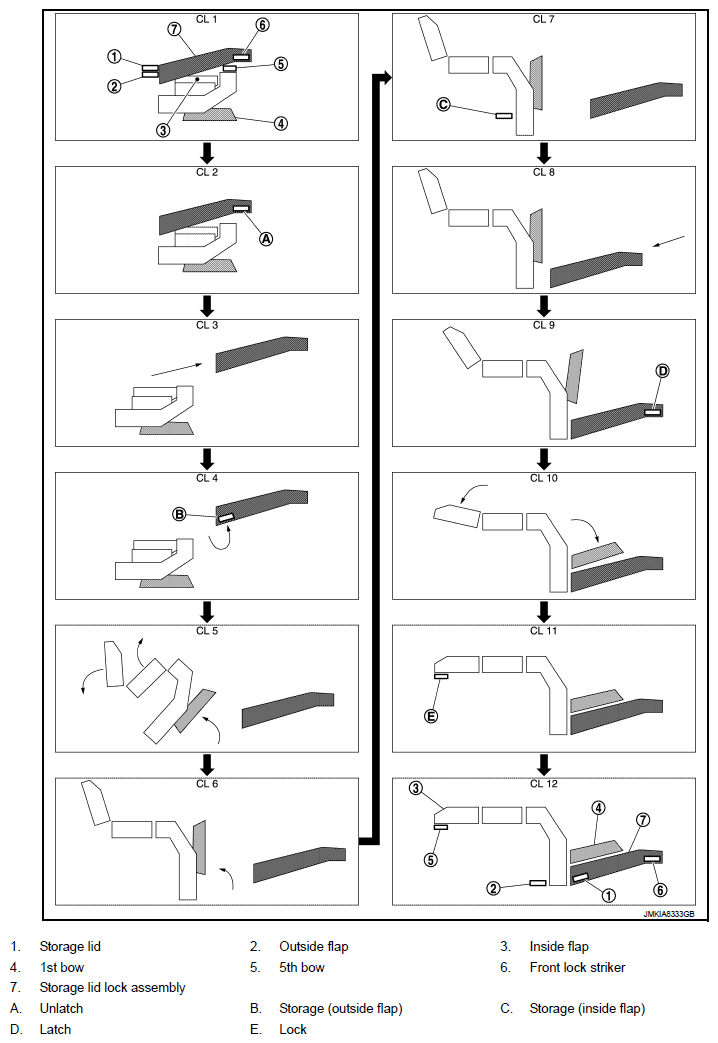

Fig 4: Display Soft Top System Parts State (Close)

G07133872

Courtesy of NISSAN MOTOR CO., U.S.A.

Close state: CL1→CL6

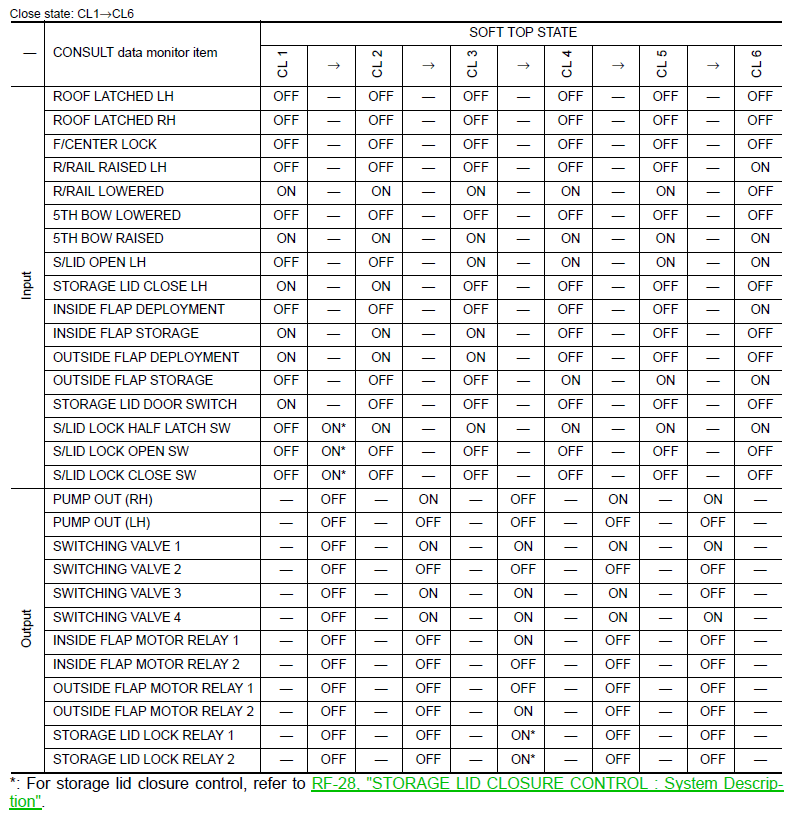

Fig 5: Soft Top State Control Chart - Close State (CL1→CL6)

G07133873

Courtesy of NISSAN MOTOR CO., U.S.A.

Open state: OP6→OP12

Fig 6: Soft Top State Control Chart - Open State (OP6→OP12)

G07133874

Courtesy of NISSAN MOTOR CO., U.S.A.
