Driver's Seat

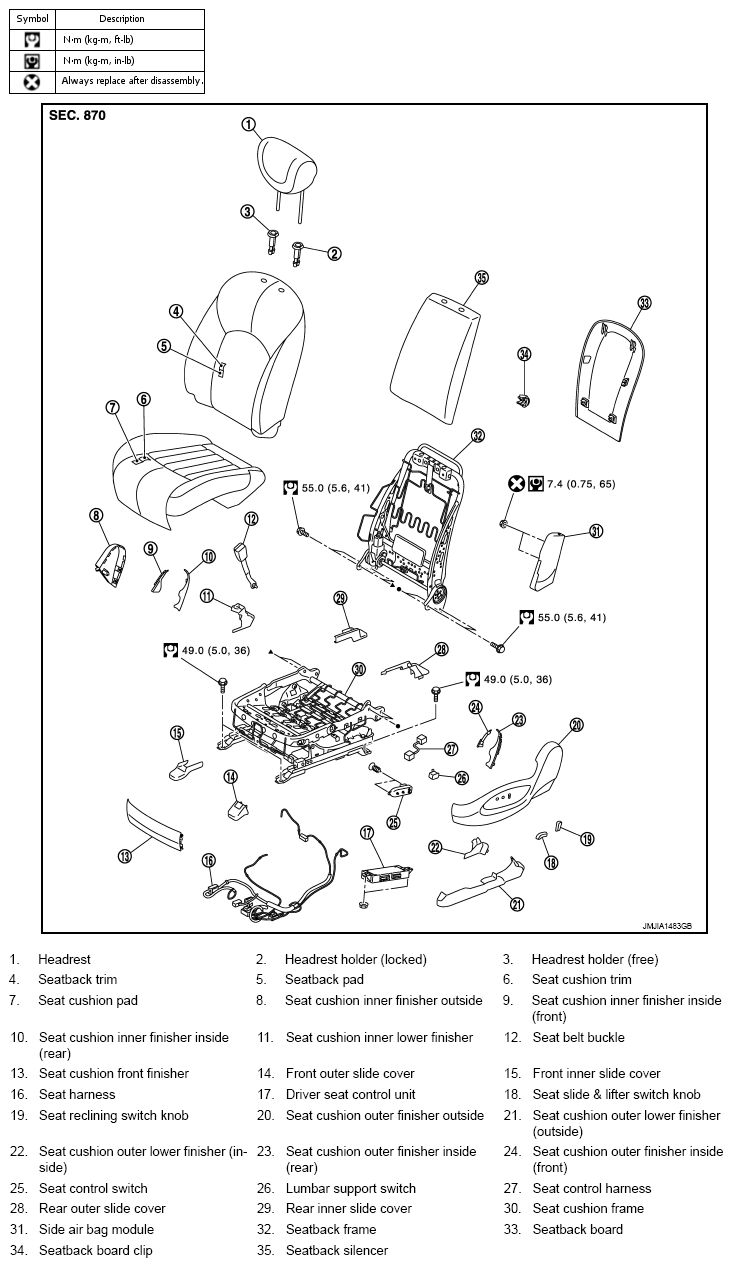

Fig 1: Exploded View Of Front Seat With Torque Specifications (Driver's Seat)
G07166656Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
