Removal and Installation: Removal

  1. Remove the door finisher.

    Refer to "REMOVAL AND INSTALLATION ".

  2. Power window main switch (1) is removed from door finisher using flat-bladed screw driver (A) etc.

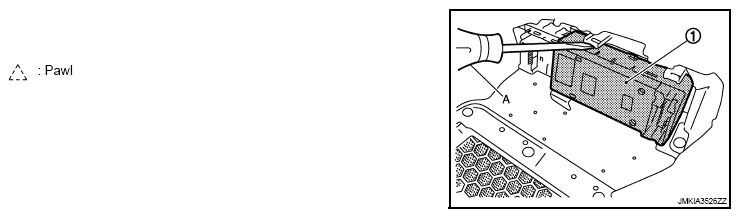

    Fig 1: Removing Power Window Main Switch From Door Finisher Using Flat-Bladed Screw
    G06623630Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Do not fold the pawl of power window main switch finisher.
    NOTE: The same procedure is also performed for power window subswitch.
