Wiring Diagram - INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

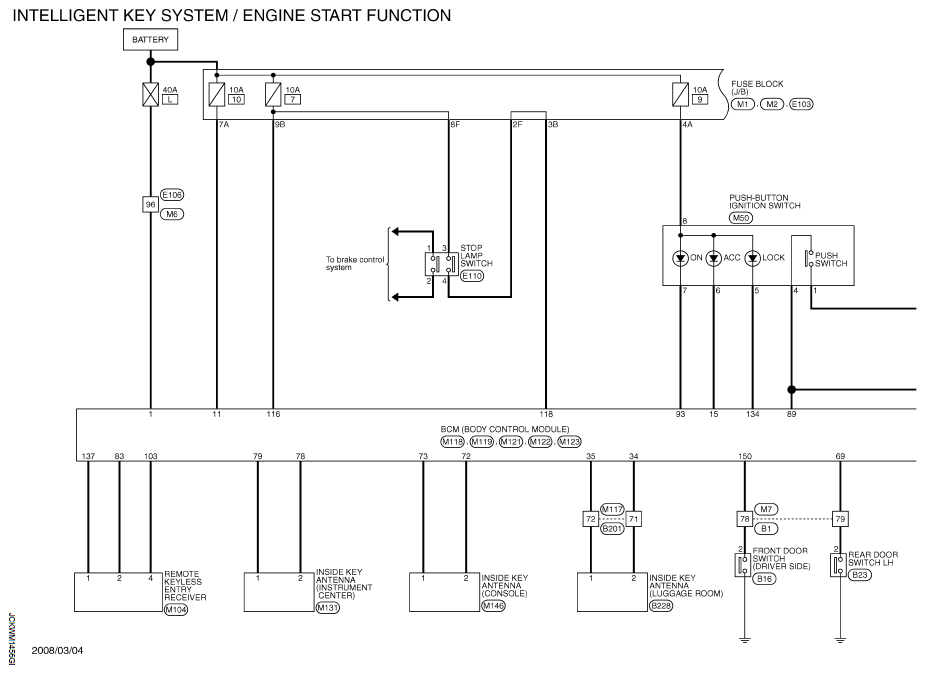

Fig 1: Wiring Diagram - Intelligent Key System/Engine Start Function - 01

Courtesy of NISSAN MOTOR CO., U.S.A.

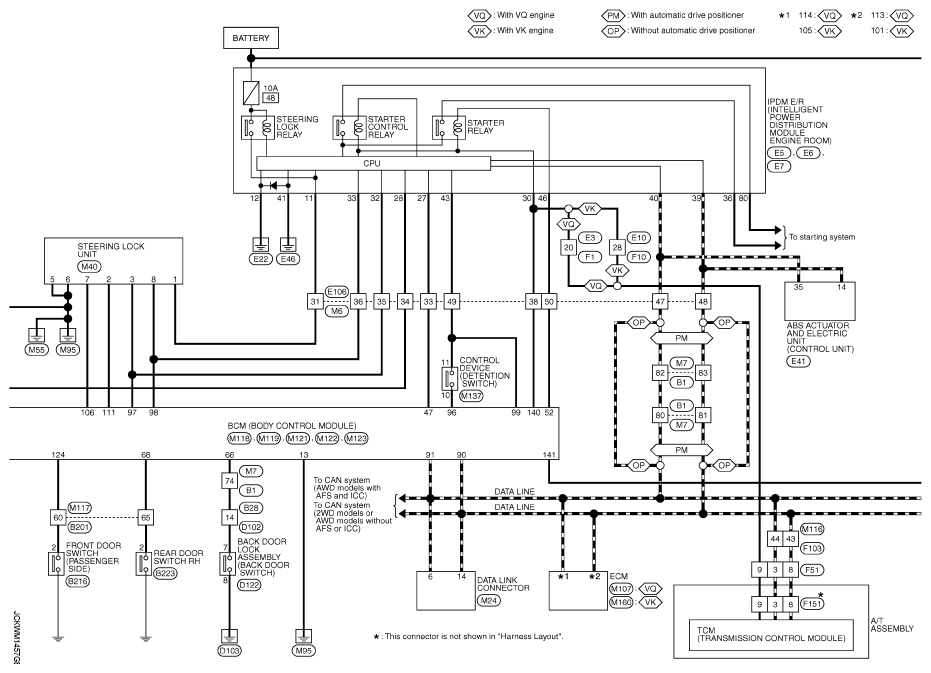

Fig 2: Wiring Diagram - Intelligent Key System/Engine Start Function - 02

Courtesy of NISSAN MOTOR CO., U.S.A.

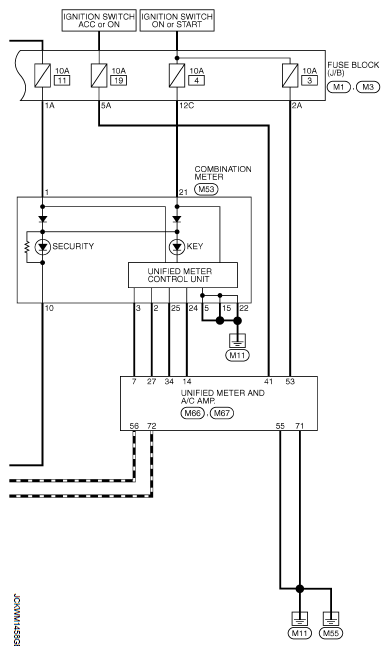

Fig 3: Wiring Diagram - Intelligent Key System/Engine Start Function - 03

Courtesy of NISSAN MOTOR CO., U.S.A.

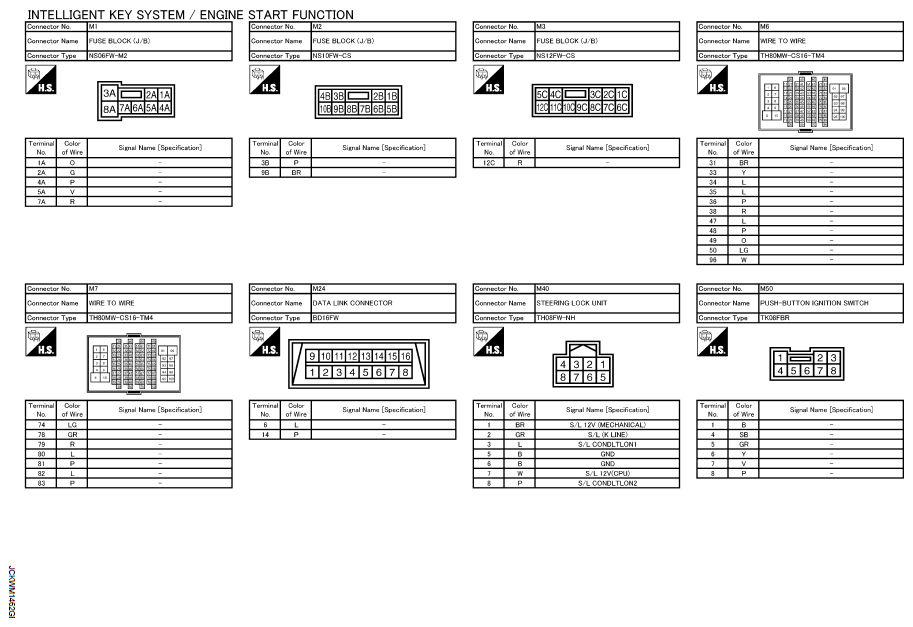

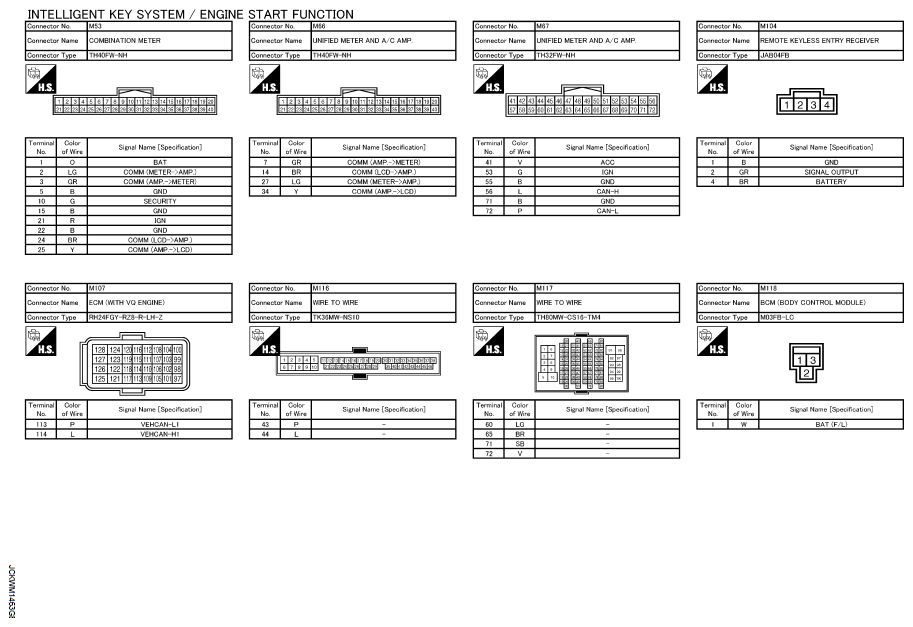

Fig 4: Intelligent Key System/Engine Start Function Connectors (1 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

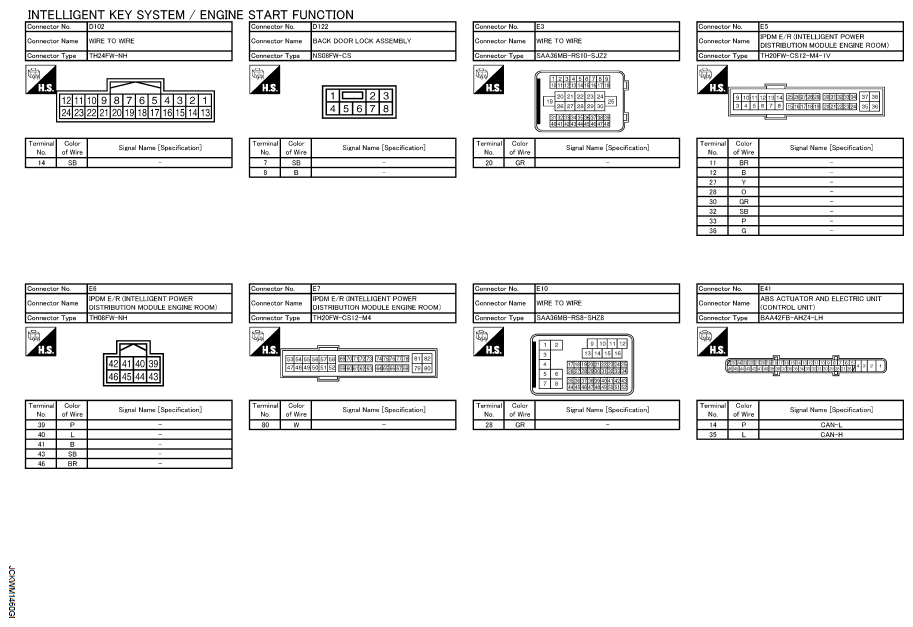

Fig 5: Intelligent Key System/Engine Start Function Connectors (2 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

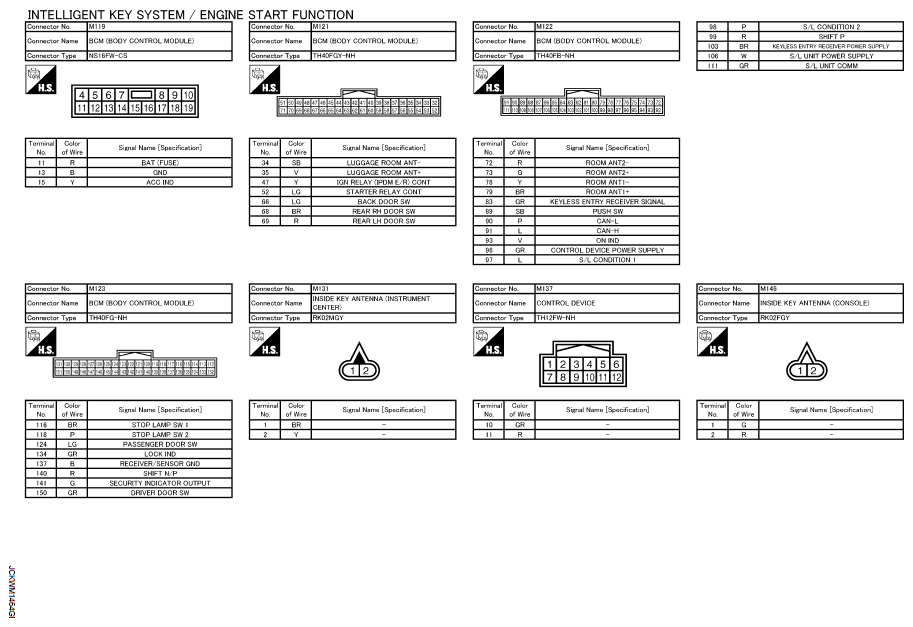

Fig 6: Intelligent Key System/Engine Start Function Connectors (3 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

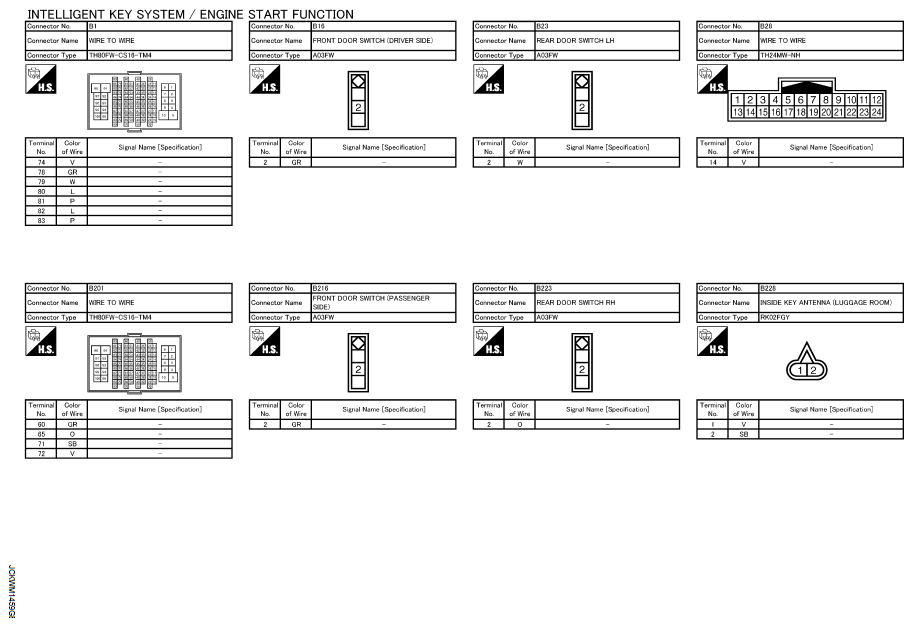

Fig 7: Intelligent Key System/Engine Start Function Connectors (4 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

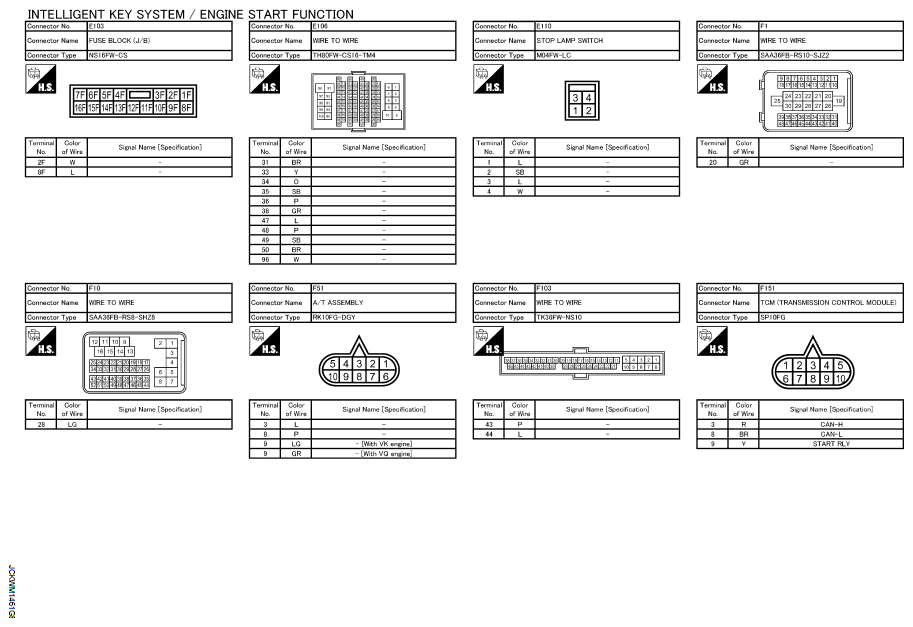

Fig 8: Intelligent Key System/Engine Start Function Connectors (5 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Intelligent Key System/Engine Start Function Connectors (6 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Intelligent Key System/Engine Start Function Connectors (7 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.
