Component Parts Location

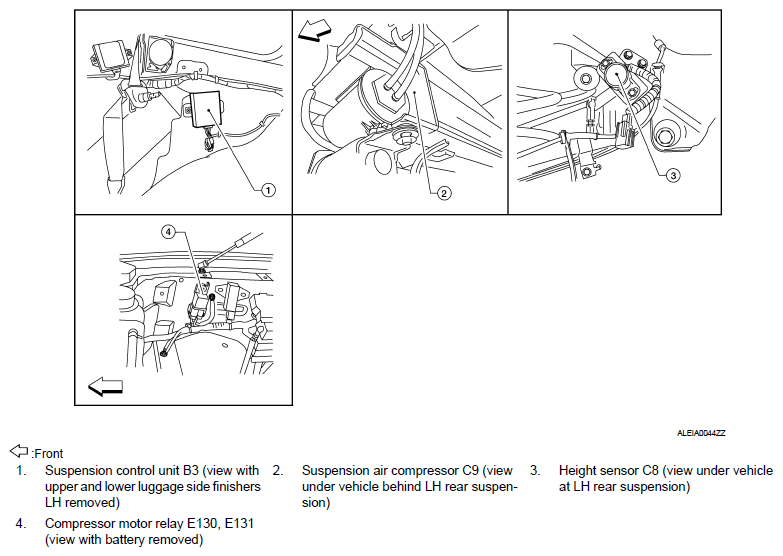

Fig 1: Identifying Suspension Control System Parts Locations
G06317118Courtesy of NISSAN MOTOR CO., U.S.A.
