Front Power Window Switch: Wiring Diagram

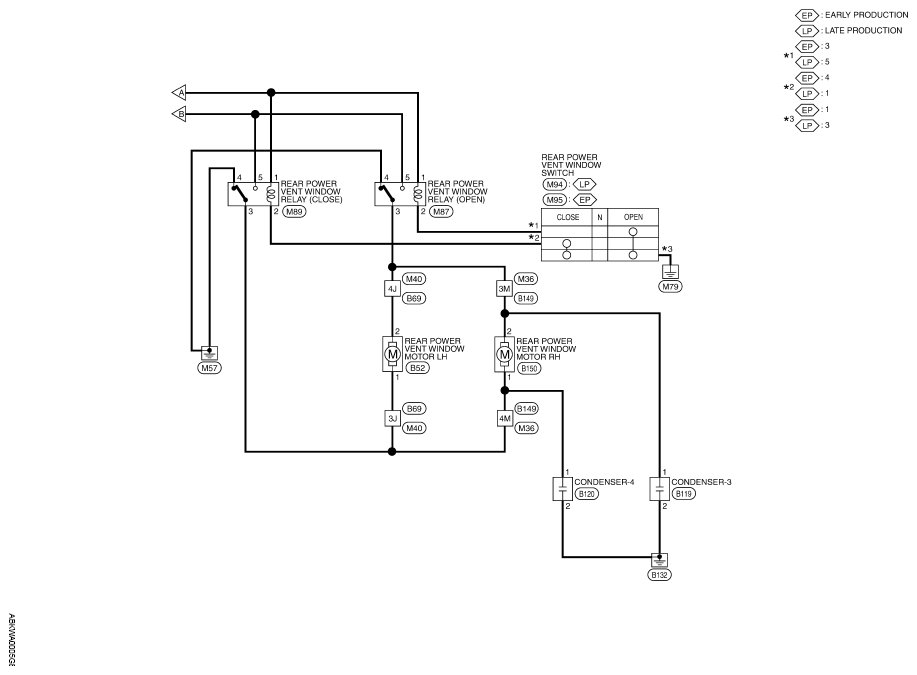

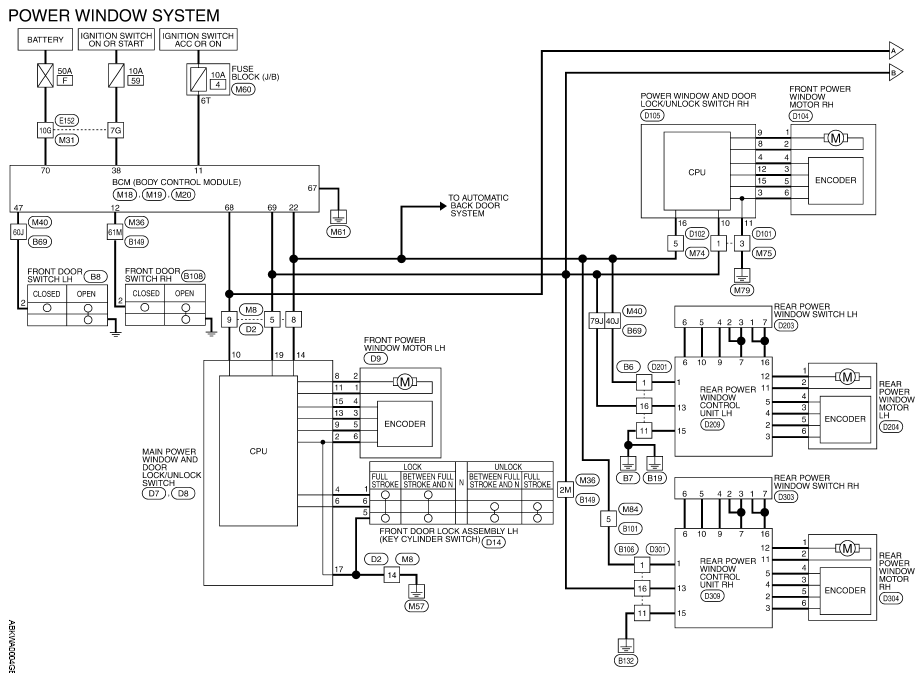

Fig 1: Front Power Window Switch - Wiring Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Front Power Window Switch - Wiring Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

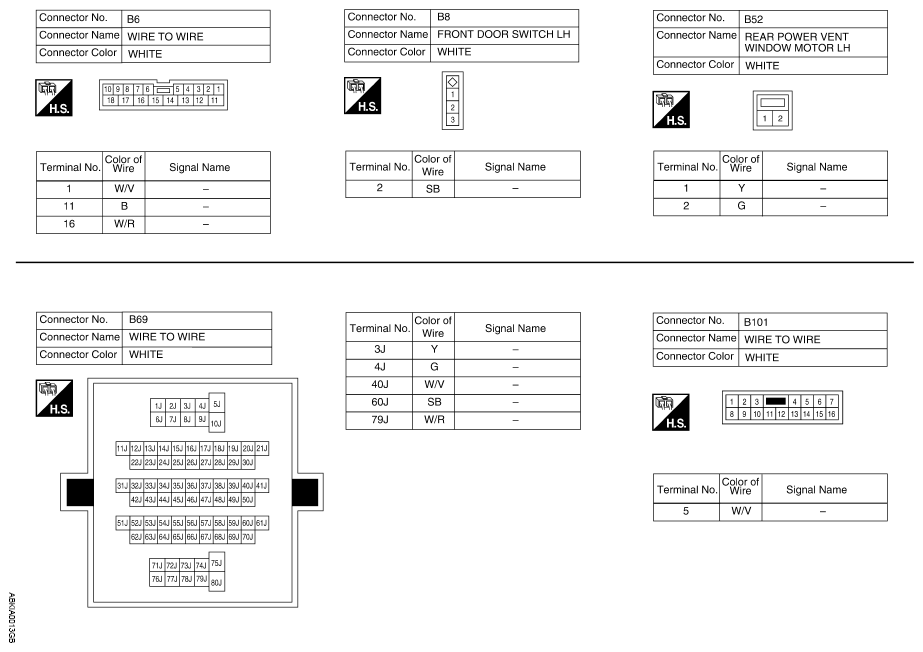

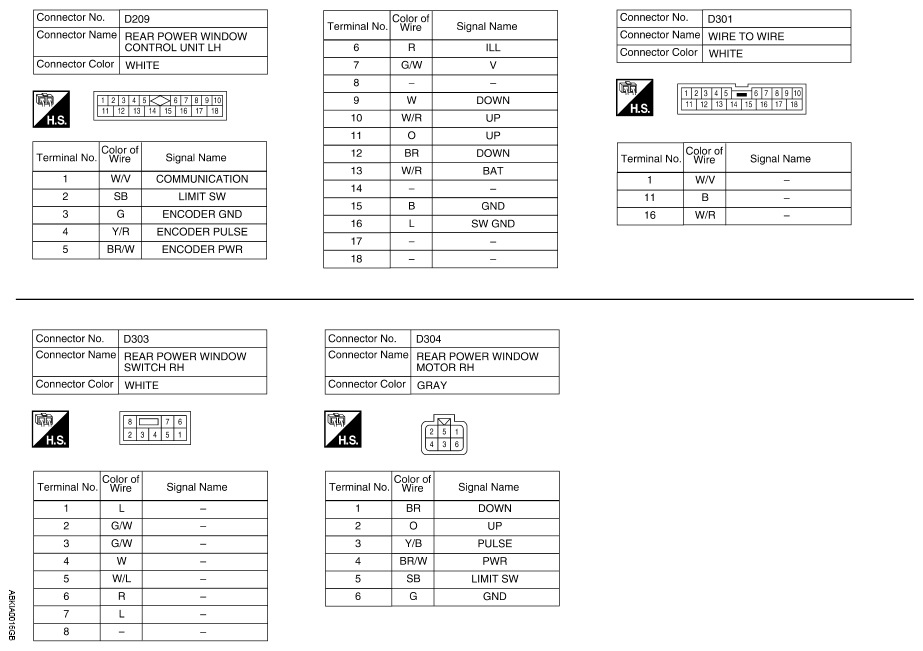

Fig 3: Power Window System Connectors Reference Chart (1 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

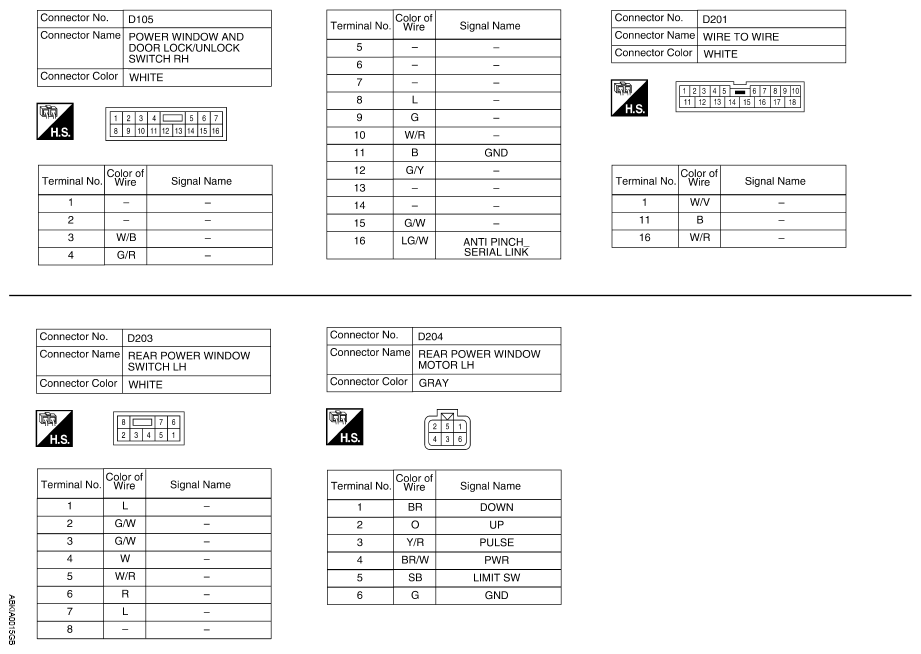

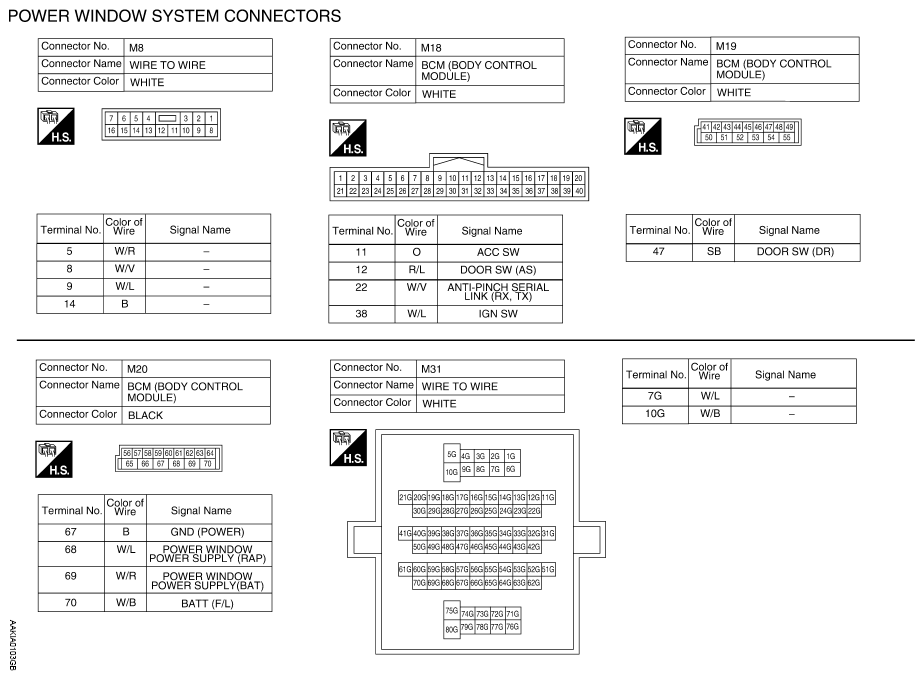

Fig 4: Power Window System Connectors Reference Chart (2 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

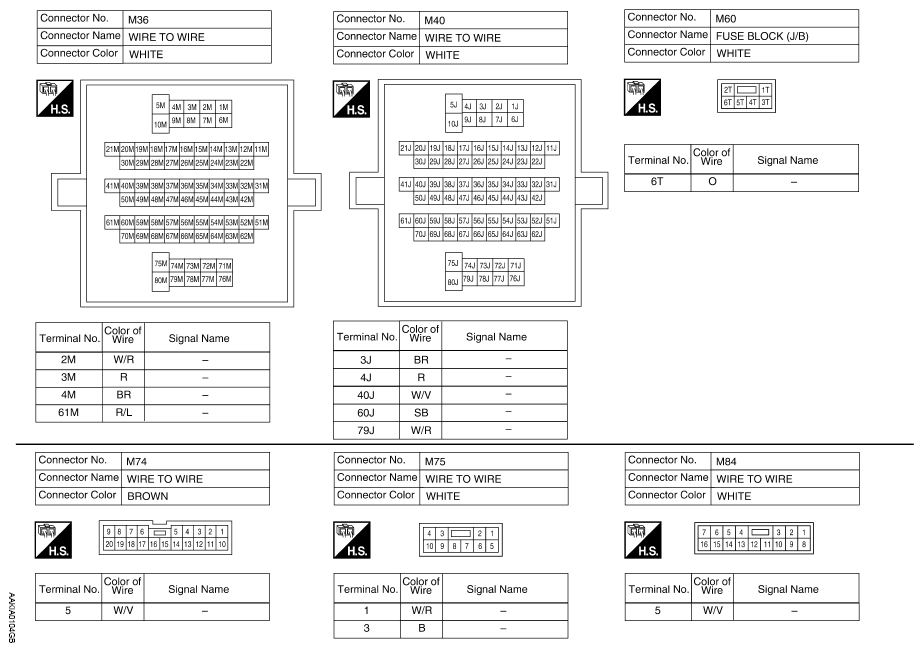

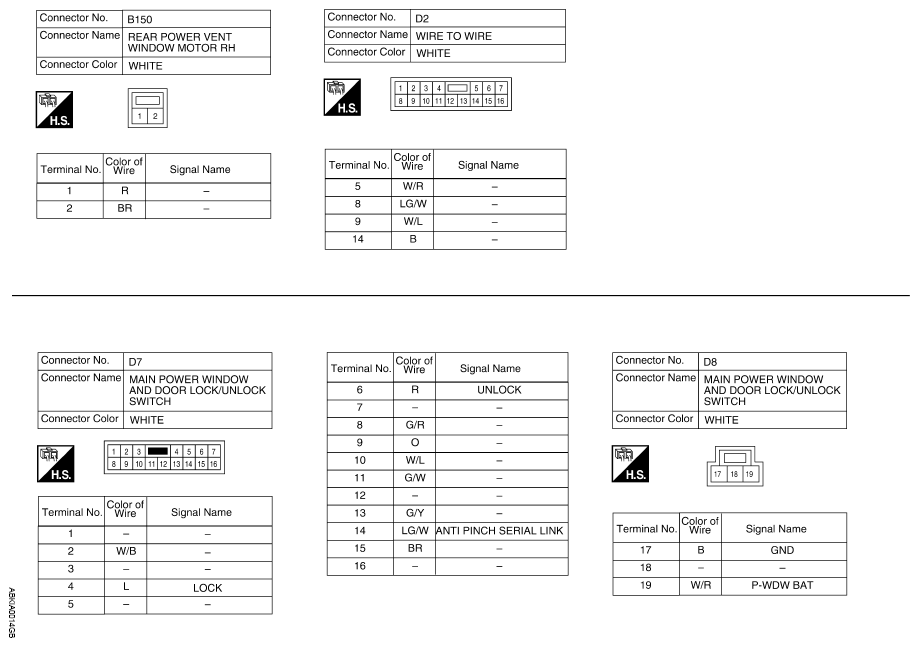

Fig 5: Power Window System Connectors Reference Chart (3 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

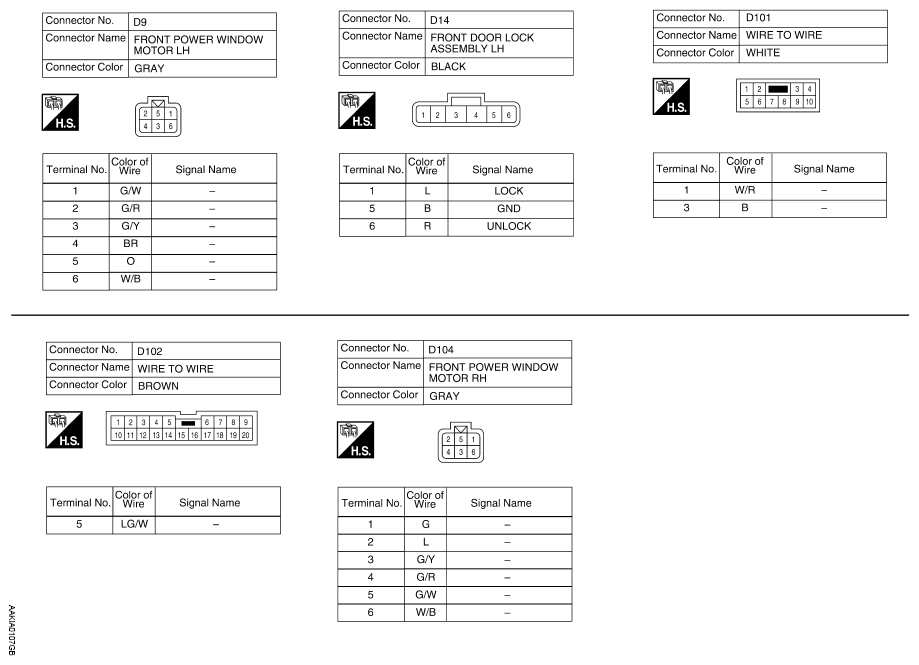

Fig 6: Power Window System Connectors Reference Chart (4 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

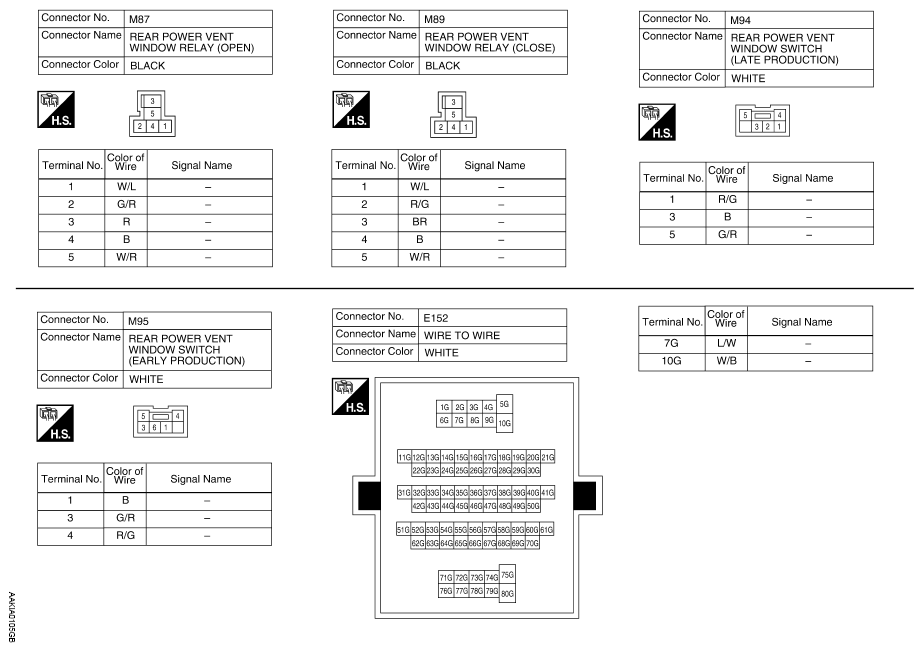

Fig 7: Power Window System Connectors Reference Chart (5 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

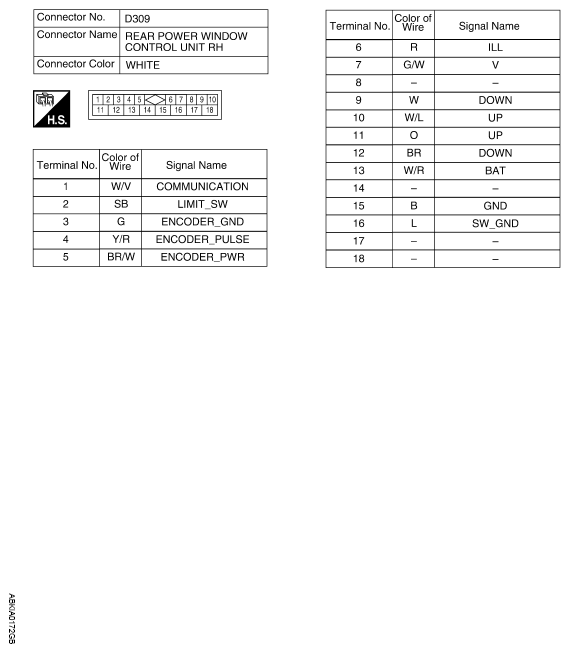

Fig 8: Power Window System Connectors Reference Chart (6 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

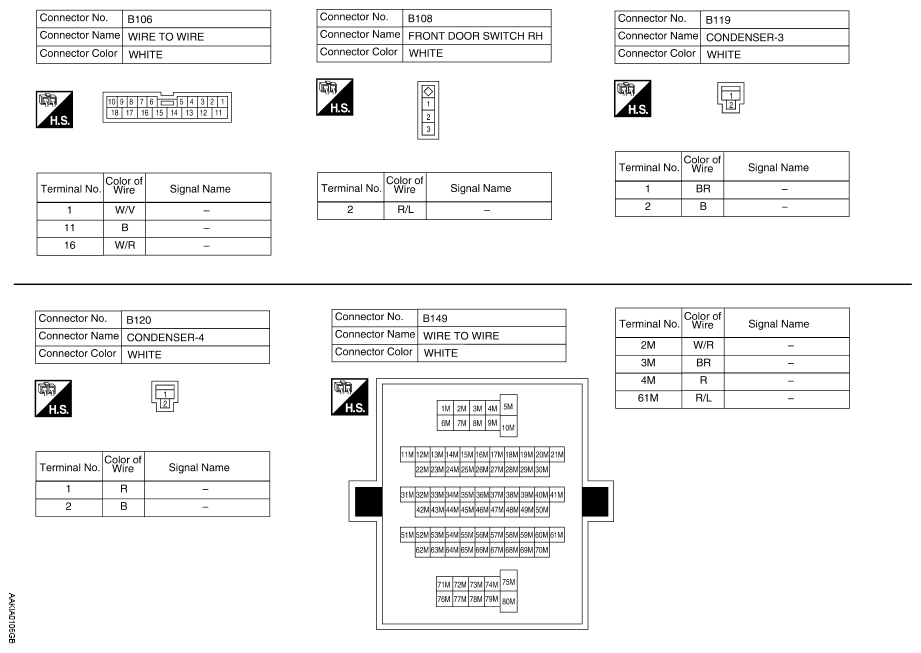

Fig 9: Power Window System Connectors Reference Chart (7 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Power Window System Connectors Reference Chart (8 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Power Window System Connectors Reference Chart (9 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Power Window System Connectors Reference Chart (10 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.
