Component Parts Location

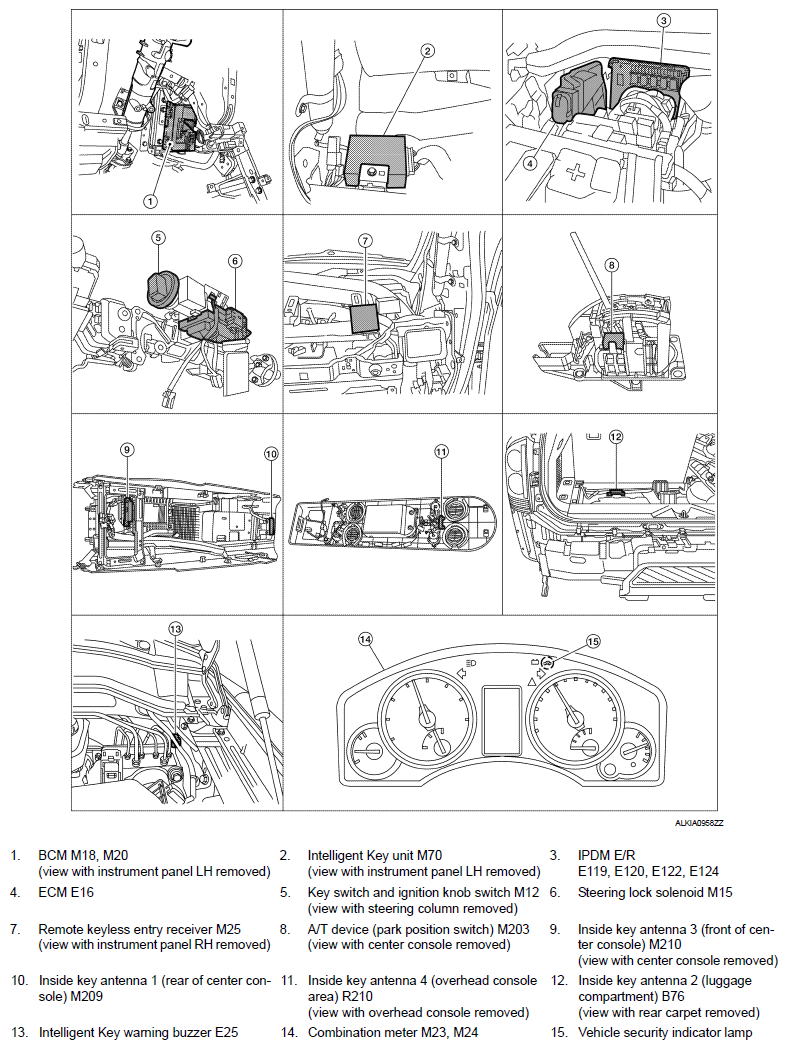

Fig 1: Identifying Intelligent Key System Component Parts Location
G06317695Courtesy of NISSAN MOTOR CO., U.S.A.
