Infiniti
>>
2009
>>
M45 x
>>
Repair and Diagnosis
>>
General Information
>>
OEM General Information
>>
Service Information
>>
Consult-III/GST Checking System
>>
CONSULT-III/GST Data Link Connector (DLC) Circuit
>>
Circuit Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Circuit Diagram

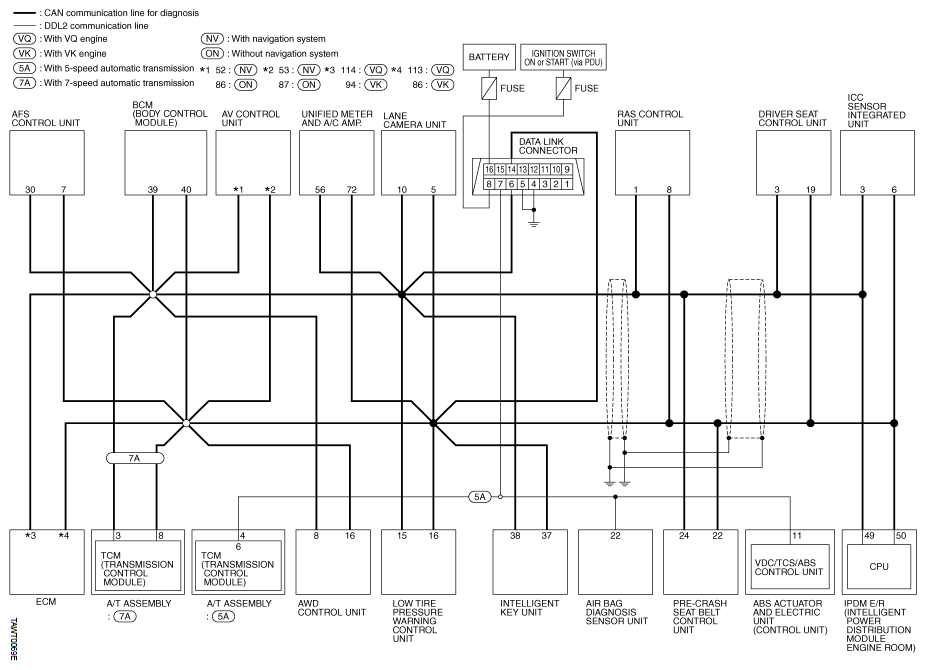

Fig 1: Communication Circuit Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
