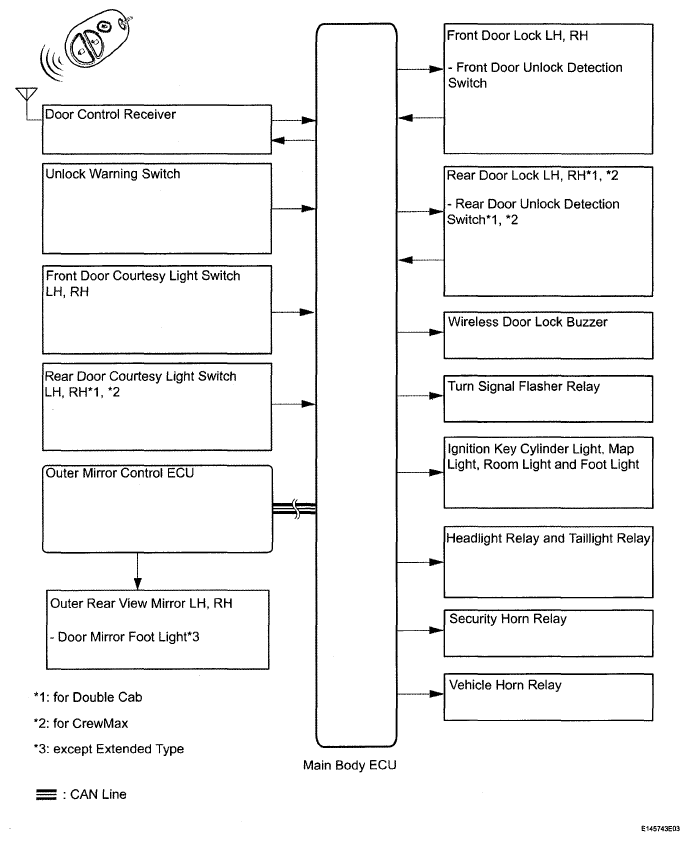

System Diagram
WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Communication table:
WIRELESS DOOR LOCK CONTROL SYSTEM COMMUNICATION TABLE
| Sender |
Receiver |
Signal |
Line |
| Main body ECU |
Outer mirror control ECU* |
Door mirror foot light illumination signal |
CAN |
HINT:
*: except Extended Type |
