Removal and Installation: Notes

WARNING: This page is about a different car, the 2008 Infiniti FX45 and 2008 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

After any adjustment, check sunroof operation and glass lid alignment.
Handle finisher plate and glass lid with care so as not to cause damage.
It is desirable for easy installation to mark each point before removal.

CAUTION:

Always work with a helper.
Fully close the glass lid assembly, before removal, then do not operate motor assembly after removal.

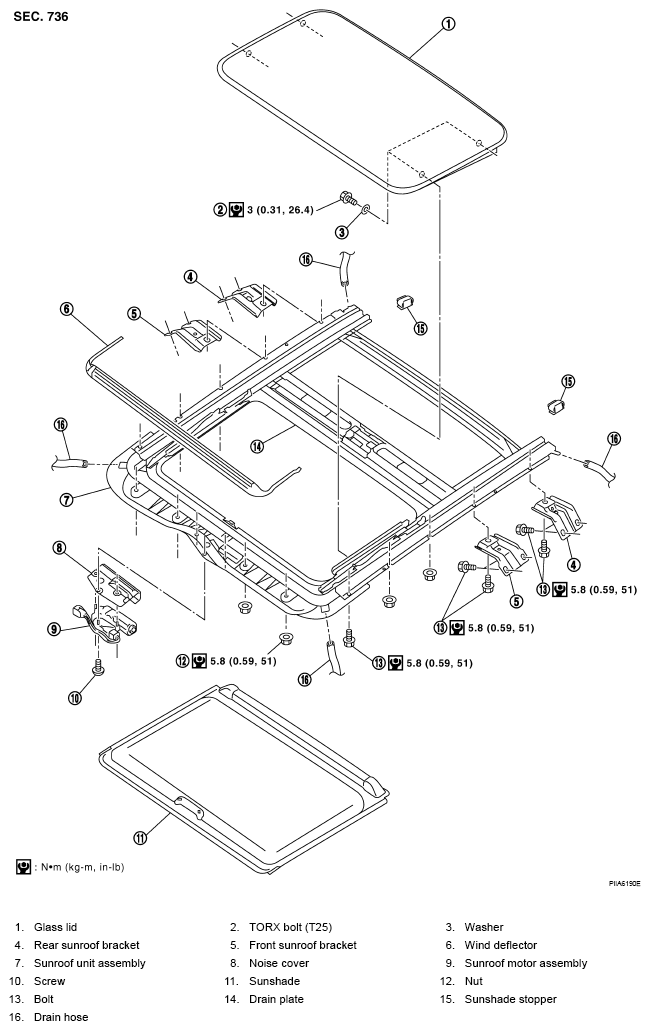

Fig 1: Sun Roof Assembly Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
