Cross-Sectional View

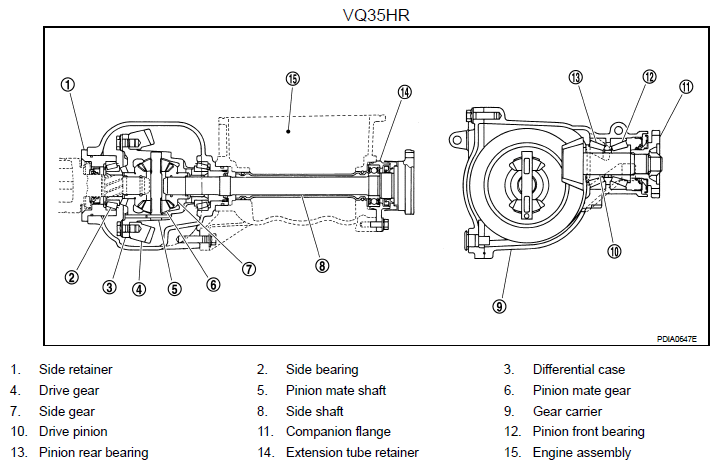

Fig 1: Cross-Sectional View Of Front Final Drive (VQ35HR)
G06305528Courtesy of NISSAN MOTOR CO., U.S.A.

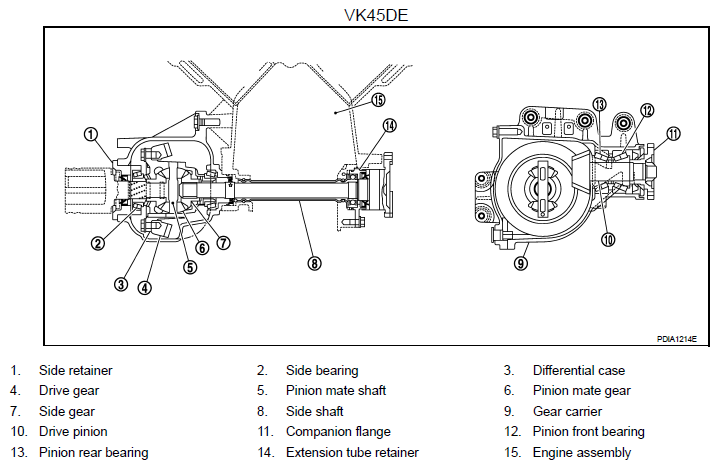

Fig 2: Cross-Sectional View Of Front Final Drive (VK45DE)
G06305529Courtesy of NISSAN MOTOR CO., U.S.A.
