Engine Control System - Introduction - Sedan
>>
Function Diagnosis
>>
Intake Valve Timing Control
>>
Component Parts Location
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Component Parts Location

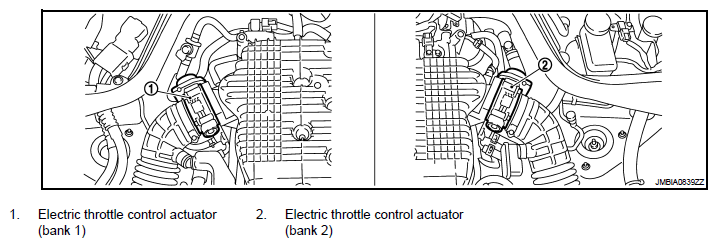

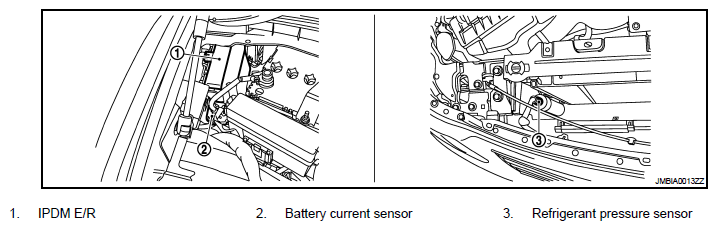

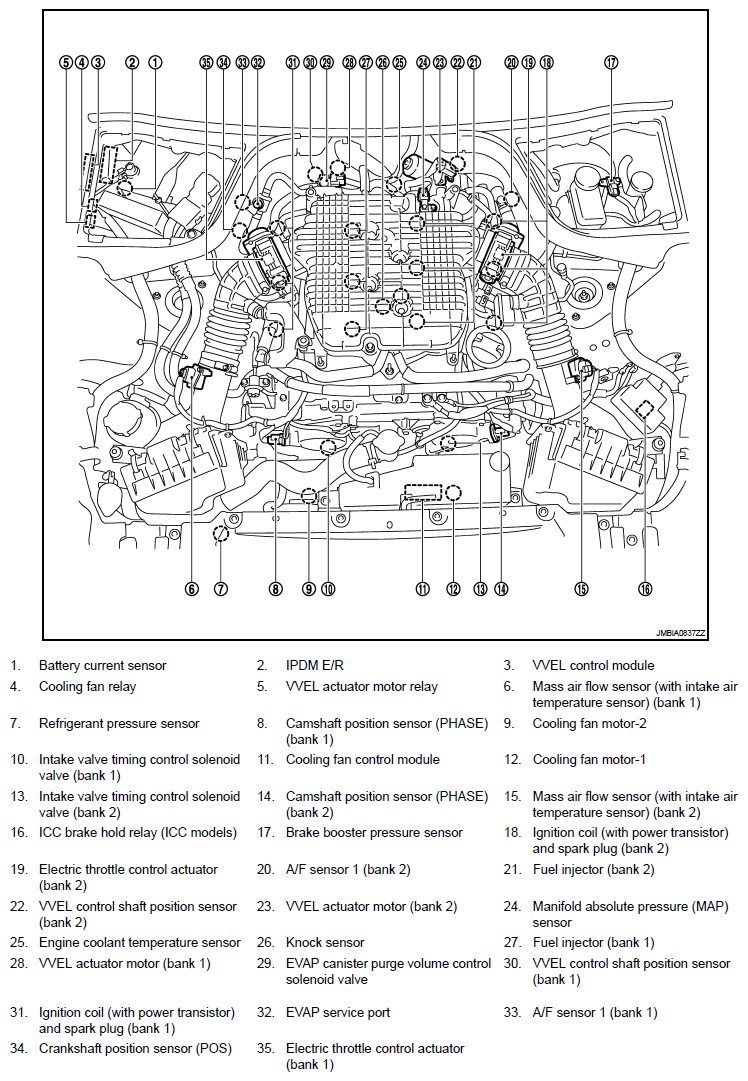

Fig 1: Identifying Intake Valve Timing Control Component Parts Location (1 Of 22)
Courtesy of NISSAN NORTH AMERICA, INC.

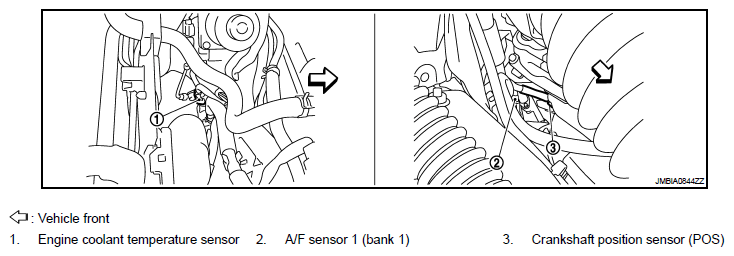

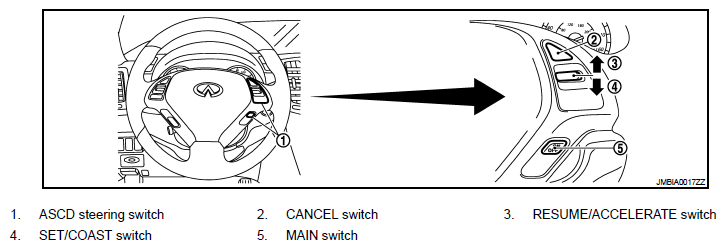

Fig 2: Identifying Intake Valve Timing Control Component Parts Location (2 Of 22)
Courtesy of NISSAN NORTH AMERICA, INC.

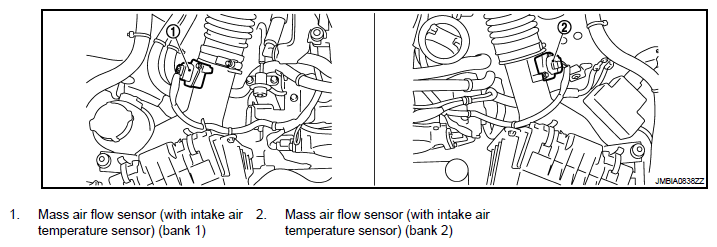

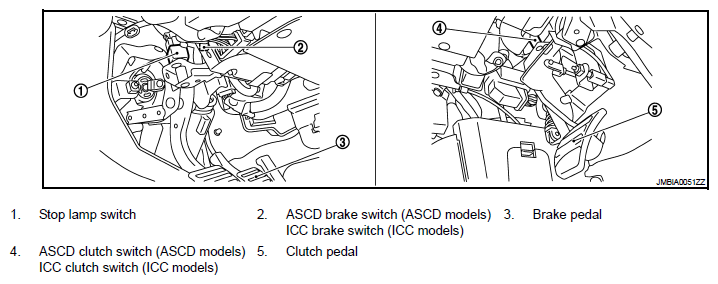

Fig 3: Identifying Intake Valve Timing Control Component Parts Location (3 Of 22)
Courtesy of NISSAN NORTH AMERICA, INC.

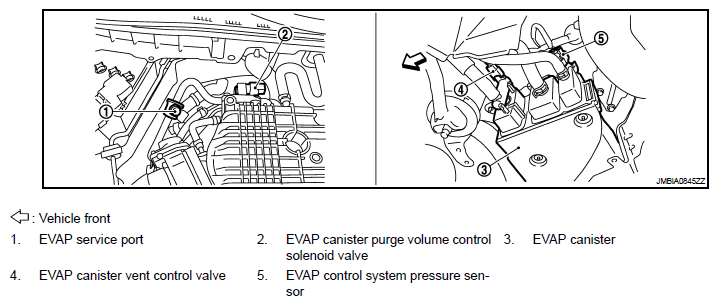

Fig 4: Identifying Intake Valve Timing Control Component Parts Location (4 Of 22)
Courtesy of NISSAN NORTH AMERICA, INC.

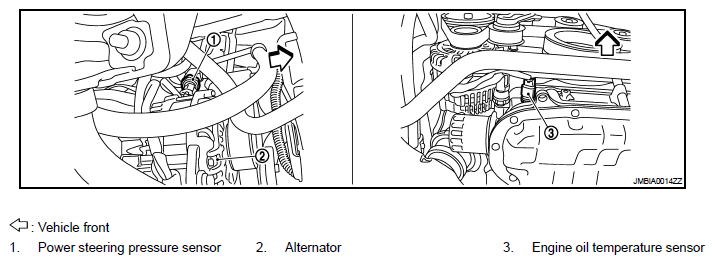

Fig 5: Identifying Intake Valve Timing Control Component Parts Location (5 Of 22)
Courtesy of NISSAN NORTH AMERICA, INC.

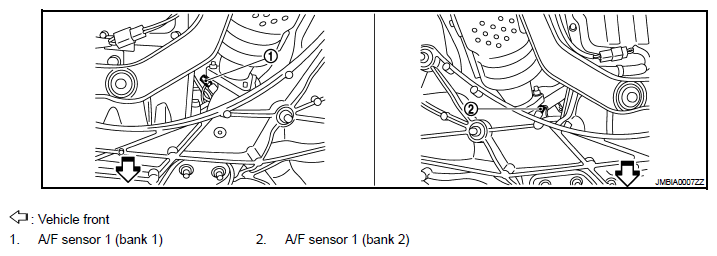

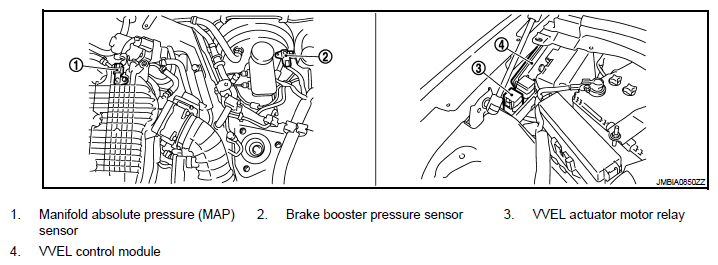

Fig 6: Identifying Intake Valve Timing Control Component Parts Location (6 Of 22)
Courtesy of NISSAN NORTH AMERICA, INC.

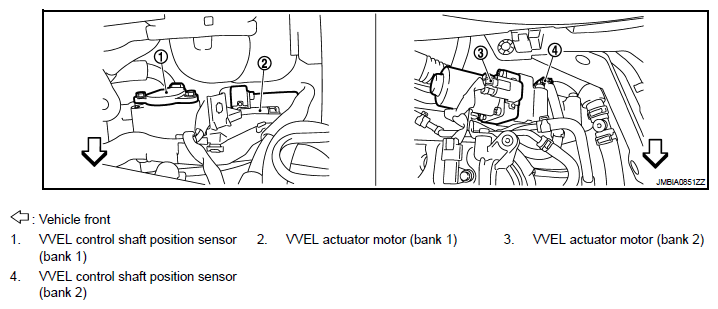

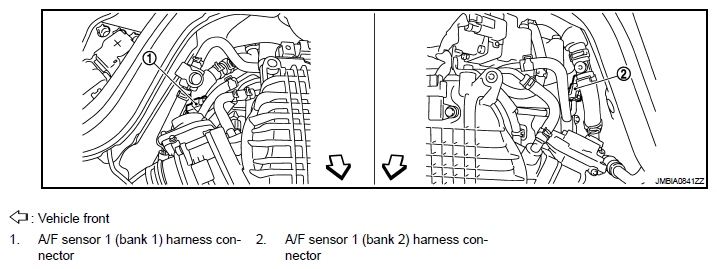

Fig 7: Identifying Intake Valve Timing Control Component Parts Location (7 Of 22)
Courtesy of NISSAN NORTH AMERICA, INC.

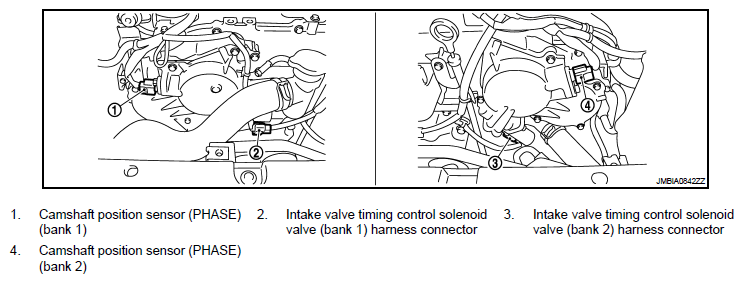

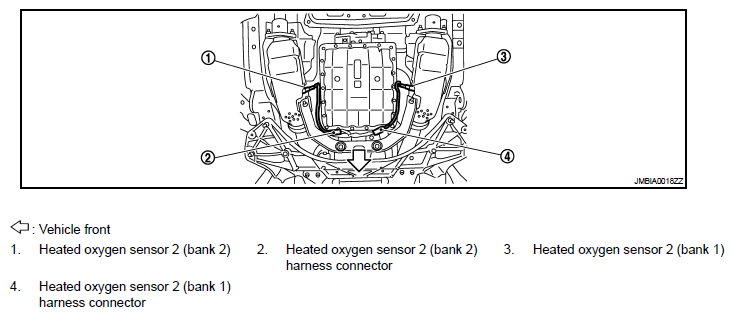

Fig 8: Identifying Intake Valve Timing Control Component Parts Location (8 Of 22)
Courtesy of NISSAN NORTH AMERICA, INC.

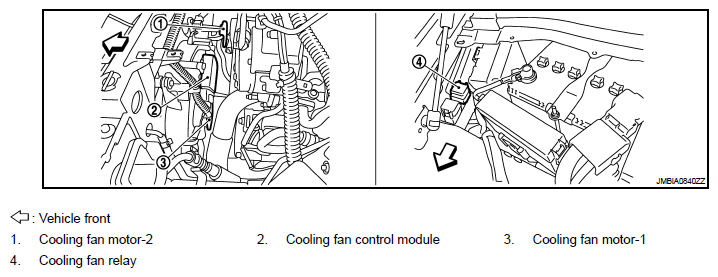

Fig 9: Identifying Intake Valve Timing Control Component Parts Location (9 Of 22)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 10: Identifying Intake Valve Timing Control Component Parts Location (10 Of 22)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 11: Identifying Intake Valve Timing Control Component Parts Location (11 Of 22)
Courtesy of NISSAN NORTH AMERICA, INC.

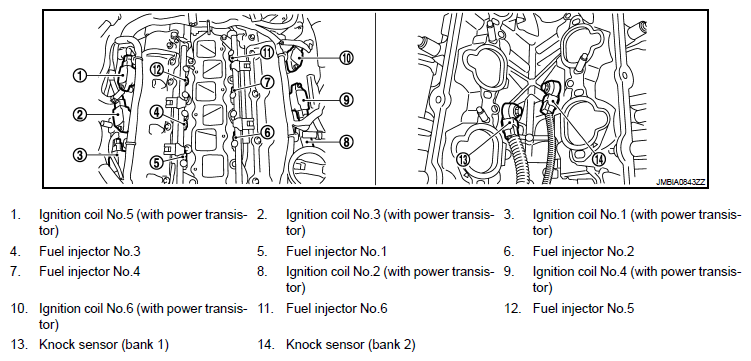

Fig 12: Identifying Intake Valve Timing Control Component Parts Location (12 Of 22)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 13: Identifying Intake Valve Timing Control Component Parts Location (13 Of 22)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 14: Identifying Intake Valve Timing Control Component Parts Location (14 Of 22)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 15: Identifying Intake Valve Timing Control Component Parts Location (15 Of 22)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 16: Identifying Intake Valve Timing Control Component Parts Location (16 Of 22)
Courtesy of NISSAN NORTH AMERICA, INC.

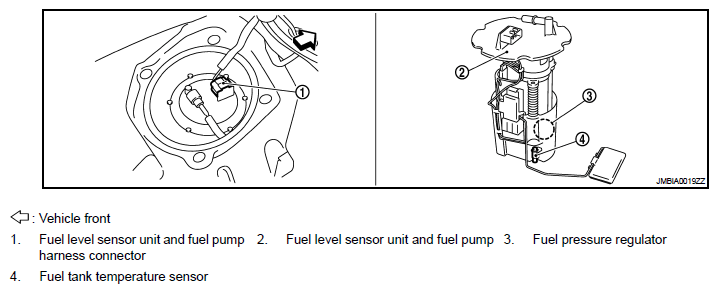

Fig 17: Identifying Intake Valve Timing Control Component Parts Location (17 Of 22)
Courtesy of NISSAN NORTH AMERICA, INC.

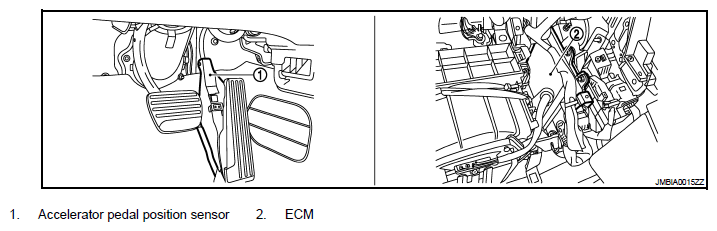

Fig 18: Identifying Intake Valve Timing Control Component Parts Location (18 Of 22)
Courtesy of NISSAN NORTH AMERICA, INC.

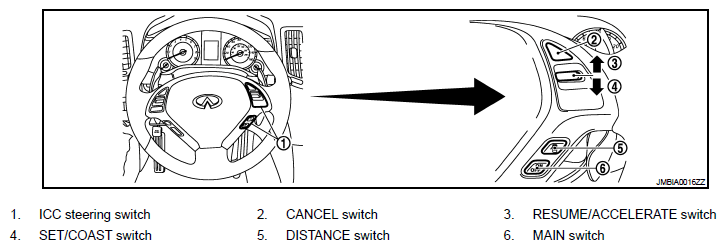

Fig 19: Identifying Intake Valve Timing Control Component Parts Location (19 Of 22)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 20: Identifying Intake Valve Timing Control Component Parts Location (20 Of 22)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 21: Identifying Intake Valve Timing Control Component Parts Location (21 Of 22)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 22: Identifying Intake Valve Timing Control Component Parts Location (22 Of 22)
Courtesy of NISSAN NORTH AMERICA, INC.
