Infiniti
>>
2009
>>
G37 Base, 4D Sedan
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Power Control System -- Sedan
>>
IPDM E/R
>>
Function Diagnosis
>>
Relay Control System
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram

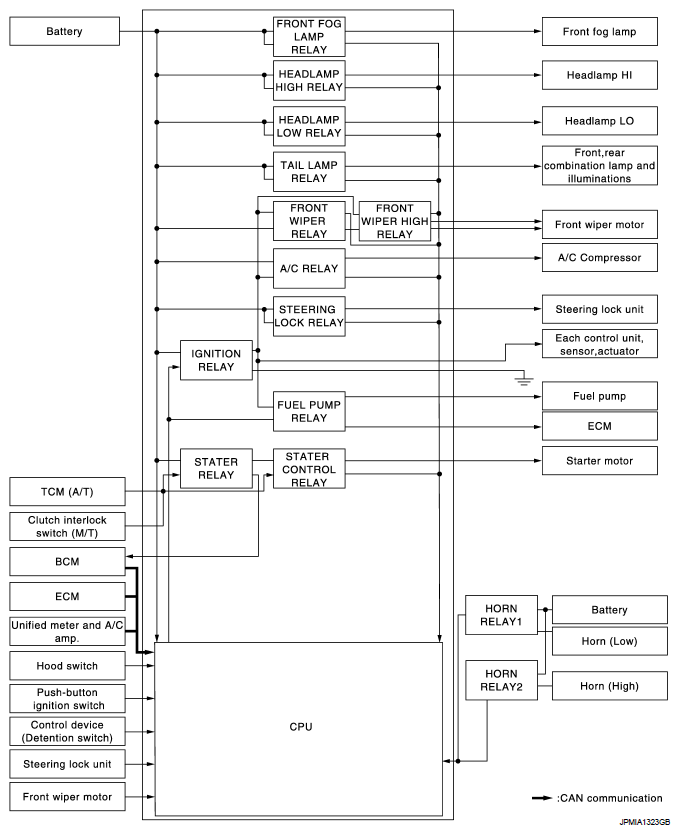

Fig 1: Relay Control System - System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
