Component Parts Location

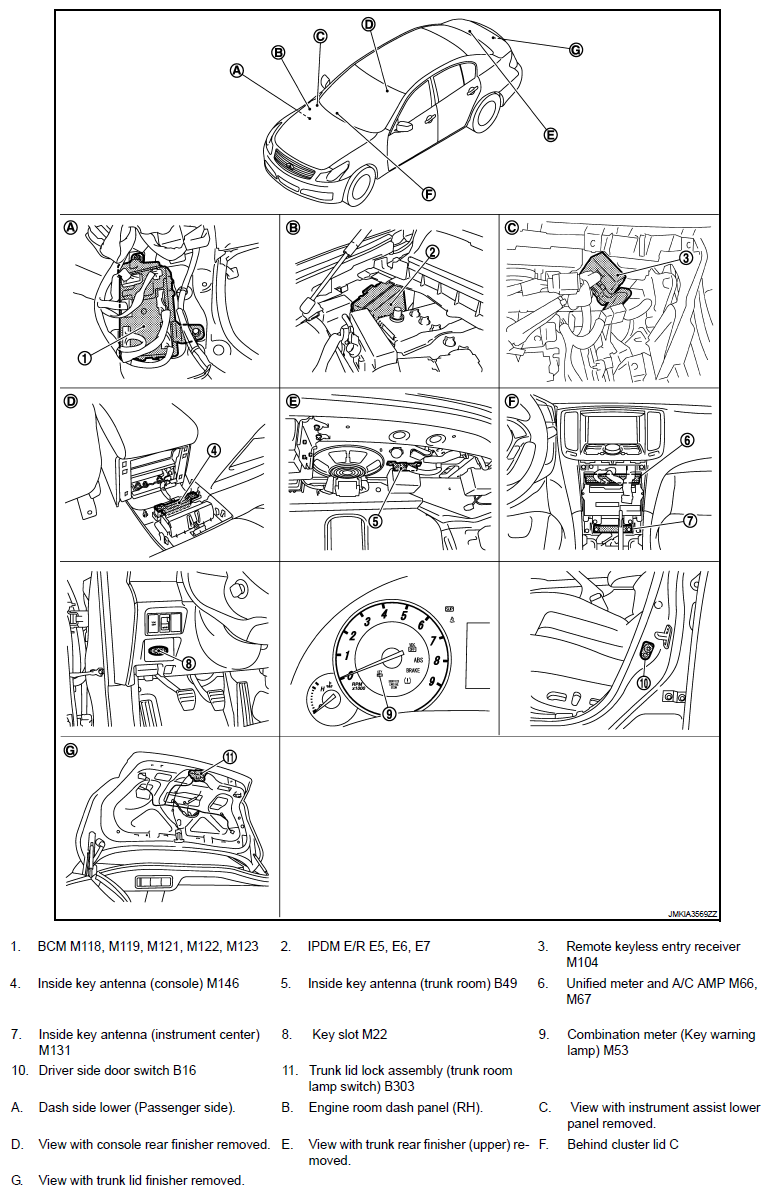

Fig 1: Identifying Intelligent Key System/Engine Start Function Component Parts Location (1 Of 2)
G06324086Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Identifying Intelligent Key System/Engine Start Function Component Parts Location (2 Of 2)
G06324087Courtesy of NISSAN MOTOR CO., U.S.A.
