Exploded View

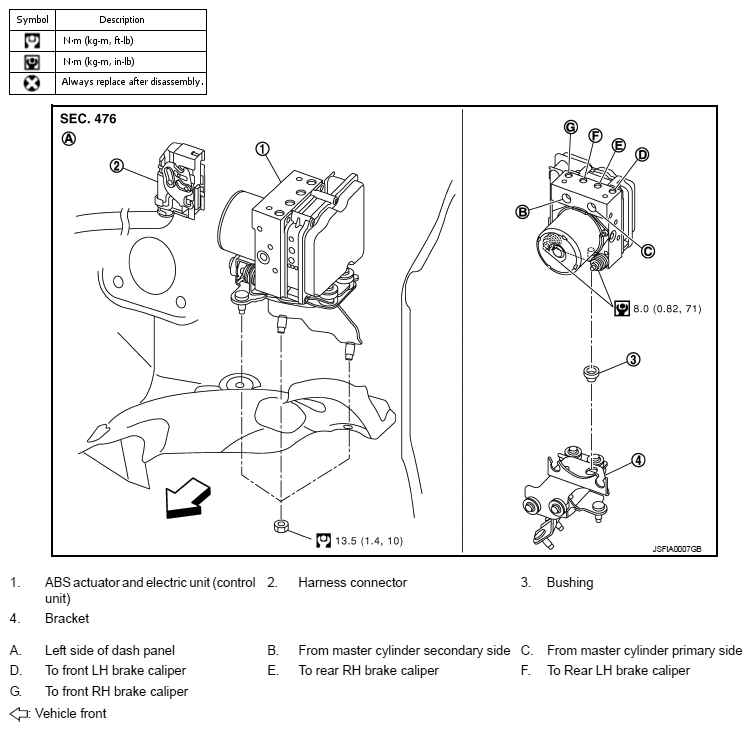

Fig 1: ABS Actuator And Electric Unit Components With Torque Specifications
G05973628Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
