Front Combination Lamp RH Connector End View (E28)

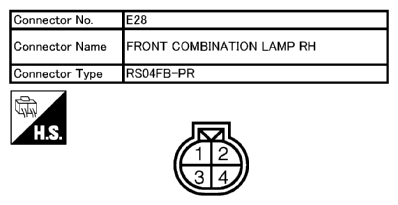

Fig 1: Front Combination Lamp RH Connector End View (E28)
Courtesy of NISSAN NORTH AMERICA, INC.
