Exploded View

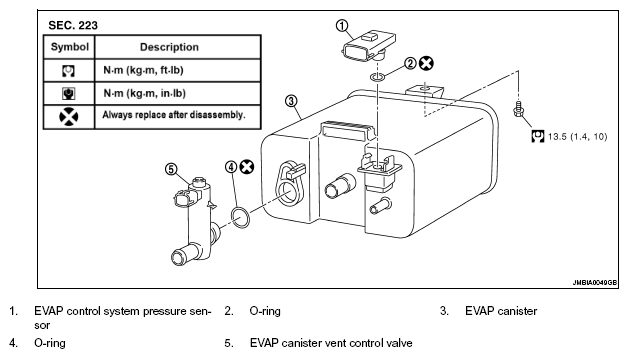

Fig 1: Exploded View Of EVAP Canister
G05979278Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "CONTENTS " for symbols not described on the above.
