MODELS WITHOUT DISTANCE CONTROL ASSIST SYSTEM : Exploded View

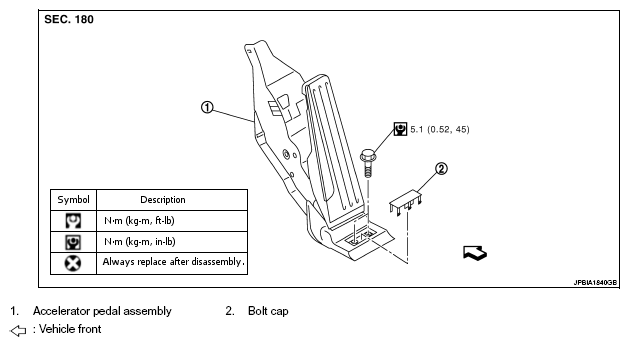

Fig 1: Identifying Accelerator Pedal Assembly And Bolt Cap
G05983802Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
