Symptom Table

The diagnostics item numbers show the sequence for inspection. Inspect in order from item 1.

CAUTION: If any malfunction occurs in the RE7R01A transmission, replace the A/T assembly.

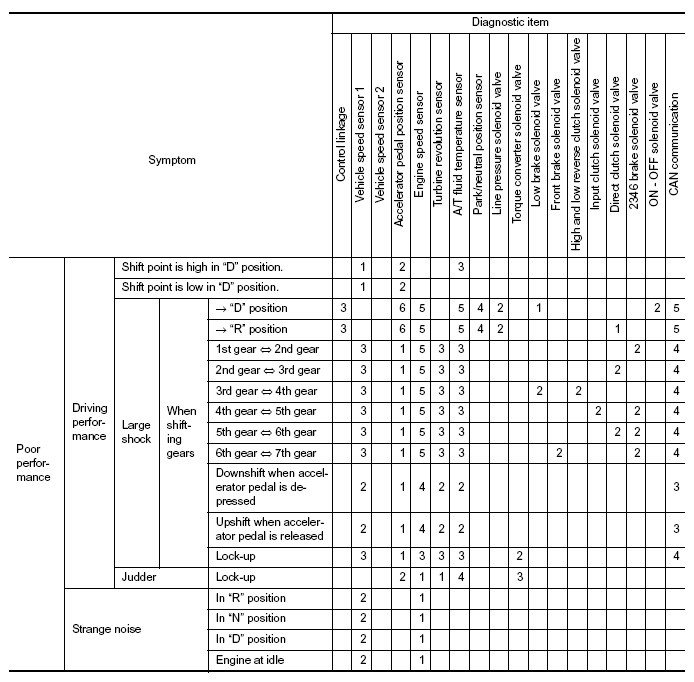

Fig 1: Symptom Chart (1 Of 5)

G05980341

Courtesy of NISSAN MOTOR CO., U.S.A.

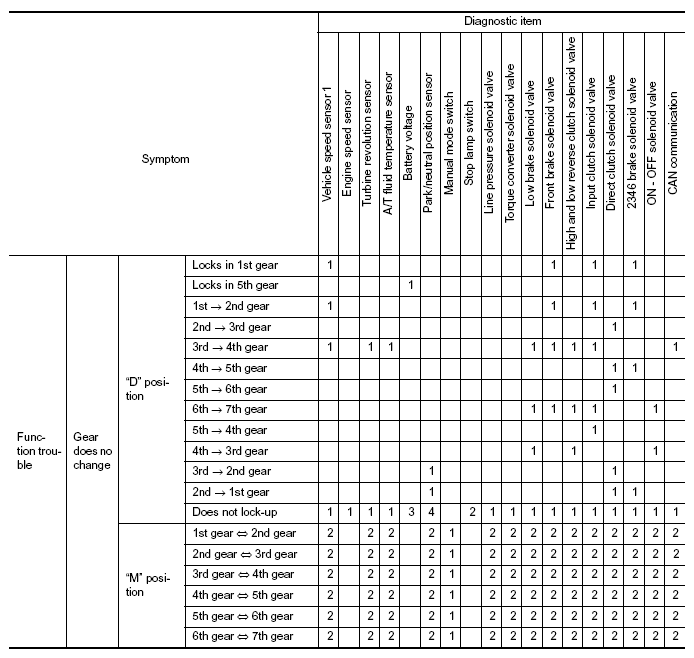

Fig 2: Symptom Chart (2 Of 5)

G05980342

Courtesy of NISSAN MOTOR CO., U.S.A.

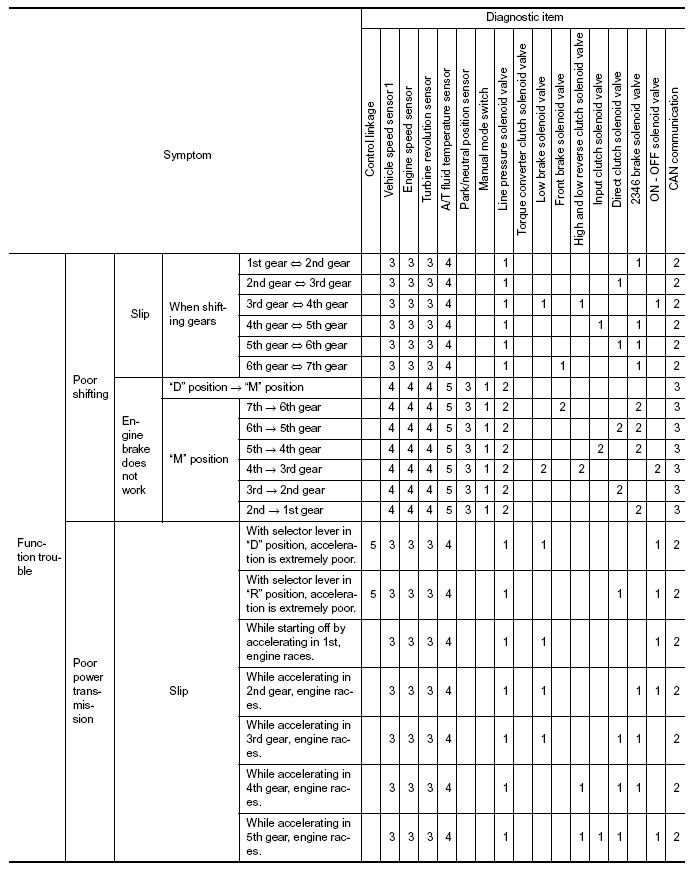

Fig 3: Symptom Chart (3 Of 5)

G05980343

Courtesy of NISSAN MOTOR CO., U.S.A.

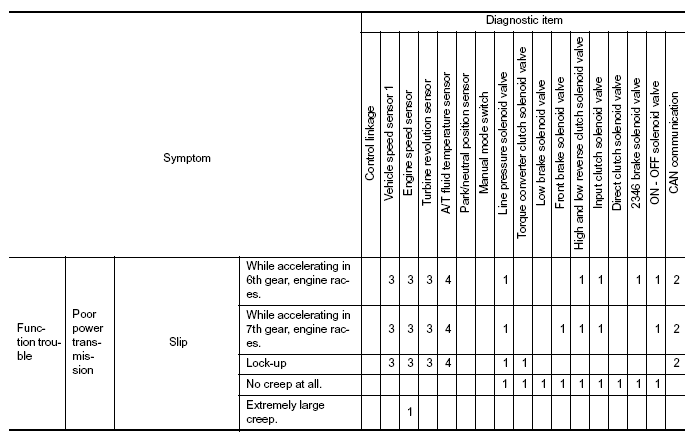

Fig 4: Symptom Chart (4 Of 5)

G05980344

Courtesy of NISSAN MOTOR CO., U.S.A.

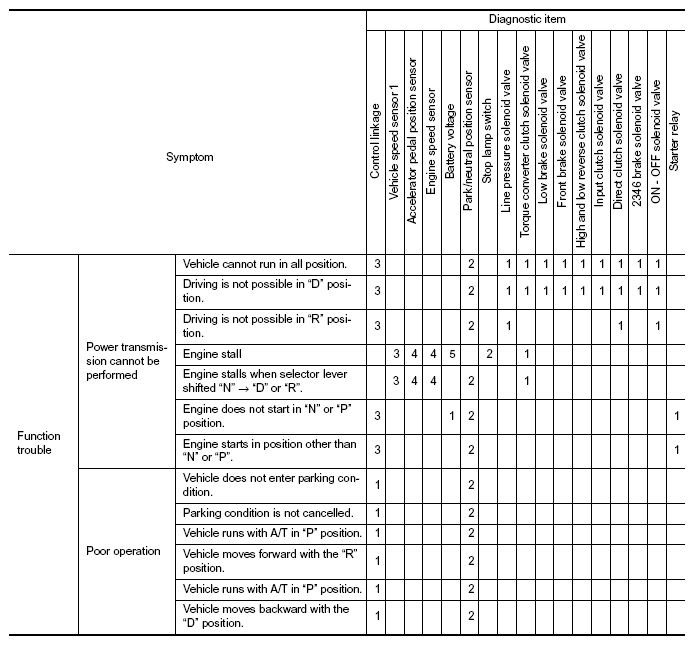

Fig 5: Symptom Chart (5 Of 5)

G05980345

Courtesy of NISSAN MOTOR CO., U.S.A.
