Component Parts Location

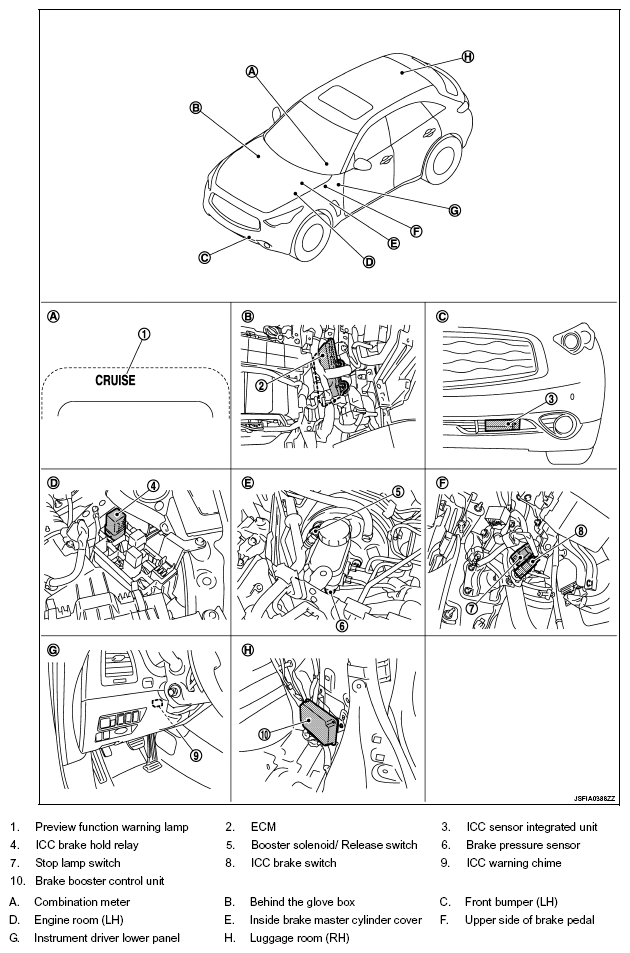

Fig 1: Identifying Preview Component Parts Location
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
The preview function warning lamp shares the ICC system warning lamp.
Courtesy of NISSAN MOTOR CO., U.S.A.
