Exploded View

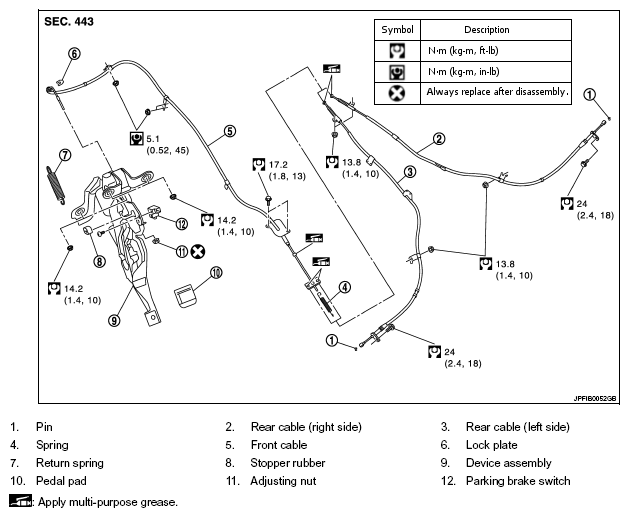

Fig 1: Exploded View Of Parking Brake Control Components With Torque Specifications
G05984405Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.
