Exploded View

CAUTION: Always perform the laser beam aiming adjustment and check the operation after the replacement, removal and installation of ICC sensor integrated unit.

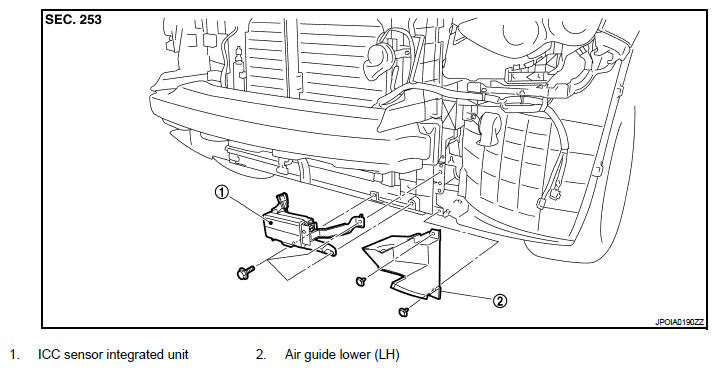

Fig 1: Identifying ICC Sensor Integrated Unit And Air Guide Lower (LH)
G05976432Courtesy of NISSAN MOTOR CO., U.S.A.
