Oil Pump: Assembly

  1. Install O-ring to oil pump cover.
    Fig 1: Identifying Oil Pump Cover O-Ring
    G04876096Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install O-ring to oil pump housing.
    Fig 2: Locating Oil Pump Housing O-Ring
    G04876095Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Using the drift, install oil pump housing oil seal to the oil pump housing until it is flush.
    CAUTION:
    • Never reuse oil seal.
    • Apply ATF to oil seal.
      Fig 3: Tapping Oil Pump Housing Oil Seal
      G04876099Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install oil pump housing to oil pump cover.
  5. Tighten bolts (<==) to the specified torque in numerical order shown in the figure after temporarily tightening them.

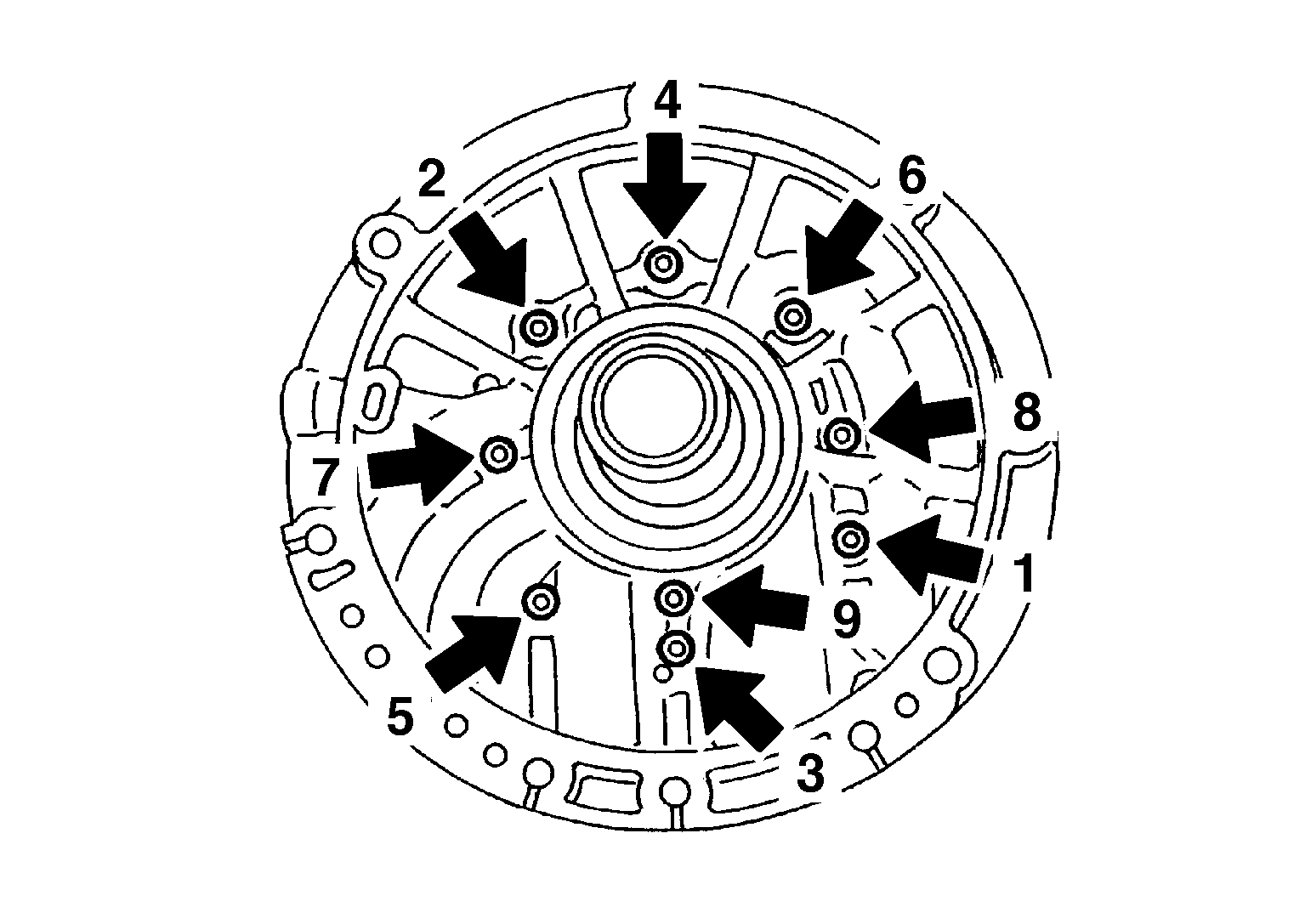

    Fig 4: Locating Oil Pump Housing Bolts
    G05218916Courtesy of NISSAN MOTOR CO., U.S.A.
