Repair and Diagnosis
>>
Steering
>>
Steering Control Systems
>>
Power Steering Control System
>>
Function Diagnosis
>>
EPS System
>>
System Diagram
>>
Cross-Sectional View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Cross-Sectional View

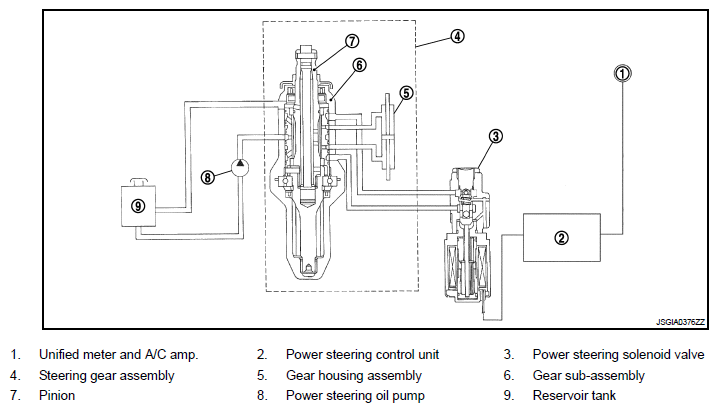

Fig 1: EPS System Cross-Sectional View
Courtesy of NISSAN MOTOR CO., U.S.A.
