AWD : Exploded View: Disassembly

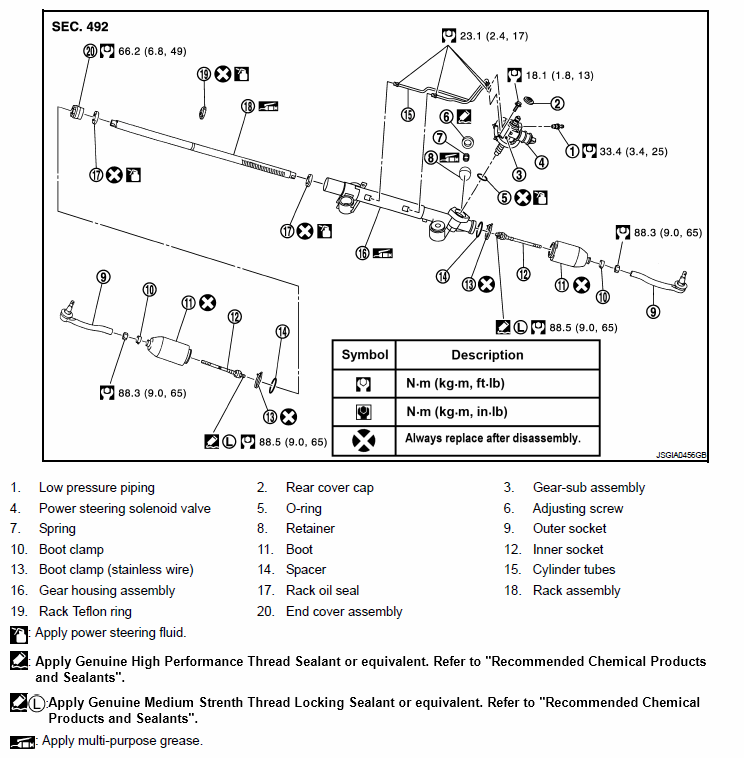

Fig 1: Exploded View Of Steering Gear Assembly With Torque Specification
G06302670Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.
