Exploded View

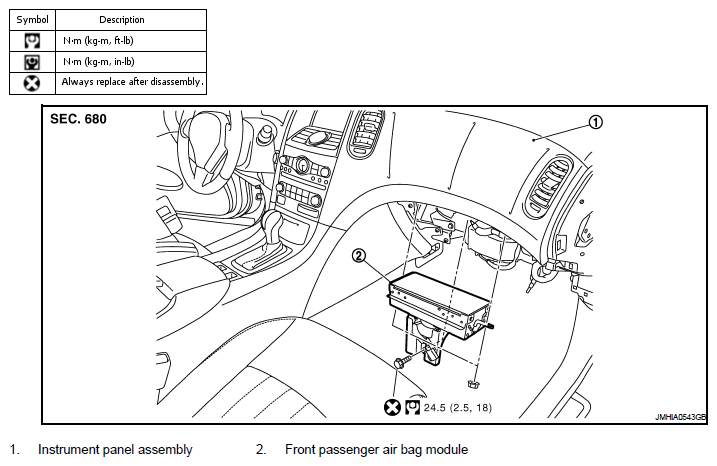

Fig 1: Instrument Panel Assembly And Front Passenger Air Bag Module With Torque Specifications
G06301340Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure
