Exploded View

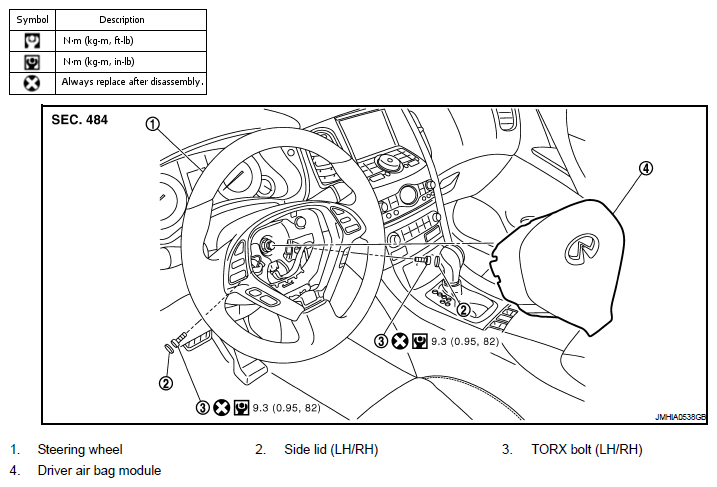

Fig 1: Exploded View Of Driver Air Bag Module, Steering Wheel And TORX Bolt With Torque Specifications
G06301329Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure
