CONSULT-III Function and System Application*1

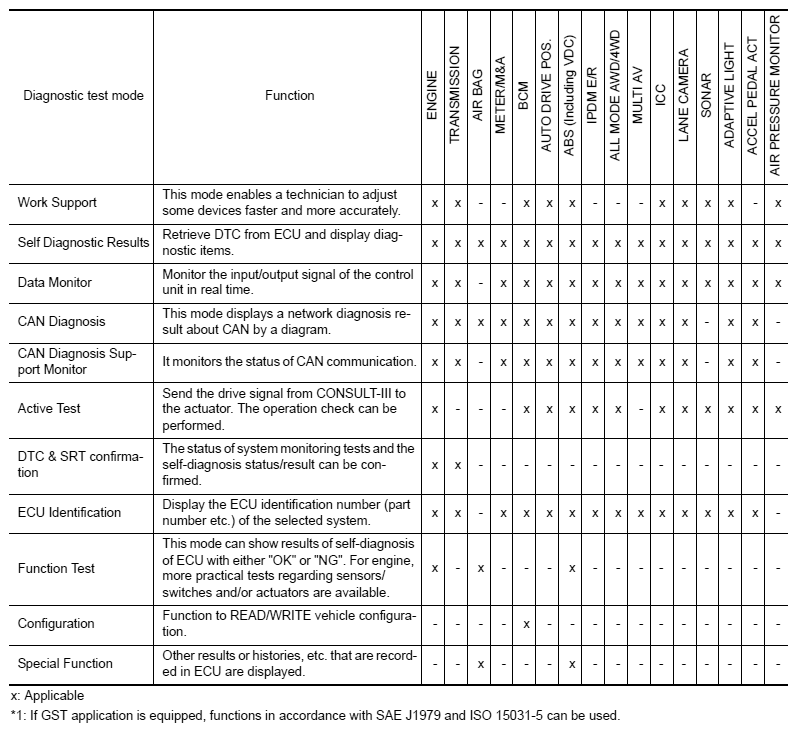

Fig 1: CONSULT-III Function And System Application - 1

Courtesy of NISSAN MOTOR CO., U.S.A.

x: Applicable

*1: If GST application is equipped, functions in accordance with SAE J1979 and ISO 15031-5 can be used.
