Removal and Installation: Removal

  1. Remove the front door finisher. Refer to "Driver Side : Removal And Installation ".
  2. Remove the front door glass. Refer to "REMOVAL AND INSTALLATION ".

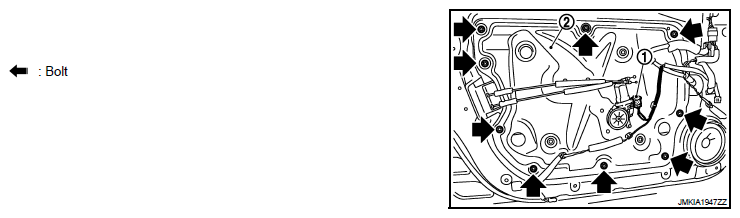

  3. Disconnect the power window motor harness connector (1) and remove the bolts from the module assembly (2).
    Fig 1: Locating Power Window Motor Harness Connector And Module Assembly Bolts
    G06302342Courtesy of NISSAN MOTOR CO., U.S.A.

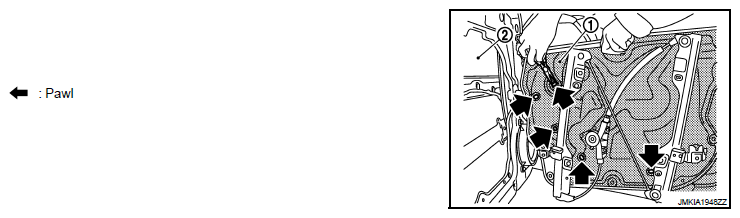

  4. Remove the module assembly (1) from the door panel (2) and then remove the harnesses fixing pawls with plier as shown in the Illustrator.
    Fig 2: Removing Module Assembly From Door Panel
    G06302343Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove the door module assembly from the door panel.
  6. Remove the front door glass run.
