Clutch And Band Chart

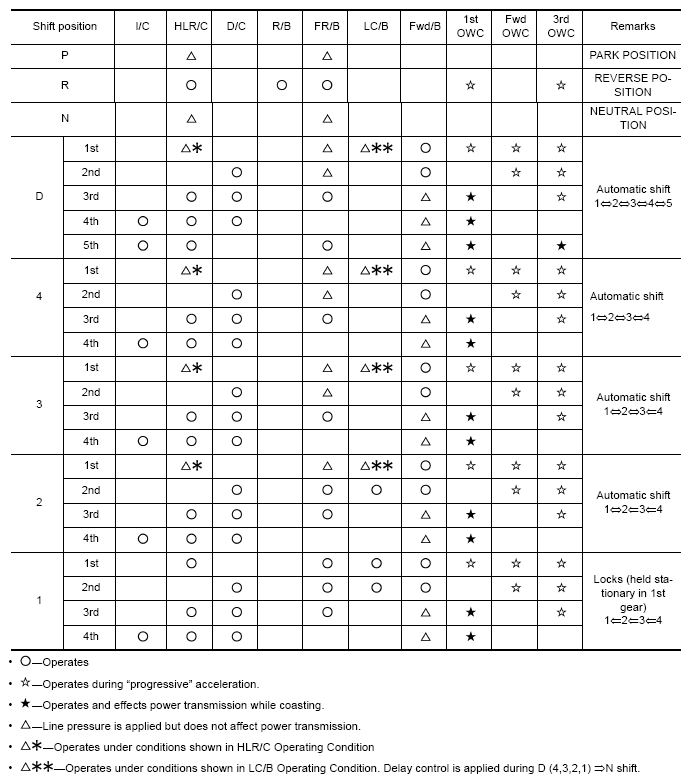

Fig 1: Clutch And Band Chart

G05743968

Fig 2: Vehicle Speed Graph

G04900894
