Diagnosis Procedure

1. Turn ignition switch OFF.
2. Disconnect intake valve timing control solenoid valve harness connector.

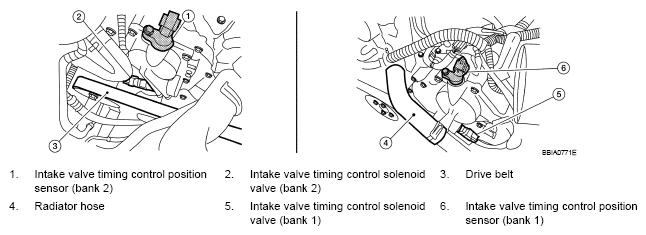

   Fig 1: Identifying Intake Valve Timing Control Solenoid Valve Harness Connector

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Turn ignition switch ON.
4. Check voltage between intake valve timing control solenoid valve terminal 2 and ground with CONSULT-III or tester.

   Voltage: Battery voltage

OK or NG

OK: GO TO  3.

NG: GO TO 2.

Fig 2: Checking Voltage Between Intake Valve Timing Control Solenoid Valve Terminal 2 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

Check the following.

• Harness connectors E2, F32
• IPDM E/R harness connector E119
• Harness for open or short between intake valve timing control solenoid valve and IPDM E/R

Repair open circuit or short to ground or short to power in harness or connectors.

1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between the following;

   ECM terminal 10 and intake valve timing control solenoid valve (Bank 1) terminal 1 or

   ECM terminal 11 and intake valve timing control solenoid valve (Bank 2) terminal 1.

   Refer to WIRING DIAGRAM .

   Continuity should exist.

4. Also check harness for short to ground and short to power.

OK or NG

OK: GO TO 4.

NG: Repair open circuit or short to ground or short to power in harness or connectors.

Refer to "COMPONENT INSPECTION ".

OK or NG

OK: GO TO 5.

NG: Replace malfunctioning intake valve timing control solenoid valve. Refer to INTAKE VALVE TIMING CONTROL .

Refer to "HOW TO CHECK TERMINAL " and "INTERMITTENT INCIDENT ".

INSPECTION END
