Wiring Diagram - ENGINE CONTROL SYSTEM -
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Wiring Diagram - ENGINE CONTROL SYSTEM -

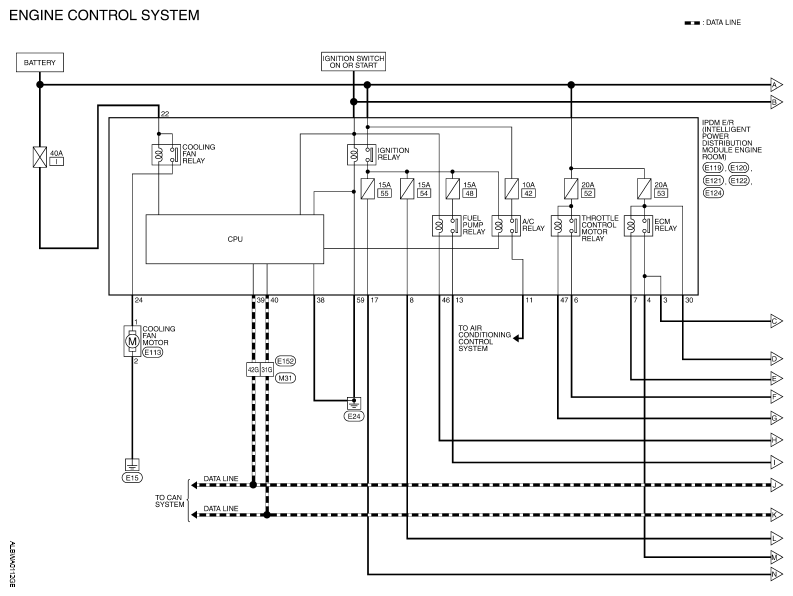

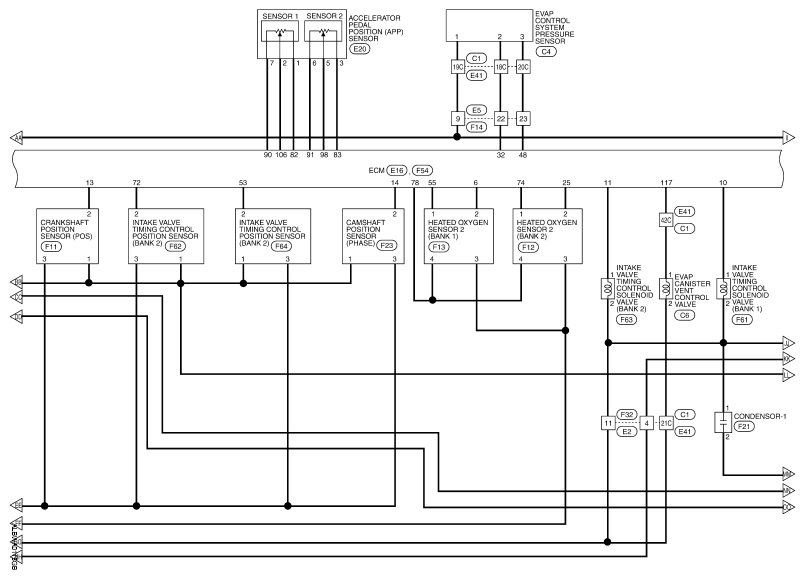

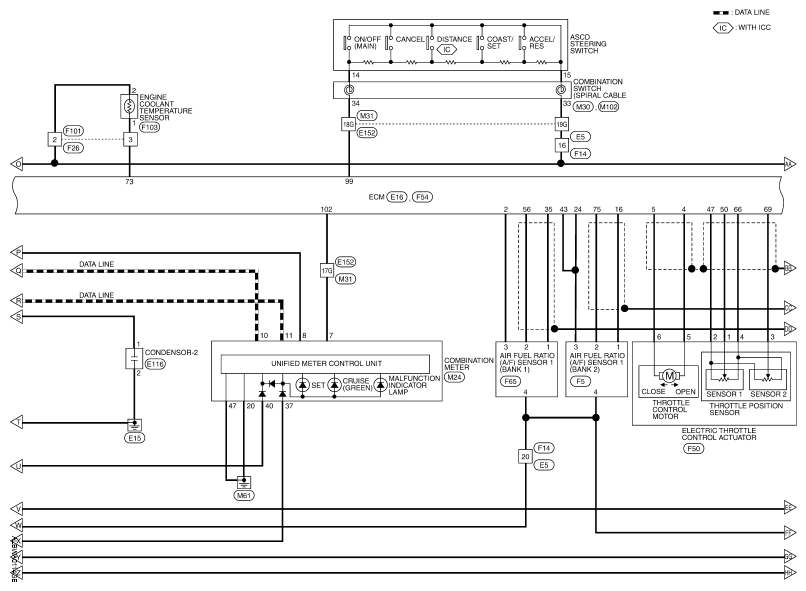

Fig 1: Engine Control System - Wiring Diagram (1 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

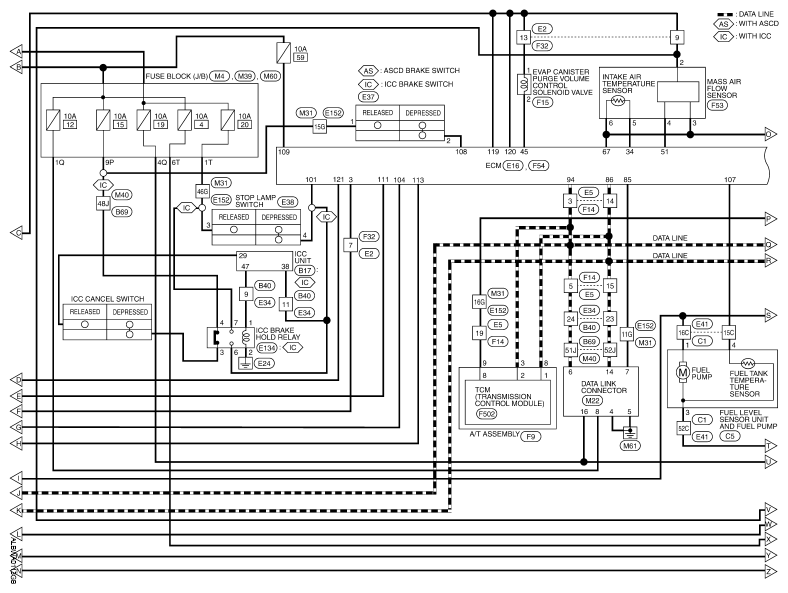

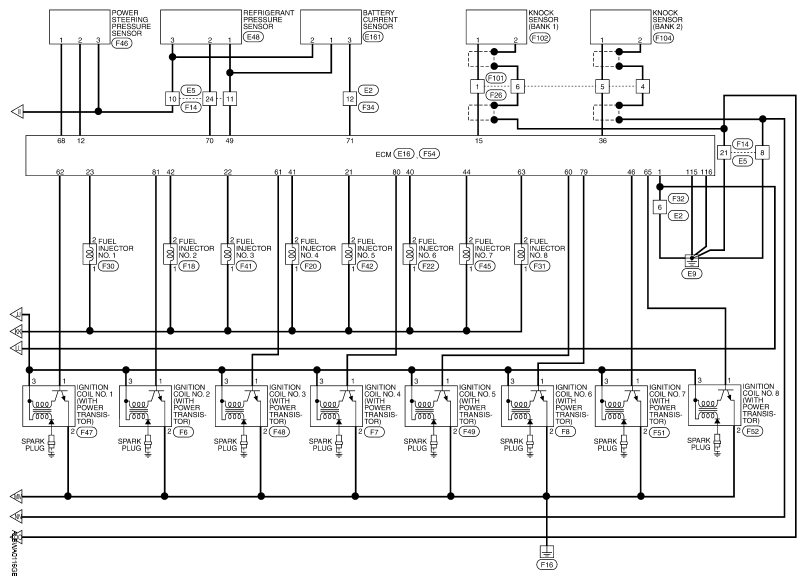

Fig 2: Engine Control System - Wiring Diagram (2 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Engine Control System - Wiring Diagram (3 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: Engine Control System - Wiring Diagram (4 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 5: Engine Control System - Wiring Diagram (5 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

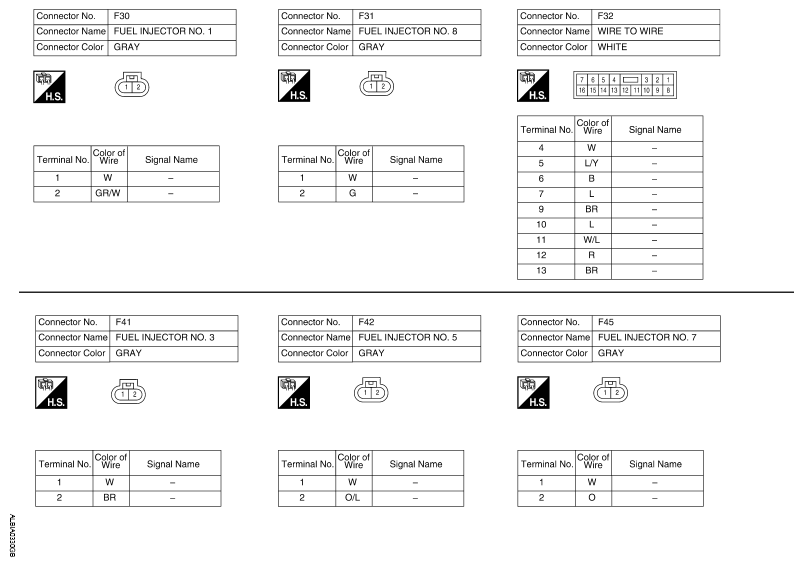

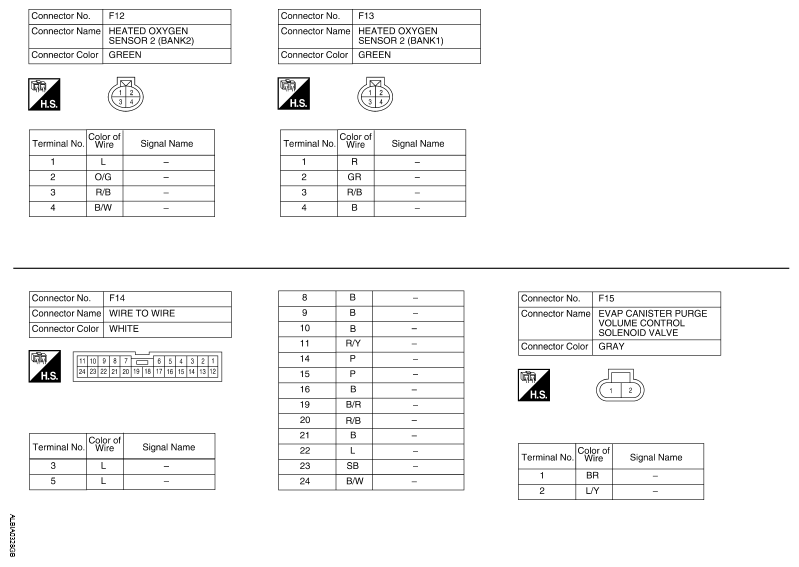

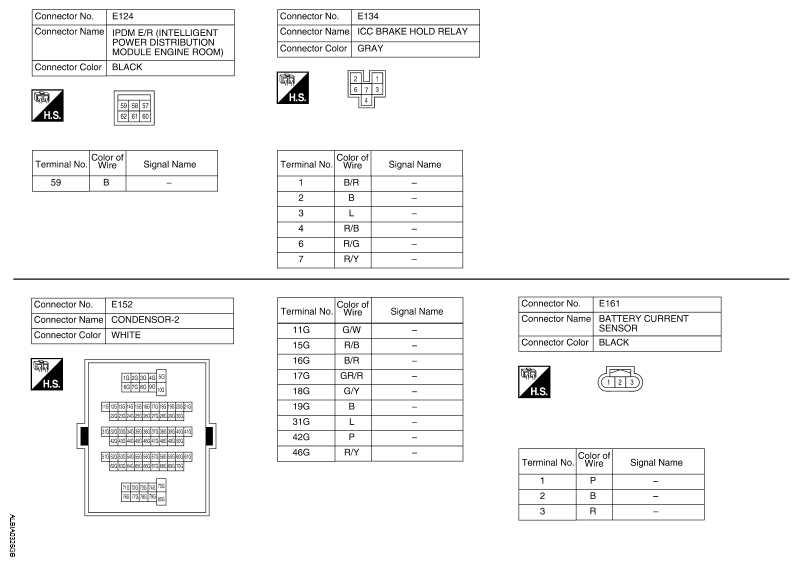

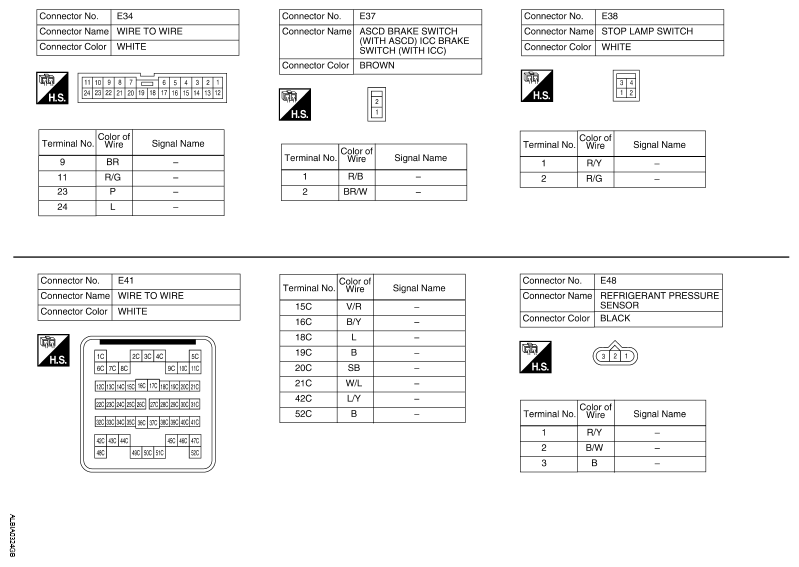

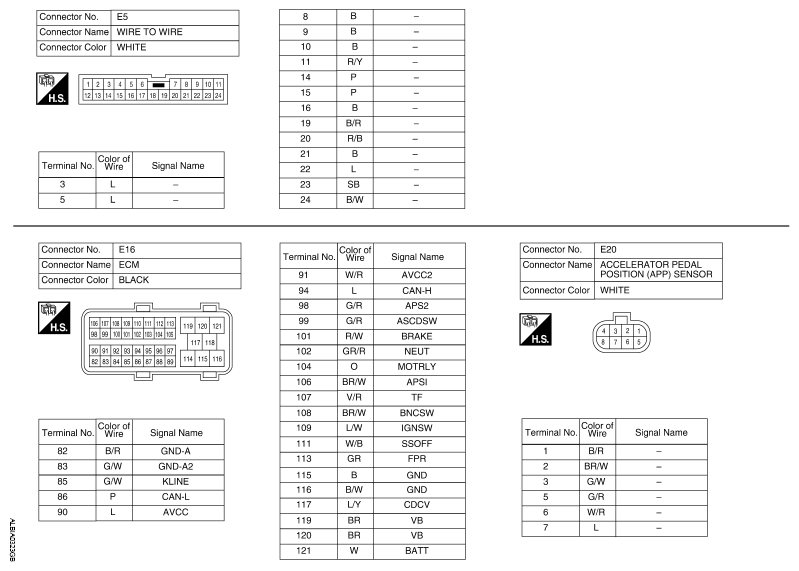

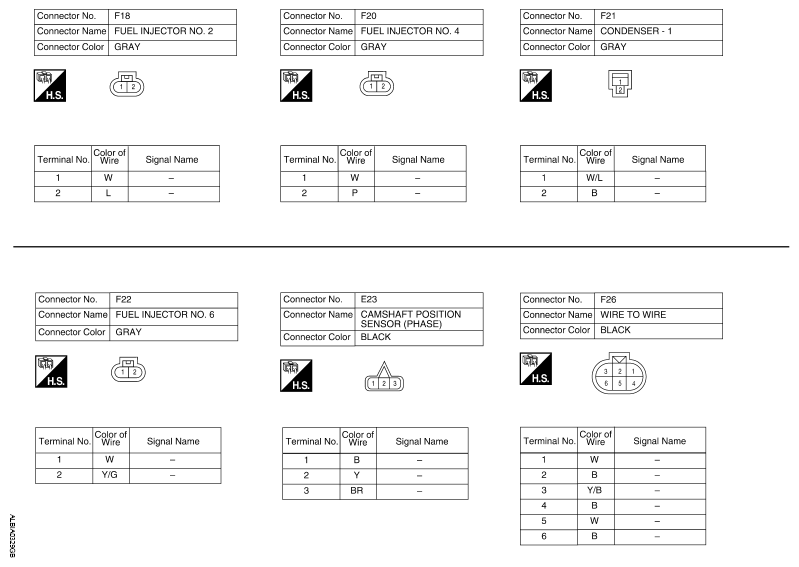

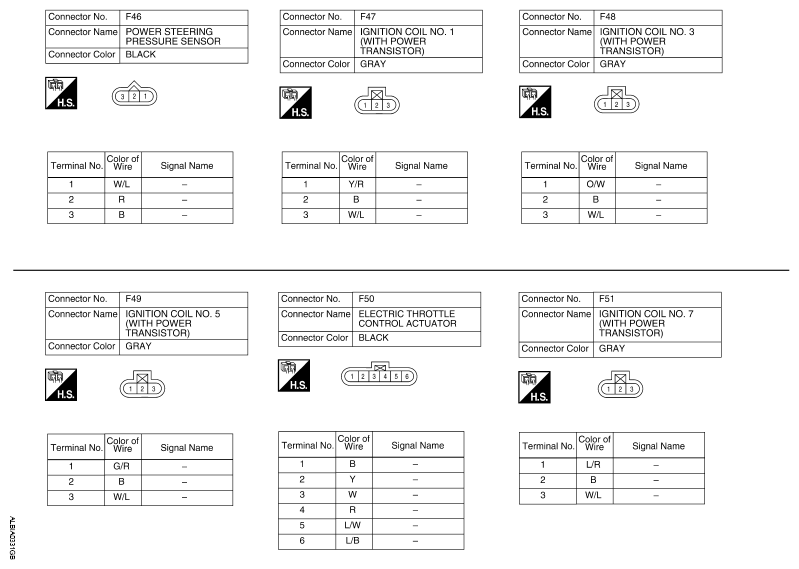

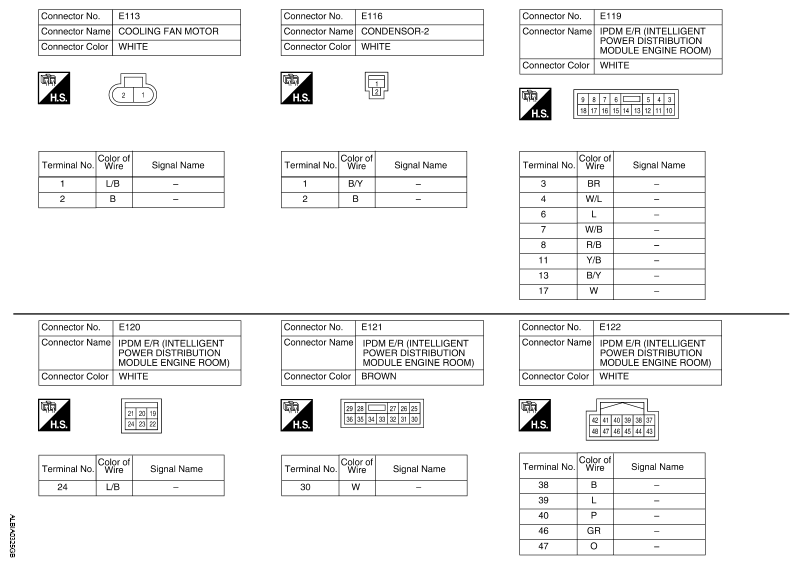

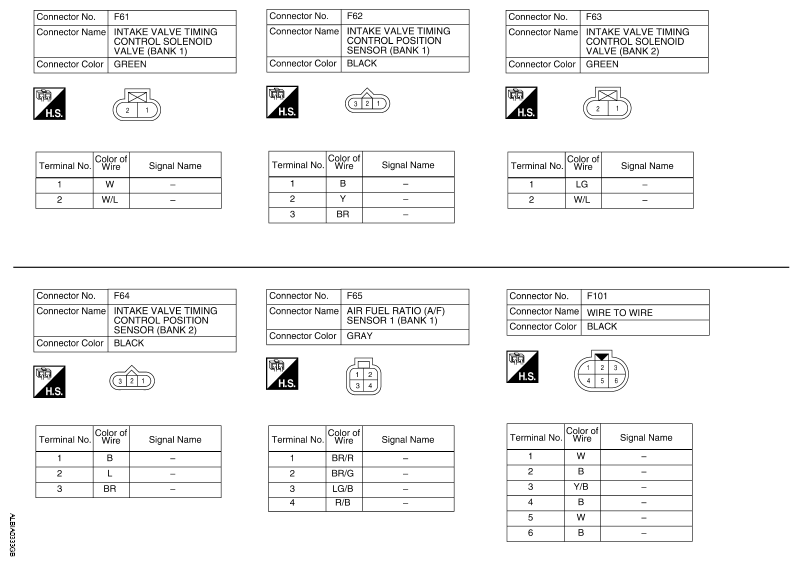

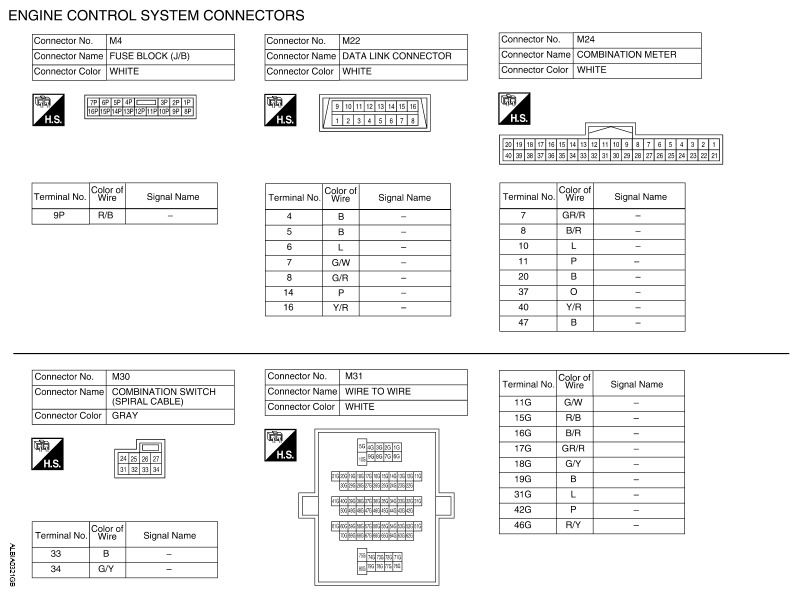

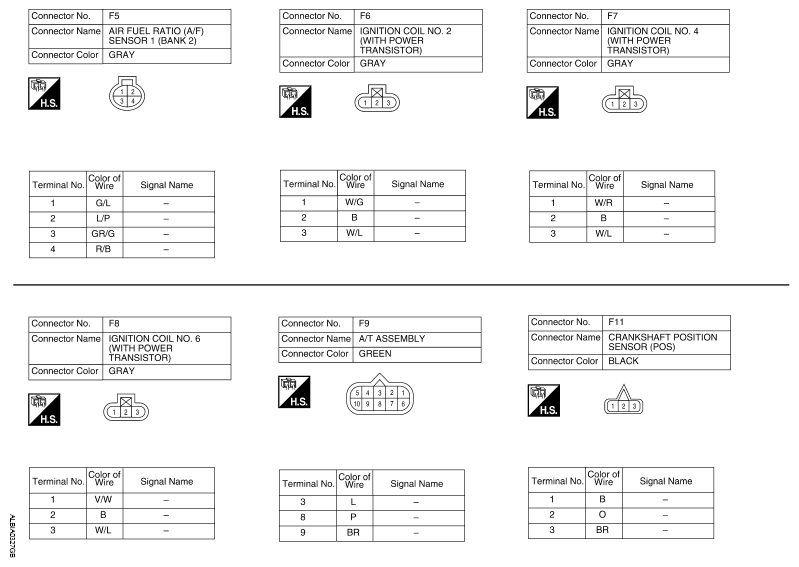

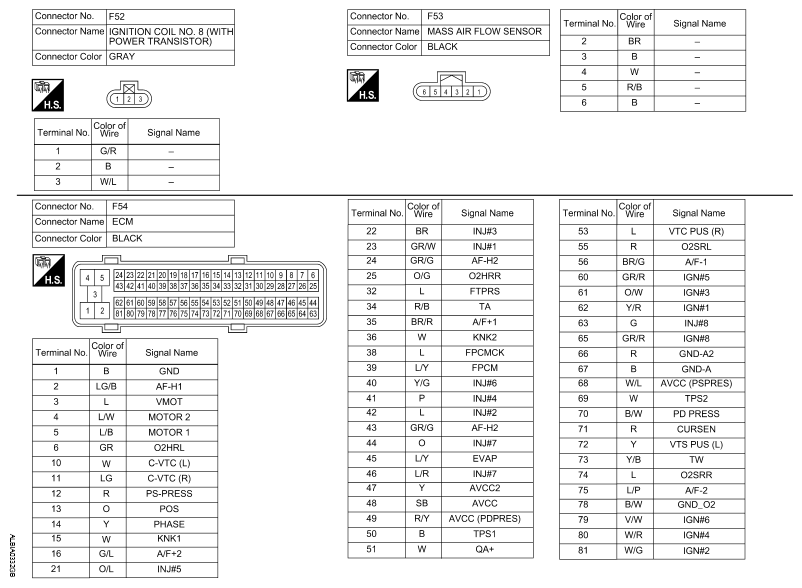

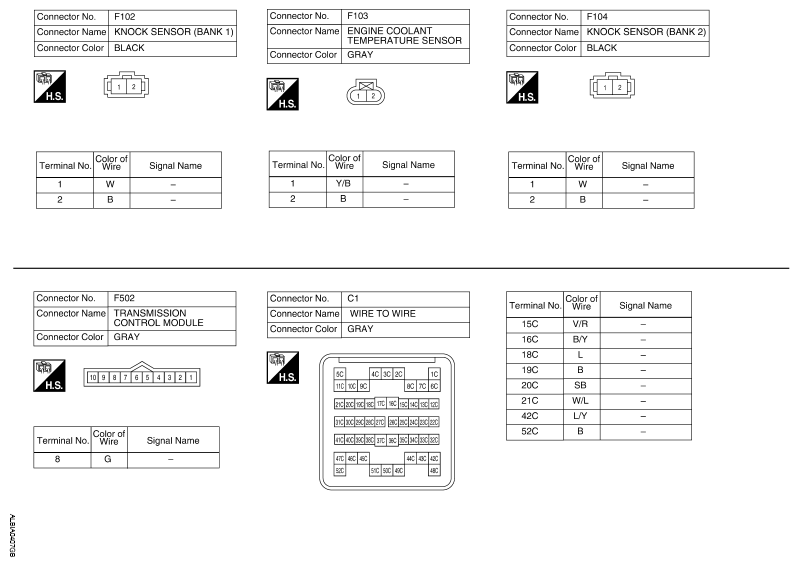

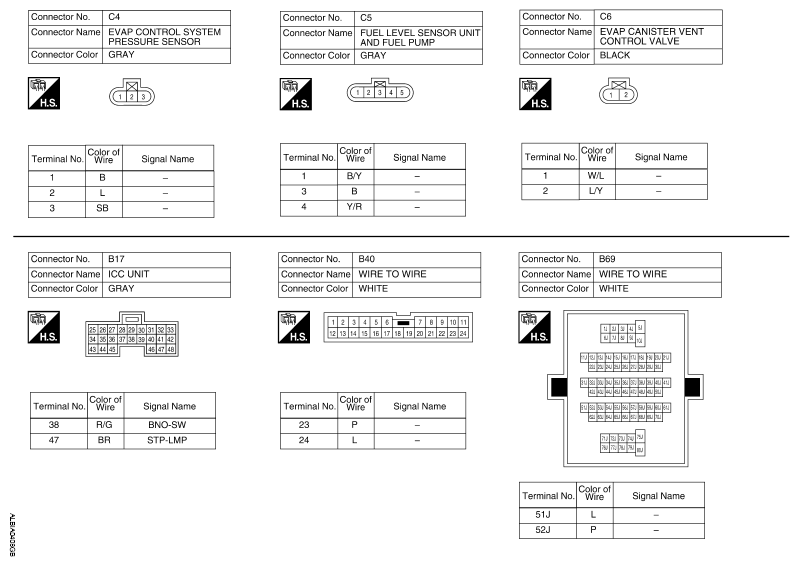

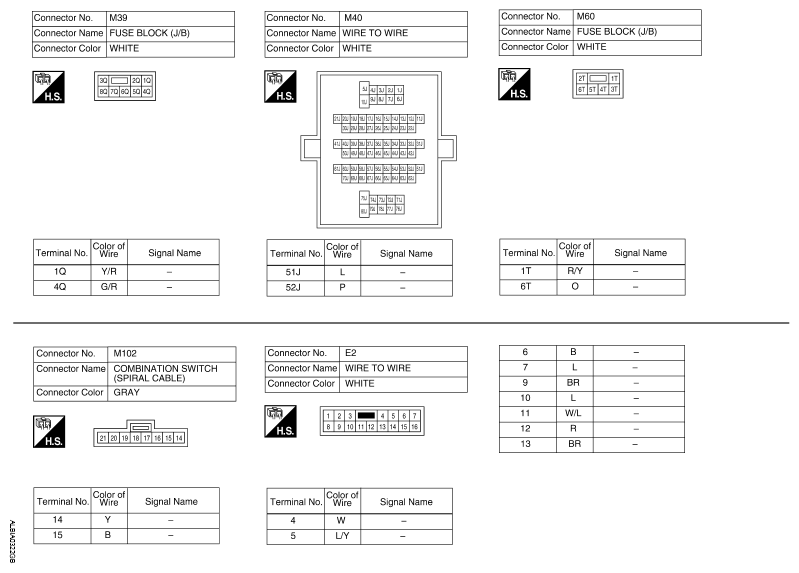

Fig 6: Identifying Engine Control System Connectors (1 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 7: Identifying Engine Control System Connectors (2 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 8: Identifying Engine Control System Connectors (3 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 9: Identifying Engine Control System Connectors (4 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 10: Identifying Engine Control System Connectors (5 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 11: Identifying Engine Control System Connectors (6 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 12: Identifying Engine Control System Connectors (7 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 13: Identifying Engine Control System Connectors (8 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 14: Identifying Engine Control System Connectors (9 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 15: Identifying Engine Control System Connectors (10 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 16: Identifying Engine Control System Connectors (11 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 17: Identifying Engine Control System Connectors (12 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 18: Identifying Engine Control System Connectors (13 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 19: Identifying Engine Control System Connectors (14 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 20: Identifying Engine Control System Connectors (15 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.
