Removal and Installation: Components

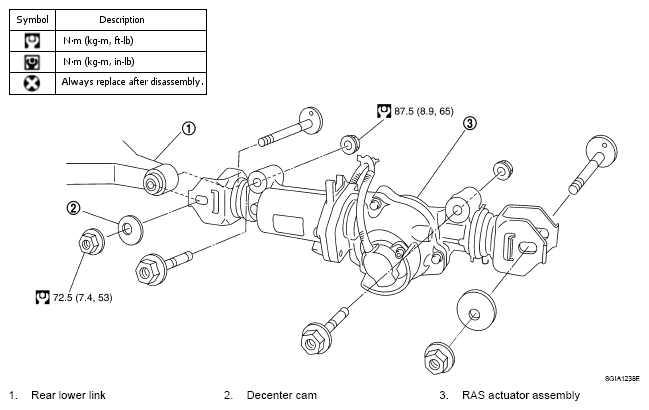

Fig 1: Rear Active Steer Replacement Components With Torque Specifications
G05211985Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to CONTENTS for symbols in the figure.
