System - Engine Mechanical & Other

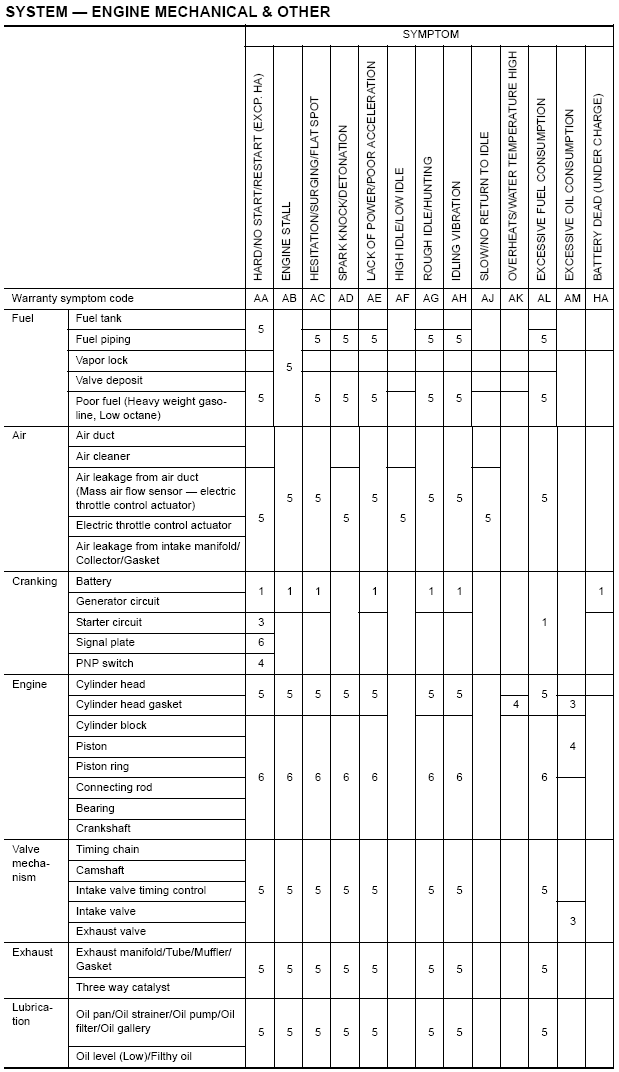

Fig 1: Engine Mechanical And Other Symptom Matrix Chart (1 Of 2)
G05210363Courtesy of NISSAN MOTOR CO., U.S.A.

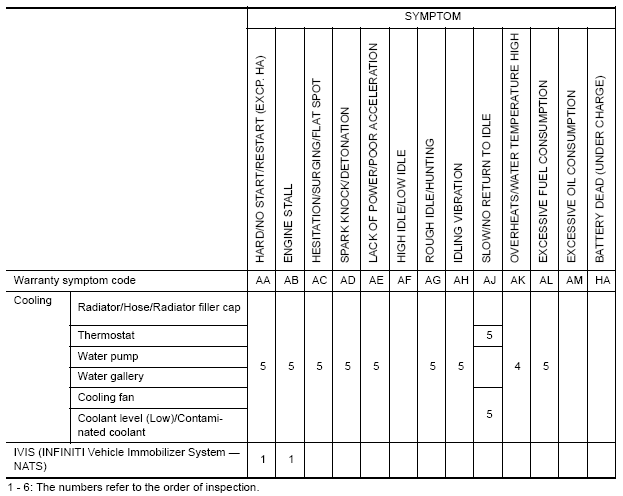

Fig 2: Engine Mechanical And Other Symptom Matrix Chart (2 Of 2)
G05210364Courtesy of NISSAN MOTOR CO., U.S.A.
