WITHOUT ELECTRIC MOTOR : Exploded View

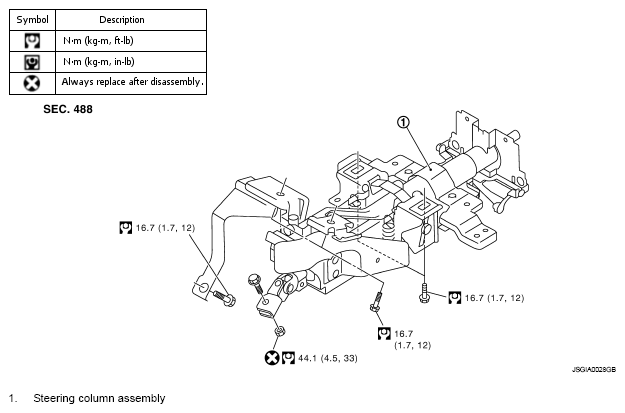

Fig 1: Steering Column Without Electric Motor With Torque Specifications
G05735147Courtesy of NISSAN MOTOR CO., U.S.A.
