Exploded View

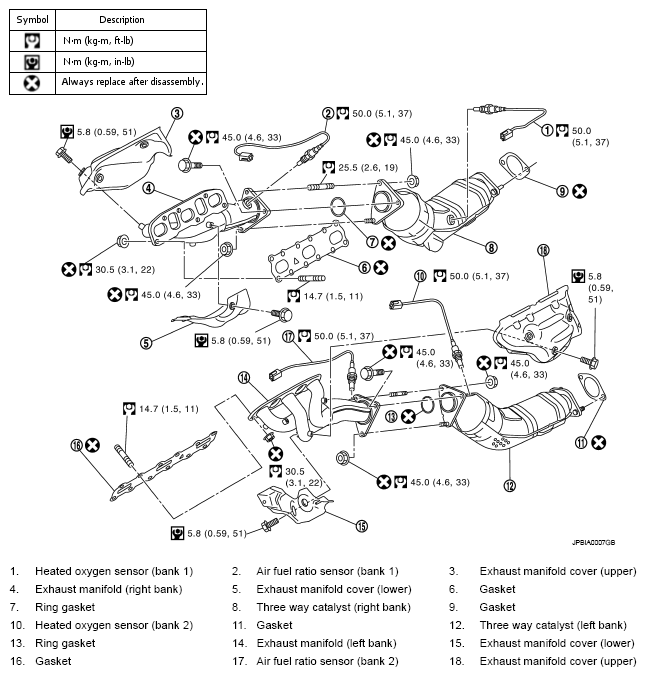

Fig 1: Exploded View Of Exhaust Manifold With Torque Specifications
G05207204Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbol marks in the figure.
