Trunk Lid Lock Assembly Connector End View (B303)

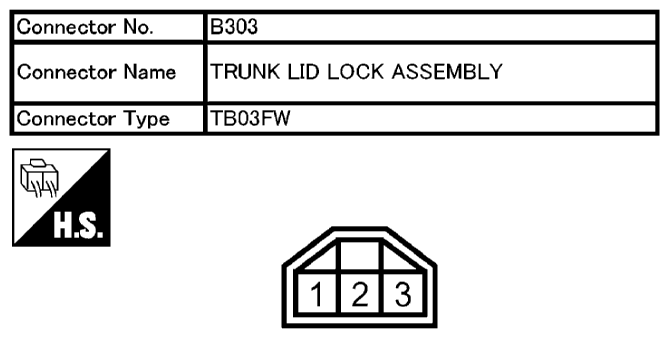

Fig 1: Trunk Lid Lock Assembly Connector End View (B303)
G10628352Courtesy of NISSAN NORTH AMERICA, INC.
