Inspection and Adjustment: Notes
Inspection after Removal
Check the regulator assembly for the following items. If a malfunction is detected, replace or grease it.
- Gear wear
- Regulator deformation
- Grease condition for each sliding part

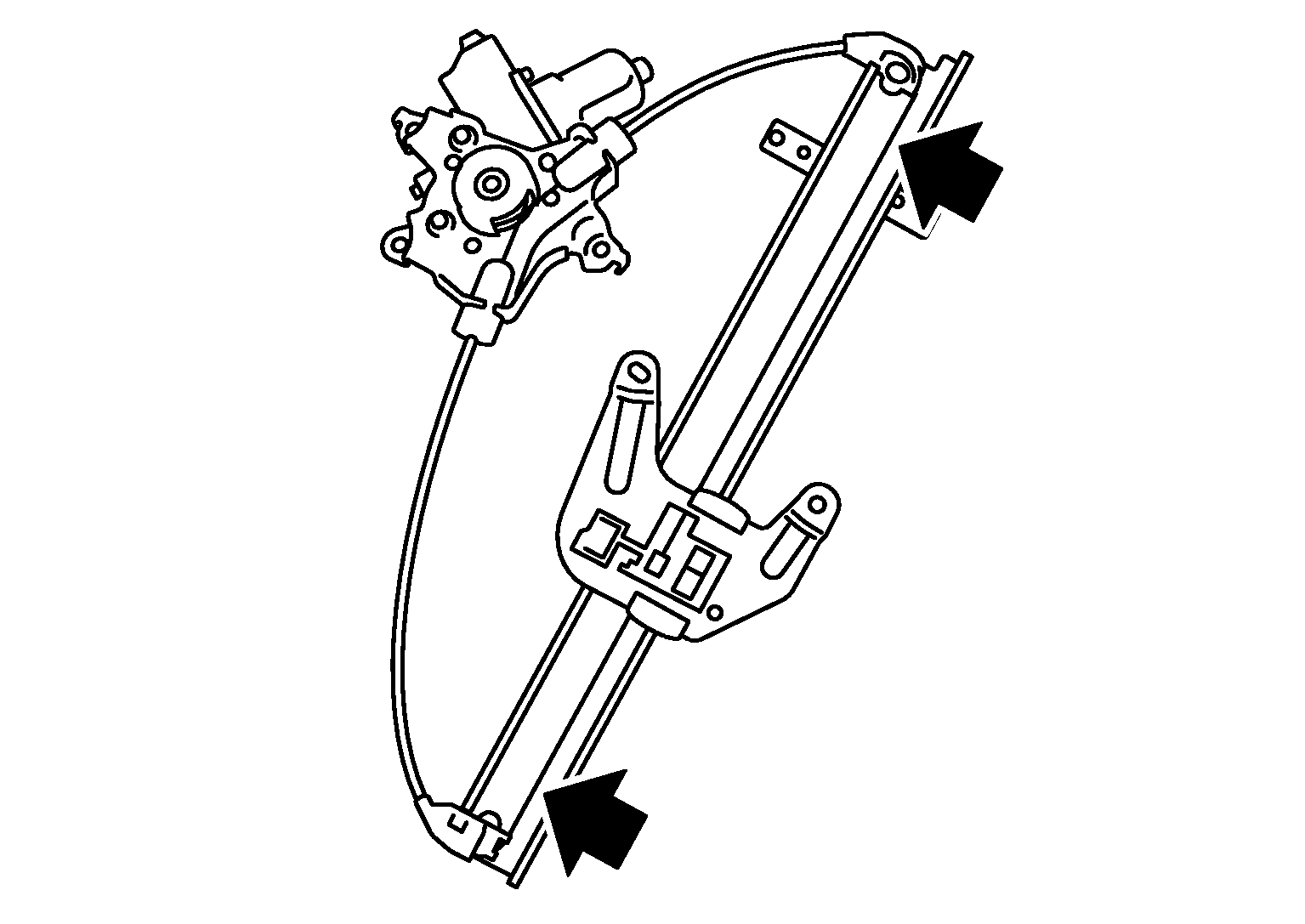

The arrows in the figure show the application points of the multi-purpose grease.
