Removal and Installation: Removal

  1. Remove the front door finisher. Refer to REMOVAL AND INSTALLATION .
  2. Remove the front door glass. Refer to REMOVAL AND INSTALLATION  .
  3. Disconnect the power window motor harness connector (1) and remove the bolts from the module assembly (2).

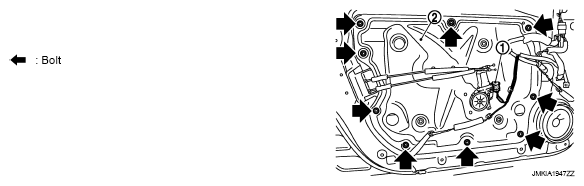

    Fig 1: Locating Power Window Motor Harness Connector & Bolts
    G05729952Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove the module assembly (1) from the door panel (2) and then remove the harnesses fixing pawls with plier as shown in the figure.

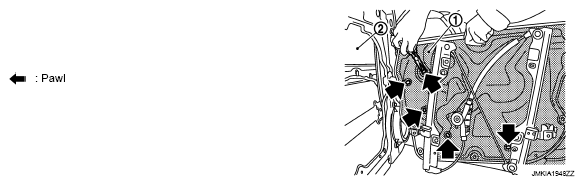

    Fig 2: Locating Harnesses Fixing Pawls
    G05729953Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove the door module assembly from the door panel.
  6. Remove the front door glass run.
