Oil Channel

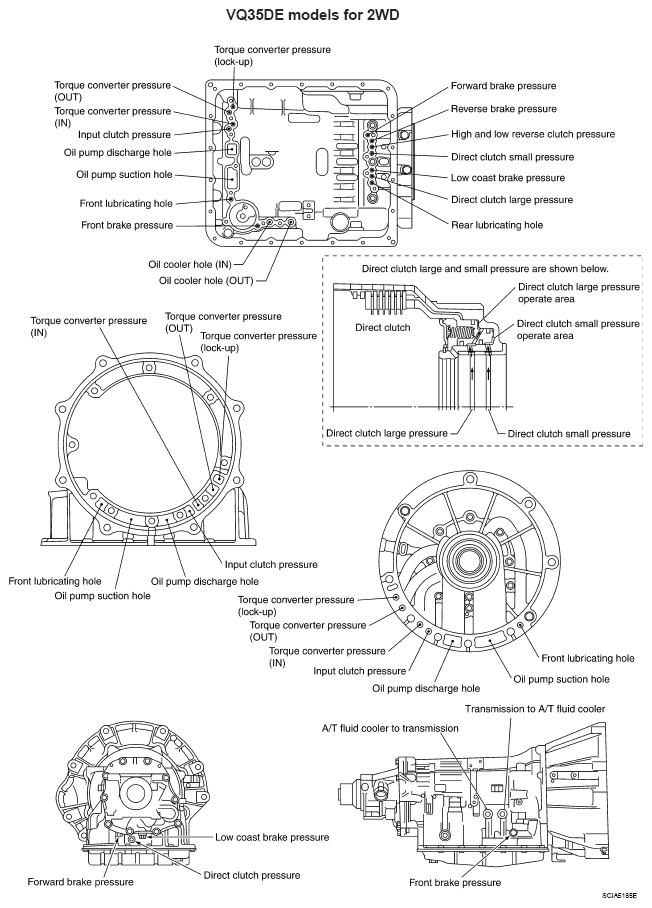

Fig 1: Exploded View Of Oil Channel Components (VQ35DE Models For 2WD)
G05213507

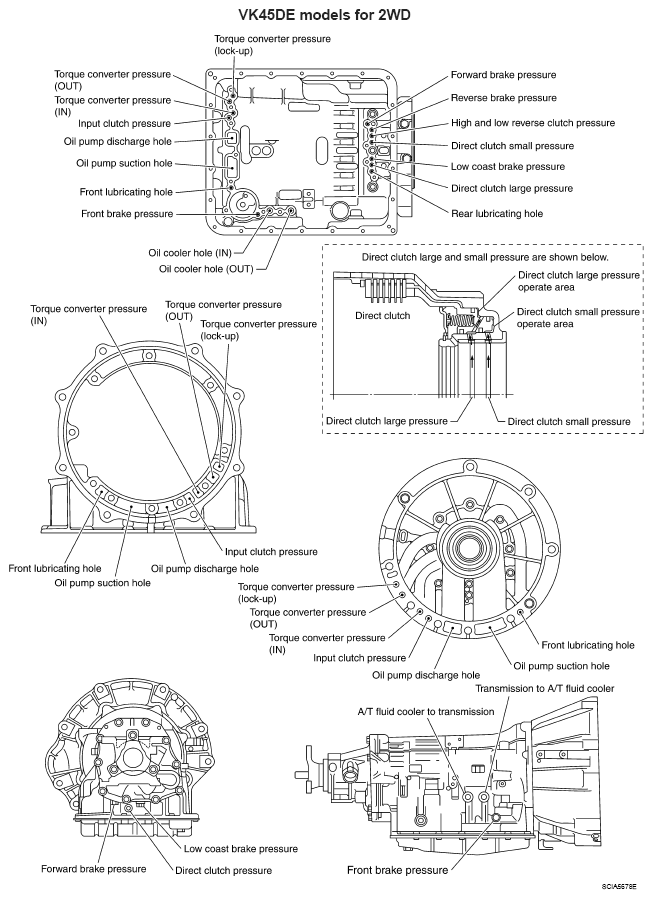

Fig 2: Exploded View Of Oil Channel Components (VK45DE Models For 2WD)
G05213508

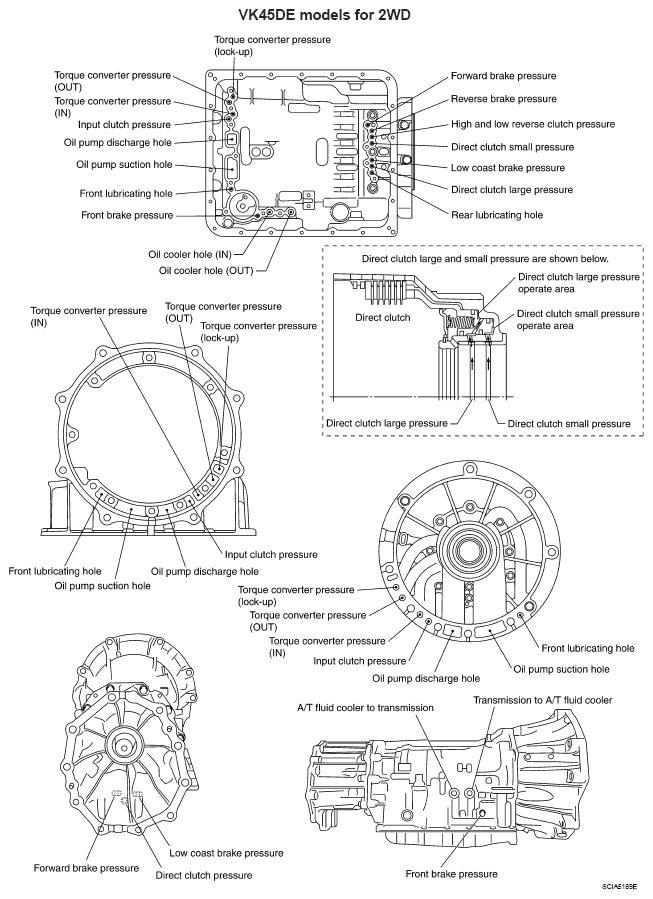

Fig 3: Exploded View Of Oil Channel Components
G05213509
