Home >> Infiniti >> 2007 >> M35 Base >> Repair and Diagnosis >> Body & Frame >> Seats >> Heated Seat >> Schematic

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Heated Seat: Schematic

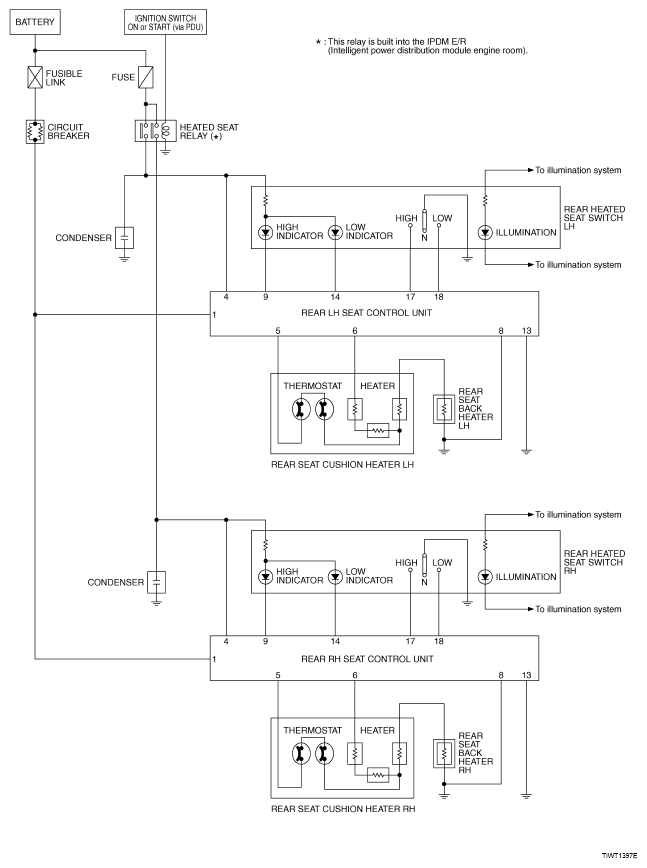

Fig 1: Heated Seat - Schematic Diagram

G05213081
